creaImageIO::WxDescriptorPanel Class Reference
Top level graphical user interfaces

#include <creaImageIOWxDescriptorPanel.h>

Inheritance diagram for creaImageIO::WxDescriptorPanel:
Inheritance graph
[legend]
Collaboration diagram for creaImageIO::WxDescriptorPanel:
Collaboration graph
[legend]

Public Member Functions

 WxDescriptorPanel ()

 WxDescriptorPanel (wxWindow *parent, const std::string path)

 ~WxDescriptorPanel ()
 Destructor. More...

const std::string & GetDescriptor ()


Private Member Functions

void OnAddAttribute (wxCommandEvent &event)
 Add an attribute (DICOM or own) More...

void onAddAttribute (const std::string &att, const std::string &name_att, std::string level="")
 Add an attribute (DICOM or own) More...

void OnAddLevel (wxCommandEvent &event)
 Add a Level. More...

void onAddLevel (const std::string &level)
 Add a Level. More...

void OnDicomAttribute (wxCommandEvent &event)
 Find a DICOM attribute from group and element values. More...

void OnRemove (wxCommandEvent &event)
 Remove a value (level or attribute) More...

void OnNew (wxCommandEvent &event)
 Create a new descriptor. More...

void OnLoad (wxCommandEvent &event)
 Load an exsitant descriptor. More...

void OnOK (wxCommandEvent &event)
 Save a descriptor. More...

void OnApply (wxCommandEvent &event)
 Save a descriptor and use it. More...

void OnCancel (wxCommandEvent &event)
 Cancel. More...

void CreateDescriptor (int type)
 Create a descriptor structure. More...

bool addLevel (const std::string &name)
 add a level More...

bool addAtribute (const std::string &level, const std::string &name)
 add an attribute More...

bool RemoveAttribute (const std::string &level, const std::string &name)
 remove an attribute More...

bool RemoveLevel (const std::string &name)
 remove a level More...

void createDescriptorFile ()
 Create a descriptor file. More...

void loadDescriptor (const std::string i_name)
 load a descriptor file More...

std::string findLevel ()
 find a level'name More...

std::string OwnAttribute (const std::string name)
 determine values for own attributes More...

const std::string saveDescriptor ()
 save a descriptor in a file More...


Private Attributes

wxTextCtrl * LevelCtrl

wxTextCtrl * GRCtrl

wxTextCtrl * ELCtrl

wxTextCtrl * ResultCtrl

wxComboBox * AttributeCombo

int lv
 number of level More...

long InsertPt
 Insert point in result control. More...

std::string m_DscpFile
 Output file for Descriptor. More...

std::string outDscp
 Output Descriptor. More...

std::vector< std::string > VLevel

std::map< std::string,
std::vector< std::string > > 		DscpTree

std::map< std::string,
std::string > 		ownatt

std::map< int, std::string > lvlist

std::string m_path


Detailed Description

Gimmick DB are based on descriptors with a tree structure . Each level contains attributes (DICOM or other) to identify data WxDescriptorPanel allows creation, modification and save of descriptors.

Definition at line 66 of file creaImageIOWxDescriptorPanel.h.

Constructor & Destructor Documentation

creaImageIO::WxDescriptorPanel::WxDescriptorPanel ( )
creaImageIO::WxDescriptorPanel::WxDescriptorPanel ( wxWindow *  parent,
const std::string  path
)

fix warning: unused variable line1

fix warning: unused variable LevelText

fix warning: unused variable line2

fix warning: unused variable GR

fix warning: unused variable EL

fix warning: unused variable line3

fix warning: unused variable line4

fix warning: unused variable Cancel

Definition at line 47 of file creaImageIOWxDescriptorPanel.cpp.

References addLevel(), AttributeCombo, CreateDescriptor(), ELCtrl, GimmickDebugMessage, GRCtrl, ID_ATTRIBUTE_ADD, ID_ATTRIBUTE_CTRL, ID_EL_CTRL, ID_GR_CTRL, ID_LEVEL_ADD, ID_REMOVE_ADD, LevelCtrl, lv, OnAddAttribute(), OnAddLevel(), OnApply(), OnDicomAttribute(), OnLoad(), OnNew(), OnOK(), OnRemove(), ownatt, and ResultCtrl.

48  : wxDialog(parent, -1,_T("Descriptor Creation"), wxDefaultPosition, wxSize(550,550)) , m_path(path)
49 {
50
51
52  GimmickDebugMessage(1,"WxDescriptorPanel::WxDescriptorPanel"
53  <<std::endl);
54
55  lv = 0;
56  ownatt["FullFileName"] = "Full_File_Name";
57  ownatt["FullFileDirectory"] = "Full_File_Directory";
58
59
60  // START BUTTONS
61  wxButton *NewDescriptor = new wxButton(this, -1,_T("Create a new descriptor"), wxPoint(10,7) );
62  Connect( NewDescriptor->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnNew );
63
64  wxButton *LoadDescriptor = new wxButton(this, -1,_T("Load a descriptor"), wxPoint(150,7) );
65  Connect( LoadDescriptor->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnLoad );
66
68  wxStaticLine *line1 = new wxStaticLine(this, -1, wxPoint(5,40), wxSize(540,2));
69
70  // LEVEL
72  wxStaticText * LevelText=new wxStaticText(this,-1,_T(" Level: "), wxPoint(5,50));
73  LevelCtrl=new wxTextCtrl(this, ID_GR_CTRL,_T("patient"), wxPoint(50,50), wxSize(50,25));
74  wxButton *addLevel = new wxButton(this, ID_LEVEL_ADD,_T("add a level"), wxPoint(150,50) );
75  Connect( addLevel->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnAddLevel );
76
78  wxStaticLine *line2 = new wxStaticLine(this, -1, wxPoint(5,75), wxSize(540,2));
79
80  // ATTRIBUTES
81
83  wxStaticText * GR=new wxStaticText(this,-1,_T(" DICOM Group: "), wxPoint(5,110));
84  GRCtrl=new wxTextCtrl(this, ID_GR_CTRL,_T("0x0010"), wxPoint(82,110), wxSize(50,25));
85  Connect( GRCtrl->GetId(), wxEVT_COMMAND_TEXT_UPDATED , (wxObjectEventFunction) &WxDescriptorPanel::OnDicomAttribute );
86
88  wxStaticText * EL=new wxStaticText(this,-1,_T(" DICOM Element: "), wxPoint(140,110));
89  ELCtrl=new wxTextCtrl(this, ID_EL_CTRL,_T("0x0010"), wxPoint(230,110), wxSize(50,25));
90  Connect( ELCtrl->GetId(), wxEVT_COMMAND_TEXT_UPDATED , (wxObjectEventFunction) &WxDescriptorPanel::OnDicomAttribute );
91
92  wxString choices[3];
93  choices[0] = _T("Unknow Attribute");
94  std::map<std::string, std::string>::iterator it_att =ownatt.begin();
95  for(int i = 1; it_att != ownatt.end(); it_att++, i++)
96  {
97  choices[i] = crea::std2wx(it_att->second);
98  }
99
100
101  AttributeCombo = new wxComboBox(this, ID_ATTRIBUTE_CTRL,_T(""),wxPoint(300,110), wxSize(120,25),3,choices, wxCB_READONLY);
102  AttributeCombo->SetSelection(0);
103
104
105  wxButton *addAttribute = new wxButton(this, ID_ATTRIBUTE_ADD,_T("add an attribute"), wxPoint(440,110) );
106  Connect( addAttribute->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnAddAttribute );
108  wxStaticLine *line3 = new wxStaticLine(this, -1, wxPoint(5,140), wxSize(540,2));
109
110  // RESULT
111
112  ResultCtrl=new wxTextCtrl(this, ID_EL_CTRL,_T(""), wxPoint(5,150), wxSize(250,310), wxTE_READONLY| wxMac | wxTE_MULTILINE | wxTE_RICH );
113  wxButton *RemoveCtrl = new wxButton(this, ID_REMOVE_ADD,_T("Remove an entry"), wxPoint(280,200) );
114  Connect( RemoveCtrl->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnRemove );
115
117  wxStaticLine *line4 = new wxStaticLine(this, -1, wxPoint(5,470), wxSize(540,2));
118  // VALIDATION BUTTON
119  wxButton *Ok = new wxButton(this, -1,_T("OK"), wxPoint(10,480) );
120  Connect( Ok->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnOK );
121
122  wxButton *Apply = new wxButton(this, -1,_T("APPLY"), wxPoint(150,480) );
123  Connect( Apply->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxDescriptorPanel::OnApply );
124
126  wxButton *Cancel = new wxButton(this, wxID_CANCEL,_T("CANCEL"), wxPoint(250,480) );
127 // Connect( Cancel->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxCloseEvent) &wxWindow::Close );
128
129  Layout();
130  CreateDescriptor(0);
131  }

Here is the call graph for this function:

creaImageIO::WxDescriptorPanel::~WxDescriptorPanel ( )

Destructor.

Definition at line 134 of file creaImageIOWxDescriptorPanel.cpp.

References GimmickDebugMessage.

135  {
136  GimmickDebugMessage(1,"WxCustomizeConfigPanel::~WxCustomizeConfigPanel"
137  <<std::endl);
138  }

Member Function Documentation

bool creaImageIO::WxDescriptorPanel::addAtribute ( const std::string &  level,
const std::string &  name
)
private

add an attribute

Definition at line 515 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree.

Referenced by onAddAttribute().

516  {
517  bool bresult = true;
518  std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin();
519  for (;it_tree != DscpTree.end(); it_tree++)
520  {
521  if (it_tree->first.c_str() == level)
522  {
523  std::vector<std::string>::iterator it_branch = it_tree->second.begin();
524  for(;it_branch != it_tree->second.end(); it_branch++)
525  {
526  if(it_branch->c_str() == name)
527  {
528  bresult = false;
529  }
530  }
531  if(bresult)
532  {
533  it_tree->second.push_back(name);
534  break;
535  }
536  }
537  }
538  return bresult;
539  }

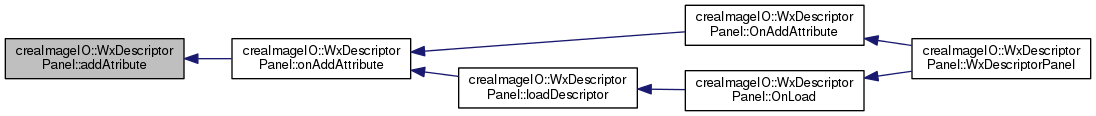

Here is the caller graph for this function:

bool creaImageIO::WxDescriptorPanel::addLevel ( const std::string &  name)
private

add a level

Definition at line 454 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree, lv, and lvlist.

Referenced by onAddLevel(), and WxDescriptorPanel().

455  {
456  bool bfound = false;
457  std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin();
458  for (;it_tree != DscpTree.end(); it_tree++)
459  {
460  if(it_tree->first == name)
461  {
462  bfound = true;
463  break;
464  }
465  }
466  if(!bfound)
467  {
468  lvlist[lv] = name;
469  std::vector <std::string> branch;
470  DscpTree[name] = branch;
471  }
472  return bfound;
473  }

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::CreateDescriptor ( int  type)
private

Create a descriptor structure.

Definition at line 406 of file creaImageIOWxDescriptorPanel.cpp.

References ELCtrl, GRCtrl, LevelCtrl, lv, and outDscp.

Referenced by WxDescriptorPanel().

407  {
408  if(type == 0) // First initialization
409  {
410  outDscp.clear();
411  outDscp += "<level>";
412  outDscp += "\n";
413  outDscp += "root";
414  outDscp += "\n";
415  outDscp += "O Name Name 4";
416  outDscp += "\n";
417  }
418  if(type == 1)
419  {
420  if(lv > 1)
421  {
422  outDscp += "O NumberOfChildren ";
423  outDscp += crea::wx2std(LevelCtrl->GetValue());
424  outDscp += "s";
425  outDscp += "\n";
426  }
427  outDscp += "<level>";
428  outDscp += "\n";
429  outDscp += crea::wx2std(LevelCtrl->GetValue());
430  outDscp += "\n";
431
432  }
433  if(type == 2)
434  {
435  outDscp += "D";
436  outDscp += " ";
437  outDscp += crea::wx2std(GRCtrl->GetValue());
438  outDscp += " ";
439  outDscp += crea::wx2std(ELCtrl->GetValue());
440  outDscp += " ";
441  outDscp += "3";
442  outDscp += "\n";
443  }
444
445
446  }

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::createDescriptorFile ( )
private

Create a descriptor file.

Definition at line 676 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree, lvlist, outDscp, and ownatt.

Referenced by saveDescriptor().

677  {
678
679  outDscp.clear();
680  outDscp += "<level>";
681  outDscp += "\n";
682  outDscp += "Root";
683  outDscp += "\n";
684  outDscp += "O Name Name 4";
685  outDscp += "\n";
686  std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin();
687  std::map<int, std::string >::iterator it_lv_nb = lvlist.begin();
688  std::map<int, std::string >::iterator it_lv = lvlist.begin();
689  it_lv_nb++;
690  for (;it_lv != lvlist.end(); it_lv++)
691  {
692  outDscp +="<level>";
693  outDscp += "\n";
694  outDscp += it_lv->second.c_str();
695  outDscp += "\n";
696  if(it_lv_nb != lvlist.end())
697  {
698  outDscp += "O NumberOfChildren ";
699  outDscp += it_lv_nb->second.c_str();
700  outDscp += "s";
701  outDscp += "\n";
702  it_lv_nb++;
703  }
704  std::vector<std::string>::iterator it_branch = DscpTree[it_lv->second.c_str()].begin();
705  for(;it_branch != DscpTree[it_lv->second.c_str()].end(); it_branch++)
706  {
707  std::string att = it_branch->c_str();
708  if(att[0] == 'D' && att[7] == '_' && att.size() == 14)
709  {
710  outDscp += "D ";
711  outDscp += att.substr(1,6) + " "; // GR
712  outDscp += att.substr(8,6) + " ";// EL
713  outDscp += "3";
714  outDscp += "\n";
715  }
716  else
717  {
718  outDscp += "O ";
719  outDscp += it_branch->c_str();
720  outDscp += " ";
721  outDscp += ownatt[att];
722  outDscp += " ";
723  outDscp += "2";
724  outDscp += "\n";
725  }
726  }
727
728  }
729  }

Here is the caller graph for this function:

std::string creaImageIO::WxDescriptorPanel::findLevel ( )
private

find a level'name

Definition at line 335 of file creaImageIOWxDescriptorPanel.cpp.

References ResultCtrl.

Referenced by onAddAttribute(), and OnRemove().

336  {
337  long column;
338  long line;
339
340  ResultCtrl->PositionToXY( ResultCtrl->GetInsertionPoint(),&column, &line);
341  std::string tx(crea::wx2std(ResultCtrl->GetRange(0, ResultCtrl->XYToPosition(0,line+1))).c_str());
342  std::string::size_type level_pos_start = tx.rfind("|_");
343  if(level_pos_start == -1)
344  {
345  level_pos_start = 0;
346  }
347  else
348  {
349  level_pos_start += 2;
350  }
351
352  std::string::size_type level_pos_end = tx.find_first_of("\n",level_pos_start);
353  return tx.substr(level_pos_start,level_pos_end - level_pos_start);
354  }

Here is the caller graph for this function:

const std::string& creaImageIO::WxDescriptorPanel::GetDescriptor ( )
inline

Definition at line 74 of file creaImageIOWxDescriptorPanel.h.

References m_DscpFile.

Referenced by creaImageIO::WxGimmickView::OnCreateDB().

74 { return m_DscpFile;}

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::loadDescriptor ( const std::string  i_name)
private

load a descriptor file

Definition at line 737 of file creaImageIOWxDescriptorPanel.cpp.

References onAddAttribute(), and onAddLevel().

Referenced by OnLoad().

738  {
739  std::ifstream i_file(i_name.c_str());
740  std::stringstream buffer;
741  buffer << i_file.rdbuf();
742  std::string line;
743  std::string level;
744
745 #if defined(USE_GDCM2)
746  const gdcm::Global& g = gdcm::Global::GetInstance(); // sum of all knowledge !
747  const gdcm::Dicts &dicts = g.GetDicts();
748  const gdcm::Dict &dict = dicts.GetPublicDict(); // Part 6
749 #endif
750
751
752  bool bname;
753  int ilevel = -1;
754
755
756  while(std::getline(buffer, line))
757  {
758  if(line =="<level>")
759  { //increment levels.
760  ilevel++;
761  bname = true;
762  }
763  else if(bname)
764  {
765  // For each level, a name to describe it
766  level = line;
767  if(ilevel>0)
768  {
769  onAddLevel(level);
770  }
771  bname = false;
772  }
773  else
774  {
775  // split line to find all tags
776  std::vector<std::string> descriptors;
777  std::string separator = " ";
778  std::string::size_type last_pos = line.find_first_not_of(separator);
779  //find first separator
780  std::string::size_type pos = line.find_first_of(separator, last_pos);
781  while(std::string::npos != pos || std::string::npos != last_pos)
782  {
783  descriptors.push_back(line.substr(last_pos, pos - last_pos));
784  last_pos = line.find_first_not_of(separator, pos);
785  pos = line.find_first_of(separator, last_pos);
786  }
787
788  // By default, the last tag is at zero and not recorded but if take in count
789  unsigned int flag = 0;
790  if(descriptors.size() == 4)
791  {
792  std::stringstream val;
793  val << std::dec << descriptors[3];
794  val>> flag;
795  }
796
797  // if Dicom tag, use "group" and "element" descriptor
798  if(descriptors[0] == "D")
799  { std::stringstream val, val2;
800  unsigned short group;
801  unsigned short element;
802  val << std::dec << descriptors[1] ;
803  val >> std::hex >> group;
804  val2 << std::dec << descriptors[2];
805  val2 >> std::hex >> element;
806  std::string compose = "D";
807  compose += descriptors[1];
808  compose += "_";
809  compose += descriptors[2];
810 #if defined(USE_GDCM)
811  GDCM_NAME_SPACE::DictEntry* entry = GDCM_NAME_SPACE::Global::GetDicts()->GetDefaultPubDict()->GetEntry(group, element);
812  if(ilevel>0)
813  {
814  onAddAttribute( entry->GetName(),compose, level);
815  }
816 #endif
817
818 #if defined(USE_GDCM2)
819  gdcm::DictEntry dictentry = dict.GetDictEntry(gdcm::Tag(group, element));
820  if(ilevel>0)
821  {
822  onAddAttribute( dictentry.GetName(),compose, level);
823  }
824
825
826 #endif
827  }
828  else if(descriptors[0].find("#") != -1)
829  {
830  // commented line continue to next line
831  }
832  else // "O" means if user's own tag.
833  {
834  boost::algorithm::replace_all(descriptors[2],"_"," ");
835  if(ilevel>0 && descriptors[1] != "NumberOfChildren" )
836  {
837  onAddAttribute( descriptors[2].c_str(),descriptors[1].c_str(), level);
838  }
839  }
840  }
841  }
842  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnAddAttribute ( wxCommandEvent &  event)
private

Add an attribute (DICOM or own)

Definition at line 145 of file creaImageIOWxDescriptorPanel.cpp.

References AttributeCombo, ELCtrl, GRCtrl, onAddAttribute(), and OwnAttribute().

Referenced by WxDescriptorPanel().

146  {
147  std::string name_lv;
148  std::string name_att;
149  if (AttributeCombo->GetSelection() == 0)
150  {
151  name_att = "D" + crea::wx2std(GRCtrl->GetValue()) + "_" + crea::wx2std(ELCtrl->GetValue());
152  }
153  else
154  {
155  wxString wd = AttributeCombo->GetValue();
156  std::string st = crea::wx2std(wd);
157  name_att = OwnAttribute(st);
158  }
159  onAddAttribute(crea::wx2std(AttributeCombo->GetValue()), name_att);
160  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::onAddAttribute ( const std::string &  att,
const std::string &  name_att,
std::string  level = ""
)
private

Add an attribute (DICOM or own)

Definition at line 168 of file creaImageIOWxDescriptorPanel.cpp.

References addAtribute(), findLevel(), InsertPt, lv, and ResultCtrl.

Referenced by loadDescriptor(), and OnAddAttribute().

169  {
170  if(lv == 0)
171  {
172  wxMessageBox(_T("Need a level first!"),crea::std2wx("WARNING"),wxOK,this);
173  }
174  else
175  {
176  if( !att.empty() )
177  {
178  // Find Name of level
179  if(level.empty())
180  {
181  level = findLevel();
182  }
183
184  if (!addAtribute(level, name_att))
185  {
186  wxMessageBox(_T("Attribute already used in this level"),crea::std2wx("WARNING"),wxOK,this);
187  }
188  else
189  {
190  ResultCtrl->SetInsertionPoint(InsertPt);
191  for (int i = 1; i<=lv;i++)
192  {
193  ResultCtrl->WriteText(_T(" "));
194  }
195  ResultCtrl->WriteText(_T("| - "));
196  ResultCtrl->WriteText(crea::std2wx(att));
197  wxTextAttr ResultAttr(ResultCtrl->GetDefaultStyle());
198  ResultAttr.SetTextColour(*wxWHITE);
199  ResultCtrl->SetDefaultStyle(ResultAttr);
200  std::string text = " ";
201  ResultCtrl->WriteText(crea::std2wx(" " + name_att));
202  ResultAttr.SetTextColour(*wxBLACK);
203  ResultCtrl->SetDefaultStyle(ResultAttr);
204  ResultCtrl->WriteText(_T("\n"));
205  }
206  InsertPt = ResultCtrl->GetInsertionPoint();
207  }
208  }
209  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnAddLevel ( wxCommandEvent &  event)
private

Add a Level.

Definition at line 216 of file creaImageIOWxDescriptorPanel.cpp.

References LevelCtrl, and onAddLevel().

Referenced by WxDescriptorPanel().

217  {
218  if( !LevelCtrl->GetValue().IsEmpty() )
219  {
220  onAddLevel(crea::wx2std(LevelCtrl->GetValue()));
221  }
222  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::onAddLevel ( const std::string &  level)
private

Add a Level.

Definition at line 229 of file creaImageIOWxDescriptorPanel.cpp.

References addLevel(), InsertPt, lv, and ResultCtrl.

Referenced by loadDescriptor(), and OnAddLevel().

230  {
231  if(addLevel(level))
232  {
233  wxMessageBox(_T("Level already used"),crea::std2wx(("WARNING")),wxOK,this);
234  return;
235  }
236
237  lv++;
238  ResultCtrl->SetInsertionPoint(InsertPt);
239  for (int i = 1; i<lv;i++)
240  {
241  ResultCtrl->WriteText(_T(" "));
242  }
243  if(lv>1)
244  { ResultCtrl->WriteText(_T("| \n"));
245  for (int i = 1; i<lv;i++)
246  {
247  ResultCtrl->WriteText(_T(" "));
248  }
249  ResultCtrl->WriteText(_T("|_"));
250  }
251
252  wxTextAttr ResultAttr(ResultCtrl->GetDefaultStyle());
253  ResultAttr.SetTextColour(*wxRED);
254  ResultCtrl->SetDefaultStyle(ResultAttr);
255  ResultCtrl->WriteText(crea::std2wx(level));
256  ResultAttr.SetTextColour(*wxBLACK);
257  ResultCtrl->SetDefaultStyle(ResultAttr);
258  ResultCtrl->WriteText(_T("\n"));
259  InsertPt = ResultCtrl->GetInsertionPoint();
260
261  }

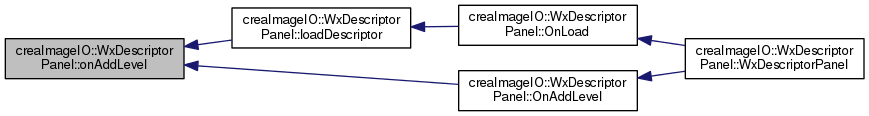

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnApply ( wxCommandEvent &  event)
private

Save a descriptor and use it.

Definition at line 628 of file creaImageIOWxDescriptorPanel.cpp.

References ID_DSCP_APPLY, m_DscpFile, and saveDescriptor().

Referenced by WxDescriptorPanel().

629  {
630  m_DscpFile = saveDescriptor();
631  wxWindow::Close();
632  SetReturnCode(ID_DSCP_APPLY);
633  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnCancel ( wxCommandEvent &  event)
private

Cancel.

Definition at line 667 of file creaImageIOWxDescriptorPanel.cpp.

668  {
669  }
void creaImageIO::WxDescriptorPanel::OnDicomAttribute ( wxCommandEvent &  event)
private

Find a DICOM attribute from group and element values.

Definition at line 268 of file creaImageIOWxDescriptorPanel.cpp.

References AttributeCombo, ELCtrl, and GRCtrl.

Referenced by WxDescriptorPanel().

269  {
270  //int i = 0;
271  if(!GRCtrl->GetValue().IsEmpty() && !ELCtrl->GetValue().IsEmpty()
272  && GRCtrl->GetValue().Len() == 6 && ELCtrl->GetValue().Len() == 6 && AttributeCombo->GetSelection() == 0)
273  {
274
275  std::string gr = crea::wx2std(GRCtrl->GetValue());
276  std::string el = crea::wx2std(ELCtrl->GetValue());
277  std::stringstream val;
278
279  unsigned short group;
280  unsigned short element;
281  val << std::dec << gr ;
282  val >> std::hex >> group;
283  val.clear();
284  val << std::dec << el ;
285  val >> std::hex >> element;
286 #if defined(USE_GDCM)
287  // Retrieve the name from gdcm dict
288  GDCM_NAME_SPACE::DictEntry* entry = GDCM_NAME_SPACE::Global::GetDicts()->GetDefaultPubDict()->GetEntry(group, element);
289  // AttributeCombo->Clear();
290  if(entry)
291  {
292  AttributeCombo->Delete(0);
293  AttributeCombo->Insert(crea::std2wx(entry->GetName()), 0);
294  }
295  else
296  {
297  AttributeCombo->Delete(0);
298  AttributeCombo->Insert(_T("Unknown Attribute"),0);
299  }
300 #endif
301  AttributeCombo->SetSelection(0);
302
303  }
304
305  }

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnLoad ( wxCommandEvent &  event)
private

Load an exsitant descriptor.

Definition at line 589 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree, LevelCtrl, loadDescriptor(), lv, m_path, and ResultCtrl.

Referenced by WxDescriptorPanel().

590  {
591  long style = wxOPEN | wxFILE_MUST_EXIST;
592  LevelCtrl->SetValue(_T("patient"));
593  ResultCtrl->Clear();
594  DscpTree.clear();
595  lv = 0;
596
597  std::string wc("*.dscp");
598  wxFileDialog* FD = new wxFileDialog( 0,
599  _T("Select file"),
600  crea::std2wx(m_path),
601  _T(""),
602  crea::std2wx(wc),
603  style,
604  wxDefaultPosition);
605  if (FD->ShowModal()==wxID_OK)
606  {
607  loadDescriptor(crea::wx2std(FD->GetPath()).c_str());
608  }
609
610  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnNew ( wxCommandEvent &  event)
private

Create a new descriptor.

Definition at line 576 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree, LevelCtrl, lv, and ResultCtrl.

Referenced by WxDescriptorPanel().

577  {
578  LevelCtrl->SetValue(_T("patient"));
579  ResultCtrl->Clear();
580  DscpTree.clear();
581  lv = 0;
582  }

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnOK ( wxCommandEvent &  event)
private

Save a descriptor.

Definition at line 617 of file creaImageIOWxDescriptorPanel.cpp.

References saveDescriptor().

Referenced by WxDescriptorPanel().

618  {
619  saveDescriptor();
620  wxWindow::Close();
621  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxDescriptorPanel::OnRemove ( wxCommandEvent &  event)
private

Remove a value (level or attribute)

Definition at line 361 of file creaImageIOWxDescriptorPanel.cpp.

References findLevel(), lv, RemoveAttribute(), RemoveLevel(), and ResultCtrl.

Referenced by WxDescriptorPanel().

362  {
363  long line;
364  long column;
365  long pos_start;
366  long pos_end;
367
368  pos_start = ResultCtrl->GetInsertionPoint();
369  ResultCtrl->PositionToXY( pos_start,&column, &line);
370  if (line == 0)
371  {
372  std::string name("root");
373  RemoveLevel(name);
374  ResultCtrl->Clear();
375  lv = 0;
376  }
377  else
378  {
379  wxString text = ResultCtrl->GetLineText(line);
380  if ( text.Find(_T("|_")) == -1)
381  {
382  std::string level = findLevel();
383  // find GR and EL values to remove
384  std::string tx = crea::wx2std(text);
385  std::string::size_type EL_start_pos = tx.find_last_of(" ");
386  RemoveAttribute(level, tx.substr(EL_start_pos+1,tx.size() - EL_start_pos));
387  ResultCtrl->Remove( ResultCtrl->XYToPosition(0,line), ResultCtrl->XYToPosition(0,line+1));
388  }
389  else
390  {
391  RemoveLevel(crea::wx2std(text.AfterFirst('_')));
392  lv = text.Find(_T("|"))/3;
393  pos_start= ResultCtrl->XYToPosition(0,line-1);
394  ResultCtrl->SetInsertionPointEnd();
395  pos_end = ResultCtrl->GetInsertionPoint();
396  ResultCtrl->Remove(pos_start, pos_end);
397  }
398  }
399
400  }

Here is the call graph for this function:

Here is the caller graph for this function:

std::string creaImageIO::WxDescriptorPanel::OwnAttribute ( const std::string  name)
private

determine values for own attributes

Definition at line 314 of file creaImageIOWxDescriptorPanel.cpp.

References ownatt.

Referenced by OnAddAttribute().

315  {
316  std::string result;
317
318  std::map<std::string, std::string>::iterator it_att = ownatt.begin();
319  for(; it_att != ownatt.end(); it_att++)
320  {
321  if(it_att->second == name)
322  {
323  result = it_att->first.c_str();
324  break;
325  }
326  }
327  return result;
328  }

Here is the caller graph for this function:

bool creaImageIO::WxDescriptorPanel::RemoveAttribute ( const std::string &  level,
const std::string &  name
)
private

remove an attribute

Definition at line 547 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree.

Referenced by OnRemove().

548  {
549  bool bresult = false;
550  std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin();
551  for (;it_tree != DscpTree.end(); it_tree++)
552  {
553  if(it_tree->first == level)
554  {
555  std::vector<std::string>::iterator it_branch = it_tree->second.begin();
556  cout << it_tree->second.size();
557  for(;it_branch != it_tree->second.end(); it_branch++)
558  {
559  if(it_branch->c_str() == name)
560  {
561  bresult = true;
562  it_tree->second.erase(it_branch);
563  break;
564  }
565  }
566  }
567  }
568  return bresult;
569  }

Here is the caller graph for this function:

bool creaImageIO::WxDescriptorPanel::RemoveLevel ( const std::string &  name)
private

remove a level

Definition at line 480 of file creaImageIOWxDescriptorPanel.cpp.

References DscpTree, and lvlist.

Referenced by OnRemove().

481  {
482  bool bresult = false;
483  std::map<int, std::string>::iterator it_list= lvlist.begin();
484  for(; it_list != lvlist.end(); it_list++)
485  {
486  if(it_list->second == name)
487  {
488  break;
489  }
490  }
491  std::map<int, std::string>::iterator it_list2 = it_list;
492  for(;it_list != lvlist.end(); it_list++)
493  {
494  std::map<std::string, std::vector <std::string> >::iterator it_tree = DscpTree.begin();
495  for (;it_tree != DscpTree.end(); it_tree++)
496  {
497  if(it_tree->first == name)
498  {
499  DscpTree.erase(it_tree);
500  break;
501  }
502  }
503  }
504  lvlist.erase(it_list2, lvlist.end());
505  return bresult;
506  }

Here is the caller graph for this function:

const std::string creaImageIO::WxDescriptorPanel::saveDescriptor ( )
private

save a descriptor in a file

Definition at line 635 of file creaImageIOWxDescriptorPanel.cpp.

References createDescriptorFile(), and outDscp.

Referenced by OnApply(), and OnOK().

636  {
637  std::string file = "";
638  long style = wxSAVE;
639  std::string wc("*.dscp");
640  wxFileDialog* FD = new wxFileDialog( 0,
641  _T("Select file"),
642  _T(""),
643  _T(""),
644  crea::std2wx(wc),
645  style,
646  wxDefaultPosition);
647
648
649  if (FD->ShowModal()==wxID_OK)
650  {
651  createDescriptorFile();
652  file = crea::wx2std(FD->GetPath()).c_str();
653  std::ofstream ofs(file.c_str());
654  ofs.clear();
655  ofs << outDscp;
656  ofs.close();
657  }
658  return file.c_str();
659  }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

wxComboBox* creaImageIO::WxDescriptorPanel::AttributeCombo
private

Definition at line 83 of file creaImageIOWxDescriptorPanel.h.

Referenced by OnAddAttribute(), OnDicomAttribute(), and WxDescriptorPanel().

std::map<std::string, std::vector<std::string> > creaImageIO::WxDescriptorPanel::DscpTree
private

Definition at line 164 of file creaImageIOWxDescriptorPanel.h.

Referenced by addAtribute(), addLevel(), createDescriptorFile(), OnLoad(), OnNew(), RemoveAttribute(), and RemoveLevel().

wxTextCtrl* creaImageIO::WxDescriptorPanel::ELCtrl
private

Definition at line 81 of file creaImageIOWxDescriptorPanel.h.

Referenced by CreateDescriptor(), OnAddAttribute(), OnDicomAttribute(), and WxDescriptorPanel().

wxTextCtrl* creaImageIO::WxDescriptorPanel::GRCtrl
private

Definition at line 80 of file creaImageIOWxDescriptorPanel.h.

Referenced by CreateDescriptor(), OnAddAttribute(), OnDicomAttribute(), and WxDescriptorPanel().

long creaImageIO::WxDescriptorPanel::InsertPt
private

Insert point in result control.

Definition at line 152 of file creaImageIOWxDescriptorPanel.h.

Referenced by onAddAttribute(), and onAddLevel().

wxTextCtrl* creaImageIO::WxDescriptorPanel::LevelCtrl
private

Definition at line 79 of file creaImageIOWxDescriptorPanel.h.

Referenced by CreateDescriptor(), OnAddLevel(), OnLoad(), OnNew(), and WxDescriptorPanel().

int creaImageIO::WxDescriptorPanel::lv
private

number of level

Definition at line 149 of file creaImageIOWxDescriptorPanel.h.

Referenced by addLevel(), CreateDescriptor(), onAddAttribute(), onAddLevel(), OnLoad(), OnNew(), OnRemove(), and WxDescriptorPanel().

std::map<int, std::string> creaImageIO::WxDescriptorPanel::lvlist
private

Definition at line 170 of file creaImageIOWxDescriptorPanel.h.

Referenced by addLevel(), createDescriptorFile(), and RemoveLevel().

std::string creaImageIO::WxDescriptorPanel::m_DscpFile
private

Output file for Descriptor.

Definition at line 155 of file creaImageIOWxDescriptorPanel.h.

Referenced by GetDescriptor(), and OnApply().

std::string creaImageIO::WxDescriptorPanel::m_path
private

Definition at line 173 of file creaImageIOWxDescriptorPanel.h.

Referenced by OnLoad().

std::string creaImageIO::WxDescriptorPanel::outDscp
private

Output Descriptor.

Definition at line 158 of file creaImageIOWxDescriptorPanel.h.

Referenced by CreateDescriptor(), createDescriptorFile(), and saveDescriptor().

std::map<std::string, std::string> creaImageIO::WxDescriptorPanel::ownatt
private

Definition at line 167 of file creaImageIOWxDescriptorPanel.h.

Referenced by createDescriptorFile(), OwnAttribute(), and WxDescriptorPanel().

wxTextCtrl* creaImageIO::WxDescriptorPanel::ResultCtrl
private

Definition at line 82 of file creaImageIOWxDescriptorPanel.h.

Referenced by findLevel(), onAddAttribute(), onAddLevel(), OnLoad(), OnNew(), OnRemove(), and WxDescriptorPanel().

std::vector<std::string> creaImageIO::WxDescriptorPanel::VLevel
private

Definition at line 161 of file creaImageIOWxDescriptorPanel.h.

The documentation for this class was generated from the following files:
