Concrete TreeHandler which manages a Tree stored in a sqlite database. More...

#include <creaImageIOSQLiteTreeHandler.h>

Inheritance diagram for creaImageIO::SQLiteTreeHandler:

Collaboration diagram for creaImageIO::SQLiteTreeHandler:

Public Types
typedef tree::Node::AttributeMapType	AttributeMapType
	==================================================================== More...

Public Member Functions
	SQLiteTreeHandler (const std::string &filename)
	Ctor with database file name. More...

virtual	~SQLiteTreeHandler ()
	Dtor. More...

const std::string &	GetFileName () const
	Returns the sqlite db file name. More...

virtual bool	IsReadable ()
	Is the 'source' readable ? More...

virtual bool	IsWritable ()
	Is the 'source' writable ? More...

virtual bool	Open (bool writable=false)
	Opens an existing 'source'. More...

virtual bool	Close ()
	Closes the 'source'. More...

virtual bool	Create (bool writable=false)
	Creates a new 'source'. More...

virtual bool	Destroy ()
	Destroys the 'source'. More...

virtual void	BeginTransaction ()
	Begins a transaction. More...

virtual void	EndTransaction ()
	Commits results and ends transaction. More...

virtual unsigned int	GetNumberOfChildren (tree::Node *n)
	Returns the number of children of the Node WITHOUT LOADING THEM More...

virtual void	GetAttribute (std::string levelDescriptor, std::string searchParam, std::string searchVal, std::string key, std::string &result)
	Returns the attribute requested. Useful for synchronization. More...

virtual int	LoadChildren (tree::Node *parent, int maxlevel)
	Recursively loads the children of node 'parent' until maxlevel. More...

virtual void	UnLoad (tree::Node *n)
	Unloads the Node and its descendants. More...

virtual void	GetTopLevelNodeId (const std::string &searchParam, const std::string &searchValue, std::string &parent_id)
	==================================================================== More...

virtual int	AddBranch (const AttributeMapType &attr)
	==================================================================== More...

virtual bool	Remove (tree::Node *)
	Removes the node and its descendants. More...

virtual bool	SetAttribute (tree::Node *, const std::string &key, const std::string &value)
	Sets an attribute of a Node. More...

virtual void	SetAttribute (const std::string &levelDescriptor, const std::string &key, const std::string &value, const std::string &searchParam, const std::string &searchVal)
	Sets an attribute. More...

virtual void	DeleteTuple (std::string levelDescriptor, std::string key, std::string value)
	Deletes a tuple. More...

virtual void	RemoveEntries (const std::string i_table, const std::string i_attribute, const std::string i_operand, const std::string i_val)

void	getAllAttributes (std::string i_filename, std::map< std::string, std::string > &i_results)
	get all attributes from database for a given file More...

void	GetAttributes (std::string name, std::string i_id, std::string i_value, tree::LevelDescriptor::AttributeDescriptorListType i_attr, std::vector< std::string > &i_results)
	get selected attributes from database for a given file More...

void	GetUpLevelNodeId (int level, const std::string &searchParam, const std::string &searchValue, std::string &parent_id)
	get Id for the up level node More...

tree::Tree &	GetTree ()
	Returns the Tree handled. More...

const tree::Tree &	GetTree () const
	Returns the Tree handled (const) More...

Protected Member Functions
bool	DBOpen ()
	Open the database. More...

bool	DBImportTreeDescription ()
	Import the Tree::Description from database (verifies the structure) More...

bool	DBCreate ()
	Creates a new database on disk and the tables. More...

void	SQLAppendAttributesDefinition (int level, std::string &s)
	Appends to string s the SQL command to create the attributes of a given level. More...

tree::Node *	DBGetParent (const AttributeMapType &attr)
	Returns the parent to which the branch defined by the attributes. More...

int	DBLoadChildren (tree::Node *parent, int numberoflevels=1)
	Loads the children of Node parent. More...

void	SQLAppendAttributesValues (tree::Node *n, std::string &s)
	Appends to string s the SQL command to set the attributes values. More...

void	DBGraftToParent (tree::Node *parent, const AttributeMapType &attr)
	Graft the branch defined by the attributes to the parent. More...

bool	DBSetAttribute (tree::Node *, const std::string &key, const std::string &value)
	Sets an attribute of a Node and updates the database. More...

void	DBSetAttribute (const std::string &levelDescriptor, const std::string &key, const std::string &value, const std::string &searchParam, const std::string &searchVal)
	Sets an attribute and updates the database. More...

void	DBInsert (tree::Node *n)
	Inserts the Node in the database. More...

void	DBDelete (std::string levelDescriptor, std::string key, std::string value)
	Deletes the tuple that matches the value specified in the given key and that belongs to the given level. More...

void	DBRecursiveRemoveNode (tree::Node *node)
	Recursively Removes the nodes whose parent is given as a parameter. More...

void	DBRecursiveRemoveNode (int level, std::string parentId)
	Recursively Removes the nodes found in the given level with the given parent id. More...

Private Member Functions
void	SetWritable (bool w)

bool	GetWritable () const

const std::string	convert (const std::string &i_word)

Private Attributes
CppSQLite3DB *	mDB
	The DB. More...

std::string	mFileName
	The physical location associated to the DicomDatabase (directory, db file...) More...

bool	mWritable
	Is the DB writable ? More...

bool	mIsAdding

Detailed Description

Concrete TreeHandler which manages a Tree stored in a sqlite database.

Definition at line 46 of file creaImageIOSQLiteTreeHandler.h.

Member Typedef Documentation

typedef tree::Node::AttributeMapType creaImageIO::TreeHandler::AttributeMapType

inherited

====================================================================

Definition at line 150 of file creaImageIOTreeHandler.h.

Constructor & Destructor Documentation

creaImageIO::SQLiteTreeHandler::SQLiteTreeHandler ( const std::string & filename )

Ctor with database file name.

Definition at line 51 of file creaImageIOSQLiteTreeHandler.cpp.

References mDB, and mIsAdding.

     : mFileName(filename)
   {
     mDB = new CppSQLite3DB;
         mIsAdding=false;
     //GimmickMessage(1,"SQLite version : "                 <<std::string(mDB->SQLiteVersion())<< std::endl);
   }

creaImageIO::SQLiteTreeHandler::~SQLiteTreeHandler ( )

virtual

Dtor.

Definition at line 61 of file creaImageIOSQLiteTreeHandler.cpp.

References mDB.

   {
     delete mDB;
   }

Member Function Documentation

int creaImageIO::SQLiteTreeHandler::AddBranch ( const AttributeMapType & attr )

virtual

====================================================================

Adds a branch in the tree with the attributes provided

Reimplemented from creaImageIO::TreeHandler.

Definition at line 125 of file creaImageIOSQLiteTreeHandler.cpp.

References DBGetParent(), DBGraftToParent(), and creaImageIO::tree::Node::GetLevel().

   {
     tree::Node* parent = DBGetParent(attr);
     DBGraftToParent(parent,attr);
     return (parent->GetLevel()+1);

   }

Here is the call graph for this function:

void creaImageIO::SQLiteTreeHandler::BeginTransaction ( )

virtual

Begins a transaction.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 1122 of file creaImageIOSQLiteTreeHandler.cpp.

References UPDATEDB.

     {
                 std::stringstream out;
                 out<<"begin transaction;";
         UPDATEDB(out.str());
         }

bool creaImageIO::SQLiteTreeHandler::Close ( )

virtual

Closes the 'source'.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 91 of file creaImageIOSQLiteTreeHandler.cpp.

   {
     return true;
   }

const std::string creaImageIO::SQLiteTreeHandler::convert ( const std::string & i_word )

private

Definition at line 1136 of file creaImageIOSQLiteTreeHandler.cpp.

Referenced by DBSetAttribute().

   {
           std::string temp = i_word;
           boost::algorithm::replace_all(temp,"'","''");
           return temp.c_str();
   }

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::Create ( bool writable = false )

virtual

Creates a new 'source'.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 81 of file creaImageIOSQLiteTreeHandler.cpp.

References DBCreate(), and SetWritable().

Referenced by creaImageIO::Gimmick::createDB().

   {
     //    std::cout << "***> SQLiteTreeHandler::New('"<<GetFileName()<<"')"<<std::endl;
     SetWritable(writable);
     return DBCreate();
   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::DBCreate ( )

protected

Creates a new database on disk and the tables.

Definition at line 293 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Descriptor::Add(), creaImageIO::tree::Tree::CopyAttributeDescriptorList(), DBInsert(), CppSQLite3Exception::errorCode(), CppSQLite3Exception::errorMessage(), CppSQLite3DB::execDML(), creaImageIO::tree::Tree::GetAttributeDescriptorList(), creaImageIO::tree::Tree::GetDescriptor(), GetFileName(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), creaImageIO::tree::Tree::GetNumberOfLevels(), creaImageIO::TreeHandler::GetTree(), GimmickError, GimmickMessage, creaImageIO::tree::Node::InitializeAttributeMap(), mDB, CppSQLite3DB::open(), creaImageIO::tree::AttributeDescriptor::PRIVATE, creaImageIO::tree::Node::SetChildrenLoaded(), SQLAppendAttributesDefinition(), and UPDATEDB.

Referenced by Create().

   {
     GimmickMessage(1,"Creating SQLite database '"<<GetFileName()
                    <<"' ... "<<std::endl);

     if (boost::filesystem::exists(GetFileName()))
       {
         GimmickError(GetFileName()<<"' : "
                      << "file already exists");
         return false;
       }

     // OPENING
     try
       {
         mDB->open(GetFileName().c_str());
       }
     catch (CppSQLite3Exception& e)
       {
         GimmickError(e.errorCode() << ":"
                      << e.errorMessage() <<std::endl);
         return false;
       }
     mDB->execDML("pragma synchronous=off;");

     // CREATING TABLES

     std::string command;
     // Create LEVELS table
     command = "create table LEVELS\n";
     command += "( Name text )\n";
     UPDATEDB(command);
     int l;
     // Iterate the Levels
     for (l=0; l<GetTree().GetNumberOfLevels(); l++)
       {
         command = "INSERT INTO LEVELS (Name) VALUES ('";
         command += GetTree().GetLevelDescriptor(l).GetName();
         command += "')";
         UPDATEDB(command);

         // Create table of level (for level>0, i.e. not Root)
         if (l>=0)
           {
             command = "CREATE TABLE ";
             command += GetTree().GetLevelDescriptor(l).GetName();
             command += "\n(\nID INTEGER PRIMARY KEY";
             if (l>1)
               {
                 command += ",\nPARENT_ID int not null";
               }
             SQLAppendAttributesDefinition(l,command);
             if (l>1)
               {
                 command += ",\nconstraint FK_PARENT foreign key (PARENT_ID) references ";
                 command += GetTree().GetLevelDescriptor(l-1).GetName();
                 command += "(ID) on delete restrict on update restrict";
               }
             command += "\n)";
             UPDATEDB(command);

                 GetTree().CopyAttributeDescriptorList(l);

             // Add Attribute 'ID' to Description
             GetTree().GetDescriptor().Add
               (AttributeDescriptor( "ID",
                                     "Database Identifier",
                                     0,0,
                                     AttributeDescriptor::PRIVATE
                                     ),l);

             if (l>1)
               {
                 // Add Attribute 'PARENT_ID' to Description
                 GetTree().GetDescriptor().Add
                   (AttributeDescriptor( "PARENT_ID",
                                         "Database Parent Identifier",
                                         0,0,
                                         AttributeDescriptor::PRIVATE
                                         ),l);
               }

           }

         // Create table *_ATTRIBUTES

         command = "CREATE TABLE ";
         command += GetTree().GetLevelDescriptor(l).GetName();
         command += "_Attributes\n(\n";
         command += "Key text,\n";
         command += "Name text,\n";
         command += "DicomGroup int,\n";
         command += "DicomElement int,\n";
         command += "Flags int\n";
         command += "\n)";
         UPDATEDB(command);

         // Fill the table *_ATTRIBUTES
         LevelDescriptor::AttributeDescriptorListType::const_iterator i;
         for (i  = GetTree().GetAttributeDescriptorList(l).begin();
              i != GetTree().GetAttributeDescriptorList(l).end();
              ++i)
           {

             std::stringstream insert;
             insert << "INSERT INTO "
                    << GetTree().GetLevelDescriptor(l).GetName()
                    << "_Attributes (Key,Name,DicomGroup,DicomElement,Flags) "
                    << "VALUES ('"
                    << i->GetKey() << "','"
                    << i->GetName() << "',"
                    << i->GetGroup() << ","
                    << i->GetElement() << ","
                    << i->GetFlags() << ");";
             UPDATEDB(insert.str());
           }

       } // For l=0...

     // Initialize the root attributes
     GetTree().InitializeAttributeMap();
     // Insert the root in the level 0 table
     DBInsert(GetTree().GetTree());


     GetTree().SetChildrenLoaded(true);
     GimmickMessage(1,"Creating SQLite database '"<<GetFileName()
                    <<"' ... OK"<<std::endl);
     return true;
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBDelete	(	std::string	levelDescriptor,
		std::string	key,
		std::string	value
	)

protected

Deletes the tuple that matches the value specified in the given key and that belongs to the given level.

Definition at line 895 of file creaImageIOSQLiteTreeHandler.cpp.

References GimmickDebugMessage, and UPDATEDB.

Referenced by DBRecursiveRemoveNode(), and DeleteTuple().

   {

     std::stringstream query;
         query<<"DELETE FROM "<<levelDescriptor<<" WHERE "<<key<<"='"<<value<<"';";

     UPDATEDB(query.str());
         GimmickDebugMessage(2," Deleting: Query: "<<query.str()<<std::endl);
   }

Here is the caller graph for this function:

tree::Node * creaImageIO::SQLiteTreeHandler::DBGetParent ( const AttributeMapType & attr )

protected

Returns the parent to which the branch defined by the attributes.

Definition at line 620 of file creaImageIOSQLiteTreeHandler.cpp.

References DBLoadChildren(), creaImageIO::tree::Node::GetChildrenList(), creaImageIO::TreeHandler::GetTree(), and creaImageIO::tree::Tree::GetTree().

Referenced by AddBranch().

   {
     Node* parent = GetTree().GetTree();
     bool go_down;
     do
       {
         go_down = false;
         // Load the children of the current parent
         DBLoadChildren(parent);
         // Iterate the children
         tree::Node::ChildrenListType::const_iterator i;
         for (i = parent->GetChildrenList().begin();
              i!= parent->GetChildrenList().end();
              ++i)
           {
             if ( (*i)->Matches( attr ) )
               {
                 go_down = true;
                 parent = *i;
                 break;
               }
           }
       }
     while (go_down);
     return parent;
   }

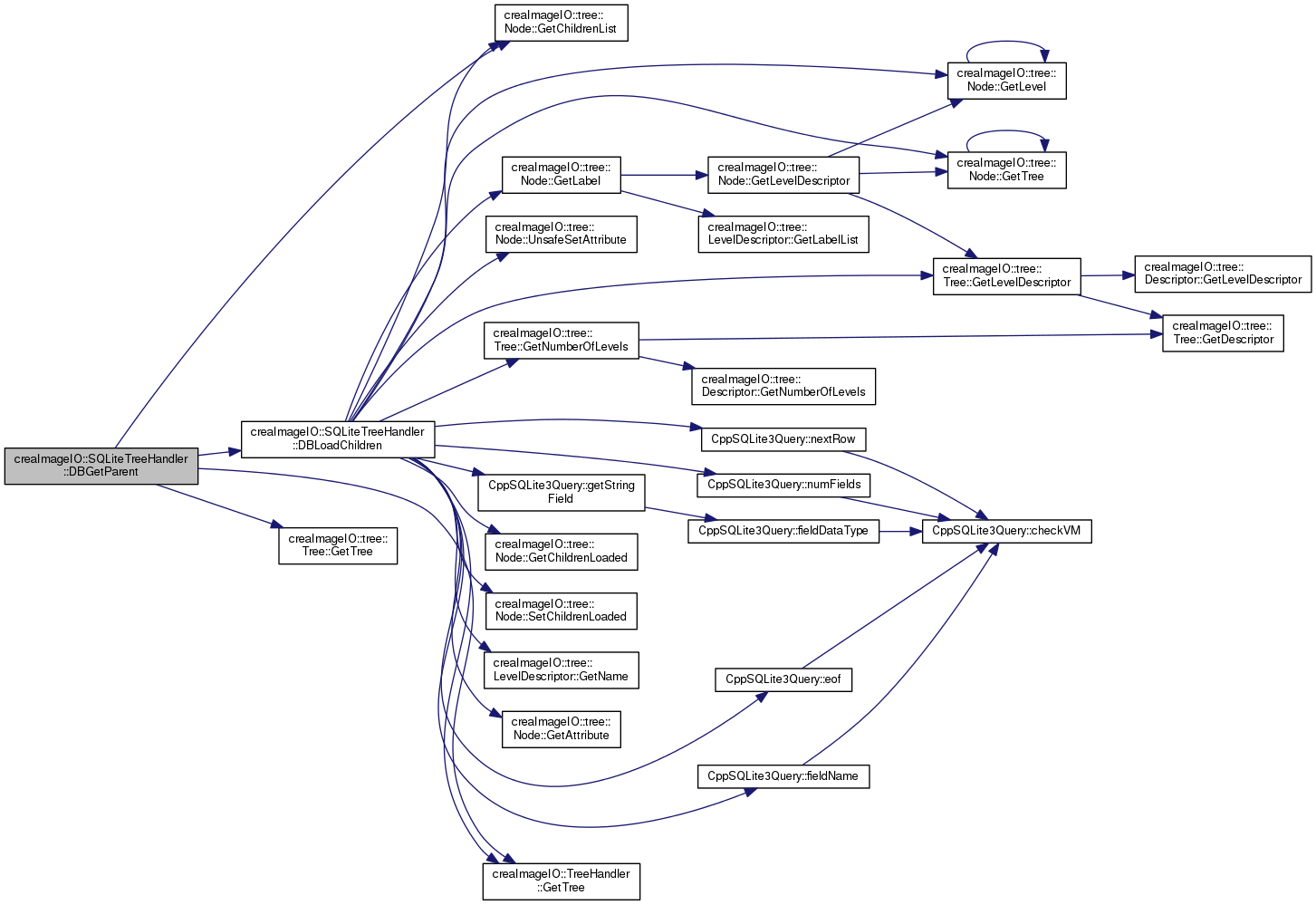

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBGraftToParent	(	tree::Node *	parent,
		const AttributeMapType &	attr
	)

protected

Graft the branch defined by the attributes to the parent.

Definition at line 750 of file creaImageIOSQLiteTreeHandler.cpp.

References DBInsert(), creaImageIO::tree::Node::GetAttribute(), creaImageIO::tree::Node::GetLevel(), GetNumberOfChildren(), creaImageIO::tree::Tree::GetNumberOfLevels(), creaImageIO::TreeHandler::GetTree(), creaImageIO::tree::Node::SetAttribute(), SetAttribute(), and creaImageIO::tree::Node::SetChildrenLoaded().

Referenced by AddBranch().

   {
     //    std::cout <<"Grafting to parent '"<<parent->GetLabel()
     //             <<"'"<<std::endl;

     for (int level = parent->GetLevel()+1;
          level < GetTree().GetNumberOfLevels();
          level++)
       {
         // Create Node
         tree::Node* child = new tree::Node(parent,attr);
         child->SetChildrenLoaded(true);
         if (level>1)
           {
             int nc = GetNumberOfChildren(parent)+1;

             //  std::cout<<"Number of children "<<parent->GetNumberOfChildren()<<std::endl;
             std::stringstream out;
             out << nc;
             SetAttribute(parent,"NumberOfChildren",out.str());
           }

         // Set PARENT_ID if necessary
         if ( parent->GetLevel()>0 )
           child->SetAttribute("PARENT_ID",parent->GetAttribute("ID"));

         // Insert in DB
         DBInsert(child);

         // Down one level
         parent = child;
           }
   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::DBImportTreeDescription ( )

protected

Import the Tree::Description from database (verifies the structure)

Definition at line 444 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Descriptor::Add(), creaImageIO::tree::Descriptor::Clear(), creaImageIO::tree::Tree::CopyAttributeDescriptorList(), CppSQLite3Query::eof(), CppSQLite3Query::fieldName(), creaImageIO::tree::Tree::GetAttributeDescriptorList(), creaImageIO::tree::Tree::GetDescriptor(), CppSQLite3Query::getIntField(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), CppSQLite3Query::getStringField(), creaImageIO::TreeHandler::GetTree(), GimmickMessage, mDB, CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), QUERYDB, CppSQLite3DB::tableExists(), and creaImageIO::tree::Node::UnsafeSetAttribute().

Referenced by DBOpen().

   {
     GimmickMessage(1,"Importing tree description for database ..."
                    <<std::endl);

     // Test table 'LEVELS' existence
     if ( ! mDB->tableExists("LEVELS") )
       {
         GimmickMessage(1,"!! ERROR : Table 'LEVELS' does not exist"
                        <<std::endl);
         return false;
       }

     tree::Descriptor& desc = GetTree().GetDescriptor();
     // clears the existing one
     desc.Clear();

     int nblevel = 0;
     std::string query = "SELECT * FROM LEVELS";
     CppSQLite3Query q;
     QUERYDB(query,q);

     while (!q.eof())
       {
         std::string name = q.getStringField(0);
         GimmickMessage(2," * Importing level '"<<name<<"'"<<std::endl);
         desc.Add(LevelDescriptor(name));
         nblevel++;
         q.nextRow();
       }

     for (int level = 0; level < nblevel; ++level )
       {
         std::string table = GetTree().GetLevelDescriptor(level).GetName();
         table += "_Attributes";
         // Test table 'LEVELS' existence
         if ( ! mDB->tableExists(table.c_str()) )
           {
             GimmickMessage(1,"!! ERROR : Table '"<<table<<"' does not exist"
                            <<std::endl);
             return false;
           }

         std::string query = "SELECT * FROM ";
         query += table;
         CppSQLite3Query q;
         QUERYDB(query,q);

         GimmickMessage(2," * Level '"
                        <<GetTree().GetLevelDescriptor(level).GetName()
                        <<"'"<<std::endl);

         // Test that ID and PARENT_ID mandatory attributes exist
         bool ID_found = false;
         bool PARENT_ID_found = false;
         if (level==0) ID_found = true;
         if (level<=1) PARENT_ID_found = true;

         while (!q.eof())
           {
             std::string key(q.getStringField(0));
             std::string name(q.getStringField(1));
             GimmickMessage(2,"  - Importing attribute '"<<key<<"' '"<<name
                            <<"'"<<std::endl);
             desc.Add
               (AttributeDescriptor( key, // Key
                                     name, // Name
                                     q.getIntField(2), // Group
                                     q.getIntField(3), // Element
                                     q.getIntField(4) // Flags
                                     ),level);
             if ( key == "ID" )
               {
                 ID_found = true;
               }
             if ( key == "PARENT_ID" )
               {
                 PARENT_ID_found = true;
               }
             q.nextRow();
           }

         if ( ! (ID_found || PARENT_ID_found ) )
           {
             GimmickMessage(1,"!! ERROR : Table '"<<table
                            <<"' does not contain mandatory attribute ID or PARENT_ID"
                            <<std::endl);
             return false;

           }
                  GetTree().CopyAttributeDescriptorList(level);
       }


     // Create the attributes table for Root (i.e. Tree)
     LevelDescriptor::AttributeDescriptorListType::const_iterator a;
     for (a = GetTree().GetAttributeDescriptorList(0).begin();
          a!= GetTree().GetAttributeDescriptorList(0).end();
          ++a)
       {

         GetTree().UnsafeSetAttribute( a->GetKey(), "" );
       }

     // Reading Root attributes
     // Query DB
     query = "SELECT * FROM ";
     query += GetTree().GetLevelDescriptor(0).GetName();
     QUERYDB(query,q);

     for (int fld = 0; fld < q.numFields(); fld++)
       {
         GetTree().UnsafeSetAttribute(q.fieldName(fld),
                                      q.getStringField(fld));
       }

     GimmickMessage(1,"Importing tree description from database ... OK"
                    <<std::endl);
     return true;
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBInsert ( tree::Node * n )

protected

Inserts the Node in the database.

Definition at line 728 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Node::GetLabel(), creaImageIO::tree::Node::GetLevel(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::TreeHandler::GetTree(), GimmickMessage, CppSQLite3DB::lastRowId(), mDB, creaImageIO::tree::Node::SetAttribute(), SQLAppendAttributesValues(), and UPDATEDB.

Referenced by DBCreate(), and DBGraftToParent().

   {
     GimmickMessage(2,"Inserting in DB '"<<n->GetLabel()
                    <<"'"<<std::endl);
     std::string val;
     SQLAppendAttributesValues(n,val);
     std::string insert("INSERT INTO ");
     insert += GetTree().GetLevelDescriptor(n->GetLevel()).GetName();
     insert += " " + val + ";";

     UPDATEDB(insert);

     // Store DB id of newly created node;
     //long lastrow = mDB->lastRowId();
     std::stringstream ri;
     ri << mDB->lastRowId();
     n->SetAttribute("ID",ri.str());
   }

Here is the call graph for this function:

Here is the caller graph for this function:

int creaImageIO::SQLiteTreeHandler::DBLoadChildren	(	tree::Node *	parent,
		int	numberoflevels = `1`
	)

protected

Loads the children of Node parent.

If children not loaded : do it and recurse

Definition at line 649 of file creaImageIOSQLiteTreeHandler.cpp.

Referenced by DBGetParent(), and LoadChildren().

   {
     if (node->GetLevel()+1 >= node->GetTree()->GetNumberOfLevels() )
       return 0;

     GimmickMessage(2,"Loading children of '"<<node->GetLabel()
                    <<"'"<<std::endl);

     int nbloaded = 0;
     // If children loaded we do not have to do it but we need to recurse
     // in order to load the children's children if necessary, and so on...
     if (node->GetChildrenLoaded())
       {
         // Iterate the children

         tree::Node::ChildrenListType::iterator i;
         for (i = node->GetChildrenList().begin();
              i!= node->GetChildrenList().end();
              ++i)
           {
             nbloaded += DBLoadChildren(*i,numberoflevels-1);
           }
         node->SetChildrenLoaded(true);
         return nbloaded;

       }
         else
         {

     // Query DB
     int level = node->GetLevel();
     std::string query = "SELECT * FROM ";

     query += GetTree().GetLevelDescriptor(level+1).GetName();
     if (level>0)
       {
         query += " WHERE PARENT_ID='" + node->GetAttribute("ID")
           + "'";
       }
 GimmickDebugMessage(1,                                  "query : '"                         <<query                                         <<std::endl);
     CppSQLite3Query q;
     QUERYDB(query,q);

     //int p=0;
     while (!q.eof())
       {

         //      std::cout << "DBLoadCh : creating node level "<<level+1<<std::endl;

         nbloaded++;
         Node* n = new Node(node);
         for (int fld = 0; fld < q.numFields(); fld++)
           {
             n->UnsafeSetAttribute(q.fieldName(fld),q.getStringField(fld));
           }

         // recurse
         if ( numberoflevels != 1 )
           {
             //  msw[2].Pause();
             nbloaded += DBLoadChildren(n, numberoflevels-1);
             //      msw[2].Resume();
           }
         // next entry in db
         q.nextRow();
       }

     node->SetChildrenLoaded(true);


     //    msw[2].Pause();
     return nbloaded;
         }
   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::DBOpen ( )

protected

Open the database.

Definition at line 258 of file creaImageIOSQLiteTreeHandler.cpp.

References DBImportTreeDescription(), CppSQLite3Exception::errorCode(), CppSQLite3Exception::errorMessage(), CppSQLite3DB::execDML(), GetFileName(), GimmickDebugMessage, GimmickError, GimmickMessage, mDB, and CppSQLite3DB::open().

Referenced by Open().

   {
     GimmickMessage(1,"Opening SQLite database '"<<GetFileName()
                    <<"' ... "<<std::endl);
     // OPENING FILE
     if (!boost::filesystem::exists(GetFileName()))
       {
         return false;
       }

     try
       {
         mDB->open(GetFileName().c_str());
         mDB->execDML("pragma synchronous=off;");
       }
     catch (CppSQLite3Exception& e)
       {
         GimmickError("Opening '"<<GetFileName()<<"' : "
                      << e.errorCode() << ":"
                      << e.errorMessage());
         return false;
       }
     // IMPORT TREE DESCRIPTION (AND TEST DB VALIDITY)
     if (!DBImportTreeDescription())
       {
         return false;
       }

     GimmickDebugMessage(1,"Opening SQLite database '"<<GetFileName()
                    <<"' ... OK"<<std::endl);
     return true;
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBRecursiveRemoveNode ( tree::Node * node )

protected

Recursively Removes the nodes whose parent is given as a parameter.

Definition at line 835 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Node::GetAttribute(), creaImageIO::tree::Node::GetChildrenList(), creaImageIO::tree::Node::GetLevel(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::Node::GetNumberOfChildren(), creaImageIO::tree::Tree::GetNumberOfLevels(), creaImageIO::TreeHandler::GetTree(), and UPDATEDB.

Referenced by DBRecursiveRemoveNode(), and Remove().

   {

     std::string query = "DELETE FROM ";
         query += GetTree().GetLevelDescriptor(node->GetLevel()).GetName();
     query += " WHERE ID='"+ node->GetAttribute("ID") + "';";
         UPDATEDB(query);

         if(node->GetNumberOfChildren()!=0)
         {
                 Node::ChildrenListType::iterator i;
                 for (i  = node->GetChildrenList().begin();
                 i != node->GetChildrenList().end();
                 i++)
                 {
                 DBRecursiveRemoveNode((*i));
                 }
         }
         else if(node->GetLevel()<GetTree().GetNumberOfLevels()-1)
         {
                 DBRecursiveRemoveNode(node->GetLevel()+1,node->GetAttribute("ID"));
     }
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBRecursiveRemoveNode	(	int	level,
		std::string	parentId
	)

protected

Recursively Removes the nodes found in the given level with the given parent id.

Definition at line 860 of file creaImageIOSQLiteTreeHandler.cpp.

References DBDelete(), DBRecursiveRemoveNode(), CppSQLite3Query::eof(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), creaImageIO::tree::Tree::GetNumberOfLevels(), CppSQLite3Query::getStringField(), creaImageIO::TreeHandler::GetTree(), CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), and QUERYDB.

   {
     std::stringstream out;
         std::stringstream result;
         out<<"SELECT ID FROM "<<GetTree().GetLevelDescriptor(level).GetName()<<" WHERE PARENT_ID='"<<parentId<<"'";

         CppSQLite3Query q;
         QUERYDB(out.str(),q);

         while (!q.eof())
           {
             for (int fld = 0; fld < q.numFields(); fld++)
               {
                           result<<q.getStringField(fld)<<"#";
               }
             q.nextRow();
           }
           std::string res=result.str();
           size_t ini=0;
           size_t fin=0;
           while(fin<res.size()-1)
           {
            fin=res.find('#',ini);
            DBDelete(GetTree().GetLevelDescriptor(level).GetName(),"ID",res.substr(ini,fin-ini));
           if(level<GetTree().GetNumberOfLevels()-1)
           {
                 DBRecursiveRemoveNode(level+1,res.substr(ini,fin-ini));
           }
            ini=fin+1;
           }


   }

Here is the call graph for this function:

bool creaImageIO::SQLiteTreeHandler::DBSetAttribute	(	tree::Node *	n,
		const std::string &	key,
		const std::string &	value
	)

protected

Sets an attribute of a Node and updates the database.

Sets an attribute of a Node.

Definition at line 789 of file creaImageIOSQLiteTreeHandler.cpp.

References convert(), creaImageIO::tree::Node::GetAttribute(), creaImageIO::tree::Node::GetLabel(), creaImageIO::tree::Node::GetLevel(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::TreeHandler::GetTree(), GimmickMessage, creaImageIO::tree::Node::SetAttribute(), and UPDATEDB.

Referenced by SetAttribute().

   {
     GimmickMessage(3,"Setting Attribute of '"<<n->GetLabel()<<
                    "' "<<key<<"='"<<value<<"'"<<std::endl);

     n->SetAttribute(key,value);
     std::string sql = "UPDATE ";
     sql += GetTree().GetLevelDescriptor(n->GetLevel()).GetName();
     sql += " SET ";
     sql += key;
     sql += " = '";
     sql += convert(value);
     sql += "' WHERE ID = '";
     sql += n->GetAttribute("ID");
         sql +="'";
     //    sql += " LIMIT 1";
     UPDATEDB(sql);
         return true;
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::DBSetAttribute	(	const std::string &	levelDescriptor,
		const std::string &	key,
		const std::string &	value,
		const std::string &	searchParam,
		const std::string &	searchVal
	)

protected

Sets an attribute and updates the database.

Sets an attribute of a Node.

Definition at line 813 of file creaImageIOSQLiteTreeHandler.cpp.

References UPDATEDB.

   {

     std::string sql = "UPDATE ";
     sql += levelDescriptor;
     sql += " SET ";
     sql += key;
     sql += " = '";
     sql += value;
     sql += "' WHERE ";
         sql += searchParam;
         sql += " = '";
     sql += searchVal;
         sql += "'";
         std::cout<<sql<<std::endl;
     UPDATEDB(sql);
   }

void creaImageIO::SQLiteTreeHandler::DeleteTuple	(	std::string	levelDescriptor,
		std::string	key,
		std::string	value
	)

virtual

Deletes a tuple.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 191 of file creaImageIOSQLiteTreeHandler.cpp.

References DBDelete().

   {
     DBDelete(levelDescriptor,key,value);
   }

Here is the call graph for this function:

bool creaImageIO::SQLiteTreeHandler::Destroy ( )

virtual

Destroys the 'source'.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 99 of file creaImageIOSQLiteTreeHandler.cpp.

   {
     return false;
   }

void creaImageIO::SQLiteTreeHandler::EndTransaction ( )

virtual

Commits results and ends transaction.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 1130 of file creaImageIOSQLiteTreeHandler.cpp.

References UPDATEDB.

     {
        std::stringstream out;
                 out<<"commit transaction;";
         UPDATEDB(out.str());
         }

void creaImageIO::SQLiteTreeHandler::getAllAttributes	(	std::string	i_filename,
		std::map< std::string, std::string > &	i_results
	)

virtual

get all attributes from database for a given file

Implements creaImageIO::TreeHandler.

Definition at line 980 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Tree::GetAttributeDescriptorList(), GetAttributes(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), creaImageIO::tree::Tree::GetNumberOfLevels(), creaImageIO::TreeHandler::GetTree(), and GetUpLevelNodeId().

   {
           int level=GetTree().GetNumberOfLevels()-1;

           std::string search = i_filename;
           std::string param = "FullFileName";
           std::string name;

           std::string id;
           std::set<std::string> pid;
           std::vector<AttributeDescriptor> attr;
           std::vector<AttributeDescriptor>::iterator it_attr;
           std::vector<std::string> values;
           std::vector<std::string>::iterator it_val;




           while(level>1)
           {
                   attr = GetTree().GetAttributeDescriptorList(level,1);

                   name = GetTree().GetLevelDescriptor(level).GetName();
                   std::vector<std::string> values;
                   GetUpLevelNodeId(level, param,search,id);
                   GetAttributes(name, param,search,attr, values);
                   for(it_attr = attr.begin(), it_val = values.begin(); it_attr != attr.end(); it_attr++, it_val++)
                   {
                                         i_results[(*it_attr).GetKey()] = (*it_val).c_str();
                   }
                   search = id;
                   param = "ID";
                   level --;
           }
   }

Here is the call graph for this function:

void creaImageIO::SQLiteTreeHandler::GetAttribute	(	std::string	levelDescriptor,
		std::string	searchParam,
		std::string	searchVal,
		std::string	key,
		std::string &	result
	)

virtual

Returns the attribute requested. Useful for synchronization.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 907 of file creaImageIOSQLiteTreeHandler.cpp.

References CppSQLite3Query::eof(), CppSQLite3Query::getStringField(), CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), and QUERYDB.

   {
         std::stringstream out;
         std::stringstream results;
         out<<"SELECT "<<key<<" FROM "<<levelDescriptor;
         if(searchParam!="")
         {
                 out<<" WHERE "<<searchParam<<"='"<<searchVal<<"'";
         }

         CppSQLite3Query q;
         QUERYDB(out.str(),q);


         while (!q.eof())
           {
             for (int fld = 0; fld < q.numFields(); fld++)
               {
                           results<<q.getStringField(fld);
                           if(searchParam=="")
                           {
                                   results<<"#";
                           }
               }
             q.nextRow();
           }
         result=results.str();

   }

Here is the call graph for this function:

void creaImageIO::SQLiteTreeHandler::GetAttributes	(	std::string	name,
		std::string	i_id,
		std::string	i_value,
		tree::LevelDescriptor::AttributeDescriptorListType	i_attr,
		std::vector< std::string > &	i_results
	)

get selected attributes from database for a given file

Definition at line 1019 of file creaImageIOSQLiteTreeHandler.cpp.

References CppSQLite3Query::eof(), CppSQLite3Query::getStringField(), CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), and QUERYDB.

Referenced by getAllAttributes().

          {
                  //SELECT t1.ArtistName,CDs.Title FROM Artists t1, CDs WHERE t1.ArtistID=CDs.ArtistID
                   std::stringstream out;
                   std::stringstream results;
                   out<<"SELECT ";
                   tree::LevelDescriptor::AttributeDescriptorListType::iterator it = i_attr.begin();
                   std::string query ="";
                   for(; it != i_attr.end(); it++)
                   {
                           query += (*it).GetKey();
                           query +=" ,";
                   }
                   query = query.substr(0, query.size()-1);
                   out << query;
                   out << "FROM "<<name;
                   out<<" WHERE "<<i_id <<"='"<<i_value<<"'";
                   CppSQLite3Query q;
                   QUERYDB(out.str(),q);
                   while (!q.eof())
                   {
                         for (int fld = 0; fld < q.numFields(); fld++)
                         {
                                 i_results.push_back(q.getStringField(fld));
                         }
                         q.nextRow();
                   }
         }

Here is the call graph for this function:

Here is the caller graph for this function:

const std::string& creaImageIO::SQLiteTreeHandler::GetFileName ( ) const

inline

Returns the sqlite db file name.

Definition at line 58 of file creaImageIOSQLiteTreeHandler.h.

References mFileName.

Referenced by DBCreate(), and DBOpen().

58 { return mFileName; }

Here is the caller graph for this function:

unsigned int creaImageIO::SQLiteTreeHandler::GetNumberOfChildren ( tree::Node * n )

virtual

Returns the number of children of the Node WITHOUT LOADING THEM

Reimplemented from creaImageIO::TreeHandler.

Definition at line 941 of file creaImageIOSQLiteTreeHandler.cpp.

References CppSQLite3Query::eof(), creaImageIO::tree::Node::GetAttribute(), CppSQLite3Query::getIntField(), creaImageIO::tree::Node::GetLevel(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), creaImageIO::TreeHandler::GetTree(), CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), and QUERYDB.

Referenced by DBGraftToParent().

   {
     // Query DB
     int nb=0;
     int level = n->GetLevel();

     if(level<GetTree().GetNumberOfLevels()&& level>0)
       {
         std::string query = "SELECT NumberOfChildren FROM ";
         query += GetTree().GetLevelDescriptor(level).GetName();
         if (level>0)
           {
             query += " WHERE ID='" + n->GetAttribute("ID")
               + "'";
           }
         CppSQLite3Query q;
         QUERYDB(query,q);


         while (!q.eof())
           {
             for (int fld = 0; fld < q.numFields(); fld++)
               {
                 nb=q.getIntField(fld);
               }
             q.nextRow();
           }
       }
     /*
     if(nb==0)
       {
         nb=1;
       }
     */
     return nb;
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::GetTopLevelNodeId	(	const std::string &	searchParam,
		const std::string &	searchValue,
		std::string &	parent_id
	)

virtual

====================================================================

Returns the top level node id for the given search param and search value

Reimplemented from creaImageIO::TreeHandler.

Definition at line 1072 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Tree::GetNumberOfLevels(), creaImageIO::TreeHandler::GetTree(), and GetUpLevelNodeId().

   {
           int level=GetTree().GetNumberOfLevels()-1;
           std::string sp=searchParam.c_str();
           std::string sv=searchValue.c_str();

           while(level>1)
           {
                 GetUpLevelNodeId(level, sp, sv, parent_id);
                 level--;
                 sp = "ID";
                 sv = parent_id;
           }
 //              std::stringstream out;
 //              std::stringstream results;
 //              out<<"SELECT PARENT_ID FROM "<<GetTree().GetLevelDescriptor(level).GetName();
 //              out<<" WHERE "<<sp<<"='"<<sv<<"'";
 //              CppSQLite3Query q;
 //              QUERYDB(out.str(),q);
 //
 //
 //              while (!q.eof())
 //              {
 //                      for (int fld = 0; fld < q.numFields(); fld++)
 //                      {
 //                              results<<q.getStringField(fld);
 //                      }
 //                      q.nextRow();
 //              }*/
 //              level=level-1;
 //              sp="ID";
 //              sv=results.str();
 //        }
 //        parent_id=sv;

   }

Here is the call graph for this function:

tree::Tree& creaImageIO::TreeHandler::GetTree ( )

inlineinherited

Returns the Tree handled.

Definition at line 63 of file creaImageIOTreeHandler.h.

References creaImageIO::TreeHandler::mTree.

Referenced by creaImageIO::TreeHandlerImageAdder::AddFile(), creaImageIO::Synchronizer::AttributesMatch(), creaImageIO::TreeHandlerImageAdder::CheckAttributes(), creaImageIO::WxTreeView::CreateCtrl(), creaImageIO::Gimmick::createDB(), creaImageIO::WxGimmickView::CreateTreeView(), DBCreate(), DBGetParent(), DBGraftToParent(), DBImportTreeDescription(), DBInsert(), DBLoadChildren(), DBRecursiveRemoveNode(), DBSetAttribute(), creaImageIO::TreeHandlerImageAdder::DeleteDriveFromMainDB(), getAllAttributes(), creaImageIO::WxTreeView::GetAttributes(), GetNumberOfChildren(), GetTopLevelNodeId(), GetUpLevelNodeId(), creaImageIO::TreeHandlerImageAdder::isAttributeExist(), LoadChildren(), creaImageIO::WxTreeView::OnDumpTags(), creaImageIO::WxTreeView::OnEditField(), creaImageIO::WxTreeView::OnLocalCopy(), creaImageIO::Gimmick::Print(), creaImageIO::WxTreeView::RemoveSelected(), SetAttribute(), SQLAppendAttributesDefinition(), creaImageIO::TreeHandlerImageAdder::Synchronize(), and creaImageIO::WxTreeView::WxTreeView().

63 { return mTree; }

Here is the caller graph for this function:

const tree::Tree& creaImageIO::TreeHandler::GetTree ( ) const

inlineinherited

Returns the Tree handled (const)

Definition at line 65 of file creaImageIOTreeHandler.h.

References creaImageIO::TreeHandler::mTree.

65 { return mTree; }

void creaImageIO::SQLiteTreeHandler::GetUpLevelNodeId	(	int	level,
		const std::string &	searchParam,
		const std::string &	searchValue,
		std::string &	parent_id
	)

get Id for the up level node

Definition at line 1048 of file creaImageIOSQLiteTreeHandler.cpp.

References CppSQLite3Query::eof(), creaImageIO::tree::Tree::GetLevelDescriptor(), creaImageIO::tree::LevelDescriptor::GetName(), CppSQLite3Query::getStringField(), creaImageIO::TreeHandler::GetTree(), CppSQLite3Query::nextRow(), CppSQLite3Query::numFields(), and QUERYDB.

Referenced by getAllAttributes(), and GetTopLevelNodeId().

    {
           std::string sp=searchParam.c_str();
           std::string sv=searchValue.c_str();
           std::stringstream out;
           std::stringstream results;
           out<<"SELECT PARENT_ID FROM "<<GetTree().GetLevelDescriptor(level).GetName();
           out<<" WHERE "<<sp<<"='"<<sv<<"'";
           CppSQLite3Query q;
           QUERYDB(out.str(),q);
           while (!q.eof())
           {
                 for (int fld = 0; fld < q.numFields(); fld++)
                 {
                         results<<q.getStringField(fld);
                 }
                 q.nextRow();
           }
           parent_id = results.str();

   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::GetWritable ( ) const

inlineprivate

Definition at line 264 of file creaImageIOSQLiteTreeHandler.h.

References mWritable.

264 { return mWritable; }

virtual bool creaImageIO::SQLiteTreeHandler::IsReadable ( )

inlinevirtual

Is the 'source' readable ?

Reimplemented from creaImageIO::TreeHandler.

Definition at line 64 of file creaImageIOSQLiteTreeHandler.h.

64 { return true; }

virtual bool creaImageIO::SQLiteTreeHandler::IsWritable ( )

inlinevirtual

Is the 'source' writable ?

Reimplemented from creaImageIO::TreeHandler.

Definition at line 66 of file creaImageIOSQLiteTreeHandler.h.

66 { return true; }

int creaImageIO::SQLiteTreeHandler::LoadChildren	(	tree::Node *	parent,
		int	maxlevel
	)

virtual

Recursively loads the children of node 'parent' until maxlevel.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 107 of file creaImageIOSQLiteTreeHandler.cpp.

References DBLoadChildren(), creaImageIO::TreeHandler::GetTree(), and creaImageIO::tree::Tree::GetTree().

   {
         //mDB->execDML("PRAGMA synchronous=ON ");
     if (parent==0) parent = GetTree().GetTree();
     return DBLoadChildren(parent,maxlevel);
   }

Here is the call graph for this function:

bool creaImageIO::SQLiteTreeHandler::Open ( bool writable = false )

virtual

Opens an existing 'source'.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 72 of file creaImageIOSQLiteTreeHandler.cpp.

References DBOpen(), and SetWritable().

Referenced by creaImageIO::Gimmick::createDB().

   {

           //sqlite3_exec(mDB, "PRAGMA synchronous=OFF ", NULL, 0, &errMsg);
     SetWritable(writable);
     return DBOpen();
   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::SQLiteTreeHandler::Remove ( tree::Node * )

virtual

Removes the node and its descendants.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 136 of file creaImageIOSQLiteTreeHandler.cpp.

References DBRecursiveRemoveNode(), creaImageIO::tree::Node::GetLevel(), creaImageIO::tree::Node::GetParent(), creaImageIO::tree::Node::RemoveChildrenFromList(), and SetAttribute().

    {
    DBRecursiveRemoveNode(node);

     //    std::cout << "DELETE"<<std::endl;
    bool remove=false;
    tree::Node* parent=node->GetParent();
     if (parent)
       {
         int nC = parent->RemoveChildrenFromList(node);
         if(nC>0 && parent->GetLevel()>0)
         {
                 std::stringstream out;
                 out <<nC;
                 SetAttribute(parent,"NumberOfChildren",out.str());
         }
         else
         {
                 remove=true;
         }

       }
     delete node;
         if(remove&&parent->GetLevel()>0)
         {
                 Remove(parent);
         }
     //    std::cout << "DELETE OK"<<std::endl;
     return true;
    }

Here is the call graph for this function:

void creaImageIO::SQLiteTreeHandler::RemoveEntries	(	const std::string	i_table,
		const std::string	i_attribute,
		const std::string	i_operand,
		const std::string	i_val
	)

virtual

Reimplemented from creaImageIO::TreeHandler.

Definition at line 1111 of file creaImageIOSQLiteTreeHandler.cpp.

References UPDATEDB.

     {
         std::stringstream query;
                 query<<"DELETE  FROM "<<i_table<<" WHERE "<<i_attribute<<" "<<i_operand<<" '"<<i_val<<"'";
         UPDATEDB(query.str());
         }

bool creaImageIO::SQLiteTreeHandler::SetAttribute	(	tree::Node *	n,
		const std::string &	key,
		const std::string &	value
	)

virtual

Sets an attribute of a Node.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 171 of file creaImageIOSQLiteTreeHandler.cpp.

References DBSetAttribute(), creaImageIO::TreeHandler::GetTree(), and creaImageIO::tree::Tree::GetTree().

Referenced by creaImageIO::Gimmick::createDB(), DBGraftToParent(), and Remove().

   {
     if (n==0) n=GetTree().GetTree();
     return DBSetAttribute(n,key,value);
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::SetAttribute	(	const std::string &	levelDescriptor,
		const std::string &	key,
		const std::string &	value,
		const std::string &	searchParam,
		const std::string &	searchVal
	)

virtual

Sets an attribute.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 181 of file creaImageIOSQLiteTreeHandler.cpp.

References DBSetAttribute().

   {
         DBSetAttribute(levelDescriptor,key,value,searchParam, searchVal);
   }

Here is the call graph for this function:

void creaImageIO::SQLiteTreeHandler::SetWritable ( bool w )

inlineprivate

Definition at line 263 of file creaImageIOSQLiteTreeHandler.h.

References mWritable.

Referenced by Create(), and Open().

263 { mWritable = w; }

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::SQLAppendAttributesDefinition	(	int	level,
		std::string &	s
	)

protected

Appends to string s the SQL command to create the attributes of a given level.

Definition at line 426 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Tree::GetAttributeDescriptorList(), and creaImageIO::TreeHandler::GetTree().

Referenced by DBCreate().

   {
     LevelDescriptor::AttributeDescriptorListType::const_iterator i;
     for (i  = GetTree().GetAttributeDescriptorList(level).begin();
          i != GetTree().GetAttributeDescriptorList(level).end();
          ++i)
       {
         //      if (i->second.flags==1) continue;
         s += ",\n";
         s += i->GetKey();
         s += " text";
       }
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::SQLAppendAttributesValues	(	tree::Node *	n,
		std::string &	s
	)

protected

Appends to string s the SQL command to set the attributes values.

Definition at line 587 of file creaImageIOSQLiteTreeHandler.cpp.

References creaImageIO::tree::Node::GetAttributeMap(), GimmickMessage, and creaImageIO::SQLformat().

Referenced by DBInsert().

   {
     GimmickMessage(4,"SQLAppendAttributesValues"<<std::endl);
     std::string atts="";
     std::string values="";
         std::string out ="";
     tree::Node::AttributeMapType::iterator i;
     for (i =  n->GetAttributeMap().begin();
          i != n->GetAttributeMap().end();
          i++)
       {
         if (i->first=="ID")
           {
             continue;
           }

         atts += "'" + i->first + "'";
         SQLformat(i->second, out);
         values += "'" + out + "'";
         atts += ",";
         values += ",";
         GimmickMessage(4,"'"<<i->first<<"' = '"<<i->second<<"'"<<std::endl);
       }
     atts[atts.size()-1]=' ';
     values[values.size()-1]=' ';

     str = "("+atts+") VALUES ("+values+")";
     GimmickMessage(4,"Result = '"<<str<<"'"<<std::endl);
   }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::SQLiteTreeHandler::UnLoad ( tree::Node * n )

virtual

Unloads the Node and its descendants.

Reimplemented from creaImageIO::TreeHandler.

Definition at line 119 of file creaImageIOSQLiteTreeHandler.cpp.

120 {

121 }

Member Data Documentation

CppSQLite3DB* creaImageIO::SQLiteTreeHandler::mDB

private

The DB.

Definition at line 258 of file creaImageIOSQLiteTreeHandler.h.

Referenced by DBCreate(), DBImportTreeDescription(), DBInsert(), DBOpen(), SQLiteTreeHandler(), and ~SQLiteTreeHandler().

std::string creaImageIO::SQLiteTreeHandler::mFileName

private

The physical location associated to the DicomDatabase (directory, db file...)

Definition at line 260 of file creaImageIOSQLiteTreeHandler.h.

Referenced by GetFileName().

bool creaImageIO::SQLiteTreeHandler::mIsAdding

private

Definition at line 265 of file creaImageIOSQLiteTreeHandler.h.

Referenced by SQLiteTreeHandler().

bool creaImageIO::SQLiteTreeHandler::mWritable

private

Is the DB writable ?

Definition at line 262 of file creaImageIOSQLiteTreeHandler.h.

Referenced by GetWritable(), and SetWritable().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOSQLiteTreeHandler.h
/home/davila/Creatis/All/creatools_source/creaImageIO/src/creaImageIOSQLiteTreeHandler.cpp

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
