#include <interfSegmentationPanels.h>

Inheritance diagram for interfSegmentationPanelVTK:

Collaboration diagram for interfSegmentationPanelVTK:

Public Member Functions
	interfSegmentationPanelVTK (wxWindow *parent)

	~interfSegmentationPanelVTK ()

void	onSegmentationPressed (wxCommandEvent &event)

void	onSegmentationPressedITK (wxCommandEvent &event)

void	setLabel (wxString tmpString)

Private Member Functions
void	hideAxis ()

wxPanel *	getSegmentationPanel (wxWindow *parent)

void	onSegmentationOneSlice (wxCommandEvent &event)

void	onSegmentationAllSlice (wxCommandEvent &event)

Private Attributes
wxPanel *	configPanel

wxWindow *	infoWin

wxPanel *	segmentPanel

wxPanel *	spreadPanel

wxPanel *	segmentPanelITK

bool	axisshown

wxSlider *	_isovalue

mBarRange *	_mbarrange

wxSlider *	_sampling

wxStaticText *	_staticTextSegmentation

wxRadioBox *	methodRadiobox

Detailed Description

Definition at line 33 of file interfSegmentationPanels.h.

Constructor & Destructor Documentation

interfSegmentationPanelVTK::interfSegmentationPanelVTK ( wxWindow * parent )

Definition at line 29 of file interfSegmentationPanels.cxx.

References _isovalue, _mbarrange, _sampling, _staticTextSegmentation, interfMainPanel::GetImageDataSizeZ(), interfMainPanel::getImageRange(), interfMainPanel::getInstance(), methodRadiobox, onSegmentationAllSlice(), and onSegmentationOneSlice().

 : wxPanel(parent, -1, wxDefaultPosition, wxDefaultSize, wxBORDER_SUNKEN)
 {
         int sizeZ = interfMainPanel::getInstance()->GetImageDataSizeZ();

         double range[2];
         interfMainPanel::getInstance()->getImageRange(range);

         int min = (int)floor (range[0]);
         int max = (int)ceil (range[1]);

         wxButton *segmentationOneSliceBtn   = new wxButton(this,-1,_T("Current slice"), wxDefaultPosition, wxSize(200,35) );
         wxButton *segmentationAllSliceBtn   = new wxButton(this,-1,_T("All slices") ,wxDefaultPosition, wxSize(200,35) );
         _isovalue                           = new wxSlider(this, -1, 40 , min, max, wxDefaultPosition, wxSize(200,35), wxSL_HORIZONTAL|wxSL_LABELS, wxDefaultValidator);
         _sampling                           = new wxSlider(this, -1, 20 , 4, 50, wxDefaultPosition, wxSize(200,35), wxSL_HORIZONTAL|wxSL_LABELS, wxDefaultValidator);
         wxString lstOptions[3];
         lstOptions[0]=_T("A");
         lstOptions[1]=_T("B");
         lstOptions[2]=_T("C");
         methodRadiobox                      = new wxRadioBox(this, -1, _T("Method (find ctrl. Points)"), wxDefaultPosition, wxSize(200,45), 3 , lstOptions,  3, wxRA_SPECIFY_COLS);
         methodRadiobox->SetSelection(2);
         _staticTextSegmentation             = new wxStaticText(this,-1,_T("    "));

         _mbarrange                          = new mBarRange(this,70, 65);
         _mbarrange->SetMin(0);
         _mbarrange->SetStart(0);

         _mbarrange->SetOrientation( true );
         _mbarrange->setActiveStateTo(true);
         _mbarrange->setVisibleLabels( true );
         _mbarrange->setDeviceEndMargin(10);
         _mbarrange->setRepresentedValues( 0 , sizeZ );
         _mbarrange->setDeviceBlitStart(10,10);
         _mbarrange->setIfWithActualDrawed( false );
         _mbarrange->SetStart( 0 );
         _mbarrange->SetEnd( sizeZ );

         wxFlexGridSizer * sizer             = new wxFlexGridSizer(1);
         sizer->Add( new wxStaticText(this, -1, _T("Isovalue (Gray level)")), 1, wxGROW );
         sizer->Add( _isovalue, 1, wxGROW );
         sizer->Add( methodRadiobox , 1, wxGROW );
         sizer->Add( new wxStaticText(this, -1 ,_T("Sampling (%)")), 1, wxGROW );
         sizer->Add( _sampling, 1, wxGROW );
         sizer->Add( segmentationOneSliceBtn, 1, wxGROW );
         sizer->Add( new wxStaticText(this, -1, _T(" ")), 1, wxGROW );
         sizer->Add( _staticTextSegmentation, 1, wxGROW );
         sizer->Add( segmentationAllSliceBtn, 1, wxGROW );
         sizer->Add( _mbarrange, 1, wxGROW );

         this->SetSizer( sizer );
 //              panel->SetSize( sizePanel );
         this->SetSize( wxDefaultSize );
         this->SetAutoLayout( true );
         this->Layout();

 //_segmentationFrame->SetEventHandler( this );
         //segmentationOneSliceBtn->SetEventHandler( this );
         //segmentationAllSliceBtn->SetEventHandler( this );
         //panel->SetEventHandler(this);
         Connect( segmentationOneSliceBtn->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, (wxObjectEventFunction) &interfSegmentationPanelVTK::onSegmentationOneSlice);
         Connect( segmentationAllSliceBtn->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, (wxObjectEventFunction) &interfSegmentationPanelVTK::onSegmentationAllSlice);
 }

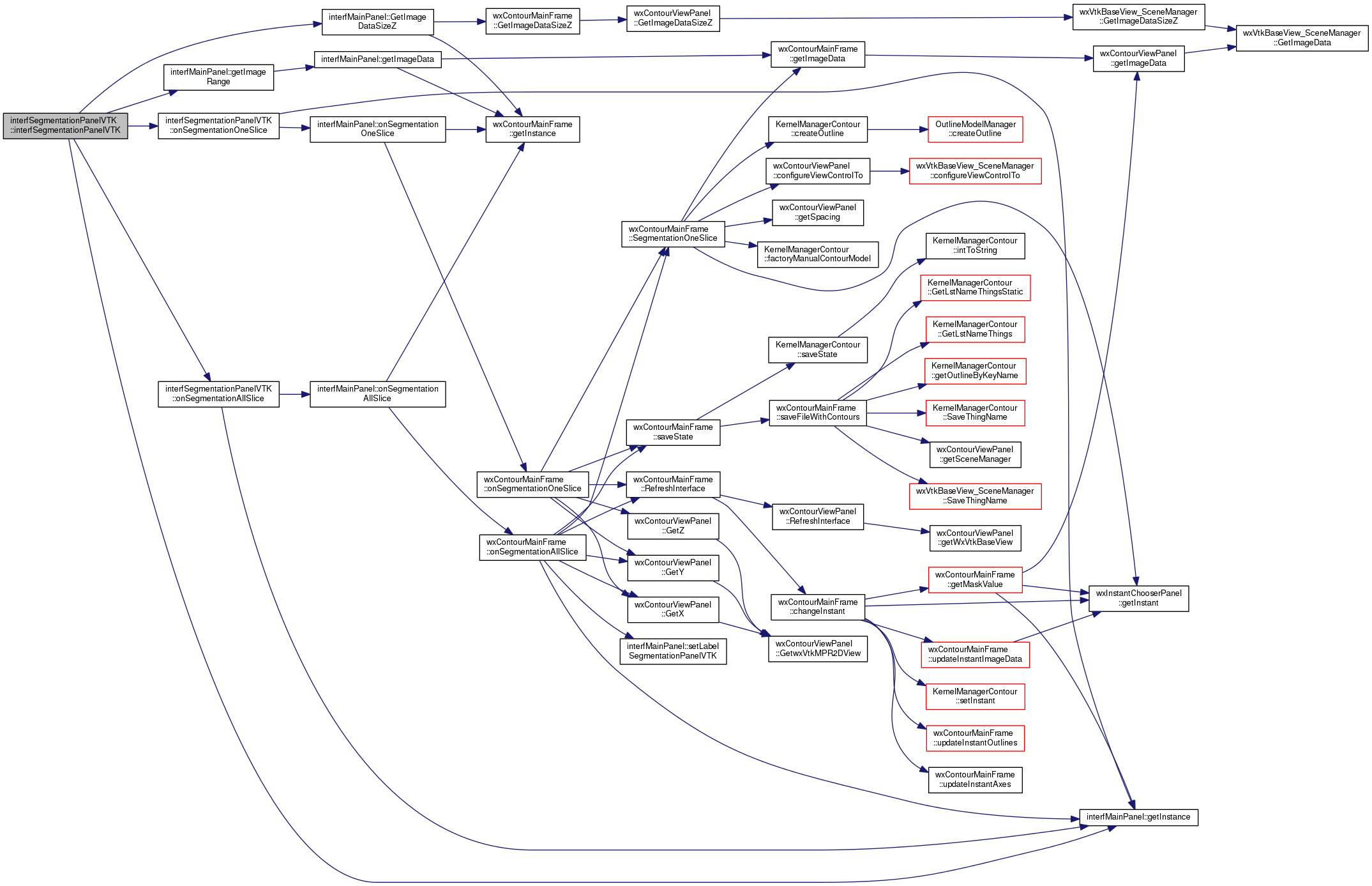

Here is the call graph for this function:

interfSegmentationPanelVTK::~interfSegmentationPanelVTK ( )

Definition at line 93 of file interfSegmentationPanels.cxx.

94 {

95 }

Member Function Documentation

wxPanel* interfSegmentationPanelVTK::getSegmentationPanel ( wxWindow * parent )

private

void interfSegmentationPanelVTK::hideAxis ( )

private

void interfSegmentationPanelVTK::onSegmentationAllSlice ( wxCommandEvent & event )

private

Definition at line 134 of file interfSegmentationPanels.cxx.

References _isovalue, _mbarrange, _sampling, interfMainPanel::getInstance(), methodRadiobox, and interfMainPanel::onSegmentationAllSlice().

Referenced by interfSegmentationPanelVTK().

 {
         int minZ=_mbarrange->GetStart();
         int maxZ=_mbarrange->GetEnd();

         int isovalue = _isovalue->GetValue();
         int sampling = _sampling->GetValue();
         int method   = methodRadiobox->GetSelection();

         interfMainPanel::getInstance()->onSegmentationAllSlice(minZ, maxZ, isovalue, sampling, method);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfSegmentationPanelVTK::onSegmentationOneSlice ( wxCommandEvent & event )

private

Definition at line 126 of file interfSegmentationPanels.cxx.

References _isovalue, _sampling, interfMainPanel::getInstance(), methodRadiobox, and interfMainPanel::onSegmentationOneSlice().

Referenced by interfSegmentationPanelVTK().

 {
         int isovalue = _isovalue->GetValue();
         int sampling = _sampling->GetValue();
         int method = methodRadiobox->GetSelection();
         interfMainPanel::getInstance()->onSegmentationOneSlice(isovalue, sampling, method);

 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfSegmentationPanelVTK::onSegmentationPressed ( wxCommandEvent & event )

Responds to the events of the buttons, when the same panel is responsible for it. It gets the name of the button corresponding to the method that has to be executed, it uses attribute eventHandler to call the methods define by the application. see setEventHandler(wxEventHandler*)

void interfSegmentationPanelVTK::onSegmentationPressedITK ( wxCommandEvent & event )

Responds to the events of the buttons, when the same panel is responsible for it. It gets the name of the button corresponding to the method that has to be executed, it uses attribute eventHandler to call the methods define by the application. see setEventHandler(wxEventHandler*)

Definition at line 104 of file interfSegmentationPanels.cxx.

References interfMainPanel::getInstance(), segmentPanelITK, and interfMainPanel::showPanel().

                                                                                {
    if(segmentPanelITK == NULL) {
                 segmentPanelITK = new wxPanel(interfMainPanel::getInstance()->getInfoPanel(), -1, wxDefaultPosition, wxDefaultSize, wxBORDER_STATIC, wxString(_T("")));

                 wxFlexGridSizer* flexsizer = new wxFlexGridSizer(1);
                 segmentPanelITK->SetSizer(flexsizer, true);
                 segmentPanelITK->SetAutoLayout( true );

                 wxPanel* panel = new wxPanel(this, -1);//contourevent->getSegmentationPanelITK(segmentPanelITK);

                 wxStaticText* stattext = new wxStaticText(segmentPanelITK, -1, wxString(_T("   Automatic ITK Segmentation   ")), wxDefaultPosition,
                         wxDefaultSize, wxALIGN_CENTRE|wxBORDER_SIMPLE|wxFULL_REPAINT_ON_RESIZE, wxString(_T("")));

                 flexsizer->Add(stattext, wxALIGN_CENTER | wxALIGN_CENTRE);
                 flexsizer->Add(panel, wxEXPAND);
                 segmentPanelITK->Layout();
    }
         interfMainPanel::getInstance()->showPanel(segmentPanelITK);
         //contourevent->showAxis(true);
         //axisshown = true;
 }

Here is the call graph for this function:

void interfSegmentationPanelVTK::setLabel ( wxString tmpString )

Definition at line 146 of file interfSegmentationPanels.cxx.

References _staticTextSegmentation.

                                                            {
         _staticTextSegmentation->SetLabel(tmpString);
 }

Member Data Documentation

wxSlider* interfSegmentationPanelVTK::_isovalue

private

Definition at line 71 of file interfSegmentationPanels.h.

Referenced by interfSegmentationPanelVTK(), onSegmentationAllSlice(), and onSegmentationOneSlice().

mBarRange* interfSegmentationPanelVTK::_mbarrange

private

Definition at line 73 of file interfSegmentationPanels.h.

Referenced by interfSegmentationPanelVTK(), and onSegmentationAllSlice().

wxSlider* interfSegmentationPanelVTK::_sampling

private

Definition at line 75 of file interfSegmentationPanels.h.

Referenced by interfSegmentationPanelVTK(), onSegmentationAllSlice(), and onSegmentationOneSlice().

wxStaticText* interfSegmentationPanelVTK::_staticTextSegmentation

private

Definition at line 77 of file interfSegmentationPanels.h.

Referenced by interfSegmentationPanelVTK(), and setLabel().

bool interfSegmentationPanelVTK::axisshown

private

Definition at line 61 of file interfSegmentationPanels.h.

wxPanel* interfSegmentationPanelVTK::configPanel

private

Definition at line 56 of file interfSegmentationPanels.h.

wxWindow* interfSegmentationPanelVTK::infoWin

private

Definition at line 57 of file interfSegmentationPanels.h.

wxRadioBox* interfSegmentationPanelVTK::methodRadiobox

private

Definition at line 79 of file interfSegmentationPanels.h.

Referenced by interfSegmentationPanelVTK(), onSegmentationAllSlice(), and onSegmentationOneSlice().

wxPanel* interfSegmentationPanelVTK::segmentPanel

private

Definition at line 58 of file interfSegmentationPanels.h.

wxPanel* interfSegmentationPanelVTK::segmentPanelITK

private

Definition at line 60 of file interfSegmentationPanels.h.

Referenced by onSegmentationPressedITK().

wxPanel* interfSegmentationPanelVTK::spreadPanel

private

Definition at line 59 of file interfSegmentationPanels.h.

The documentation for this class was generated from the following files:

/home/davila/Creatis/All/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfSegmentationPanels.h
/home/davila/Creatis/All/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfSegmentationPanels.cxx
