#include <interfNewContourMenu.h>

Inheritance diagram for interfNewContourMenu:

Collaboration diagram for interfNewContourMenu:

Public Member Functions
	interfNewContourMenu (wxWindow parent, int sizex, int sizey, wxEvtHandler evtHandler, std::string datadir="data/Icons")

	~interfNewContourMenu ()

virtual void	initButtons (wxEvtHandler *evtHandler)

virtual void	addButtons (std::vector< std::string > vpath, std::vector< std::string > vnom)

virtual wxBitmapButton *	getButton (std::string imgpath, int sizex, int sizey)

virtual wxStaticText *	getText (std::string nom, int sizex, int sizey)

virtual void	setVectorFunction (std::vector< wxObjectEventFunction > vectf)

virtual void	connectEvents (wxEvtHandler *evtHandler)

virtual void	connectEvents ()

virtual void	setButtonName (int i, const char c)

void	onActionButtonPressed (wxCommandEvent &event)

virtual void	setEventHandlers (std::vector< wxEvtHandler * > hand)

Protected Attributes
std::string	datadir

Private Member Functions
void	onCreateContourBullseye (wxCommandEvent &event)

void	onCreateContourSpline (wxCommandEvent &event)

void	onCreateContourRectangle (wxCommandEvent &event)

void	onCreateContourCircle (wxCommandEvent &event)

void	onCreateContourLine (wxCommandEvent &event)

void	onCreateContourPoints (wxCommandEvent &event)

void	onCreateContourPolygon (wxCommandEvent &event)

Private Attributes
wxPanel *	panBull

bool	created

Detailed Description

Definition at line 36 of file interfNewContourMenu.h.

Constructor & Destructor Documentation

interfNewContourMenu::interfNewContourMenu	(	wxWindow *	parent,
		int	sizex,
		int	sizey,
		wxEvtHandler *	evtHandler,
		std::string	datadir = `"data/Icons"`
	)

Definition at line 29 of file interfNewContourMenu.cxx.

References created, interfMenuBar::datadir, initButtons(), and panBull.

         : interfMenuBar(parent, sizex, sizey)
 {
         this->datadir = datdir;
         //eventHandler = (wxContourEventHandler*)evtHandler;

         panBull = NULL;
         created = false;

         initButtons(this);
 }

Here is the call graph for this function:

interfNewContourMenu::~interfNewContourMenu ( )

Definition at line 96 of file interfNewContourMenu.cxx.

97 {

98 }

Member Function Documentation

virtual void interfMenuBar::addButtons	(	std::vector< std::string >	vpath,
		std::vector< std::string >	vnom
	)

inlinevirtualinherited

This method add a series of button in a line, it uses the method getbutton to create the button and static text to create the text, it also initialice the flexgridsizer to add the buttons and the text into the panel

Parameters

vector	path, this parameter contains the path of the images to include in the path
vector	nom, this parameter contains the names corresponding to each path of image given

Definition at line 64 of file interfMenuBar.h.

References interfMenuBar::flexsizer, interfMenuBar::getButton(), and interfMenuBar::vectbutton.

Referenced by interfDeleteMenu::initButtons(), interfEditMenu::initButtons(), interfIOMenu::initButtons(), interfImageToolsMenu::initButtons(), interfSegmentationMenu::initButtons(), interfToolsMenu::initButtons(), and initButtons().

                                                                                   {

                 int sizex = 80;
                 int sizey = 80;

                 //RaC 11-09
                 //This constructor function as well but it is neccessary to change vpath.size() by 6
                 //flexsizer = new wxFlexGridSizer(2,vpath.size(),2,2);
                 flexsizer = new wxFlexGridSizer(6);
                 this->SetSizer(flexsizer, true);
                 this->SetAutoLayout( true );

                 //first row of the sizer, the buttons are being added
                 for(int i = 0; i < (int)(vpath.size());i++){
                         std::string p = vpath[i];
                         wxBitmapButton* bitmapbutton = this->getButton(p, sizex, sizey);
                         flexsizer->Add(bitmapbutton,wxFIXED_MINSIZE);

                 }
                 //second row of the sizer, the names are being added

                 for(int i = 0; i < (int)(vnom.size()); i++){
                         //sizex = vectbutton[i]->GetSize().GetWidth();
                         std::string n = vnom[i];
                         vectbutton[i]->SetToolTip(wxString(n.c_str(),wxConvUTF8));
                         //wxStaticText* statictext = getText(n, sizex, 15);
                         //flexsizer->Add(statictext, wxEXPAND |wxALIGN_CENTER_HORIZONTAL | wxALIGN_CENTRE_HORIZONTAL|wxSHAPED);
                 }
                 this->Layout();
         }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void interfMenuBar::connectEvents ( wxEvtHandler * evtHandler )

inlinevirtualinherited

This method connect the events seted in the vector vectfunct each function must have a button to relate with, see function setVectorFunction()

Definition at line 143 of file interfMenuBar.h.

References interfMenuBar::vectbutton, and interfMenuBar::vectfunct.

                                                             {

                 for(int i = 0; i < (int)(vectbutton.size());i++){
                         Connect(vectbutton[i]->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, vectfunct[i],NULL,evtHandler);
                 }
         }

virtual void interfMenuBar::connectEvents ( )

inlinevirtualinherited

This method connect the events seted in the vector vectfunct each function must have a button to relate with, see function setVectorFunction()

Definition at line 154 of file interfMenuBar.h.

References interfMenuBar::vectbutton, interfMenuBar::vectfunct, and interfMenuBar::vecthand.

Referenced by interfDeleteMenu::initButtons(), interfEditMenu::initButtons(), interfIOMenu::initButtons(), interfImageToolsMenu::initButtons(), interfSegmentationMenu::initButtons(), interfToolsMenu::initButtons(), and initButtons().

                                     {

                 for(int i = 0; i < (int)(vectbutton.size());i++){
                         Connect(vectbutton[i]->GetId(), wxEVT_COMMAND_BUTTON_CLICKED, vectfunct[i],NULL,vecthand[i]);
                 }
         }

Here is the caller graph for this function:

virtual wxBitmapButton* interfMenuBar::getButton	(	std::string	imgpath,
		int	sizex,
		int	sizey
	)

inlinevirtualinherited

This method creates the button with the given image and returns it

Parameters

string	imgpath is the string containing the path to the image of the button being created
int	x indicates the x coordinate where the button should be located
int	y indicates the y coordinate where the button should be located

Definition at line 102 of file interfMenuBar.h.

References interfMenuBar::vectbutton, and interfMenuBar::vectimgpath.

Referenced by interfMenuBar::addButtons().

                                                                                   {
                 vectimgpath.push_back(imgpath);


                 wxBitmap* bitmap = new wxBitmap(wxString(imgpath.c_str(),wxConvUTF8), wxBITMAP_TYPE_PNG);

                 //wxSize(sizex,sizey)
                 wxBitmapButton* bitmapbutton = new wxBitmapButton(this, -1, *bitmap, wxDefaultPosition, wxDefaultSize,
                                                                                         wxBU_AUTODRAW, wxDefaultValidator, wxString(_T("")));

                 vectbutton.push_back(bitmapbutton);
                 return bitmapbutton;
         }

Here is the caller graph for this function:

virtual wxStaticText* interfMenuBar::getText	(	std::string	nom,
		int	sizex,
		int	sizey
	)

inlinevirtualinherited

This method create the static text with the given string and returns it, it also push it back into the vector nom

Parameters

string	nom text wich will be added to the statictext
int	sizex size of the text
int	sizey size of the text

Definition at line 123 of file interfMenuBar.h.

References interfMenuBar::vectnom.

                                                                           {
                 vectnom.push_back(nom);
                 return new wxStaticText(this, -1, wxString(nom.c_str(),wxConvUTF8), wxDefaultPosition,
                                                                 wxSize(sizex,sizey), wxALIGN_CENTRE, wxString(nom.c_str(),wxConvUTF8));
         }

void interfNewContourMenu::initButtons ( wxEvtHandler * evtHandler )

virtual

Implements interfMenuBar.

Definition at line 41 of file interfNewContourMenu.cxx.

References interfMenuBar::addButtons(), interfMenuBar::connectEvents(), interfMenuBar::datadir, onCreateContourBullseye(), onCreateContourCircle(), onCreateContourLine(), onCreateContourPoints(), onCreateContourPolygon(), onCreateContourRectangle(), onCreateContourSpline(), interfMenuBar::setEventHandlers(), and interfMenuBar::setVectorFunction().

Referenced by interfNewContourMenu().

                                                                {

         std::vector<std::string> path, nom;
         std::vector<wxObjectEventFunction> funct;
         std::vector<wxEvtHandler*> hand;

         path.push_back(datadir + "/Spline.png");
         nom.push_back("Create a contour using splines");
         funct.push_back((wxObjectEventFunction)&interfNewContourMenu::onCreateContourSpline);
         hand.push_back(evtHandler);

         path.push_back(datadir+"/Rectangle.png");
         nom.push_back("Create a contour using the basic shape of a rectangle");
         funct.push_back((wxObjectEventFunction)&interfNewContourMenu::onCreateContourRectangle);
         hand.push_back(evtHandler);

         path.push_back(datadir + "/Circle.png");
         nom.push_back("Create a contour using the basic shape of a Circle");
         funct.push_back((wxObjectEventFunction)&interfNewContourMenu::onCreateContourCircle);
         hand.push_back(evtHandler);

         path.push_back(datadir + "/bullseye.png");
         nom.push_back("Create a contour using the bulls eye");
         funct.push_back((wxObjectEventFunction) &interfNewContourMenu::onCreateContourBullseye);
         hand.push_back(this);

         path.push_back(datadir + "/Line.png");
         nom.push_back("Create a Line");
         funct.push_back((wxObjectEventFunction) &interfNewContourMenu::onCreateContourLine);
         hand.push_back(this);

         // RaC 09-09 ---------------------
         path.push_back(datadir + "/Points.png");
         nom.push_back("Create Points");
         funct.push_back((wxObjectEventFunction) &interfNewContourMenu::onCreateContourPoints);
         hand.push_back(this);
         // RaC 09-09 ---------------------

         // RaC 10-09 ---------------------
         path.push_back(datadir + "/Polygon.png");
         nom.push_back("Create Polygon");
         funct.push_back((wxObjectEventFunction) &interfNewContourMenu::onCreateContourPolygon);
         hand.push_back(this);
         // RaC 10-09 ---------------------

     this->addButtons(path, nom);

         this->setVectorFunction(funct);
         this->setEventHandlers(hand);
         this->connectEvents();

 }

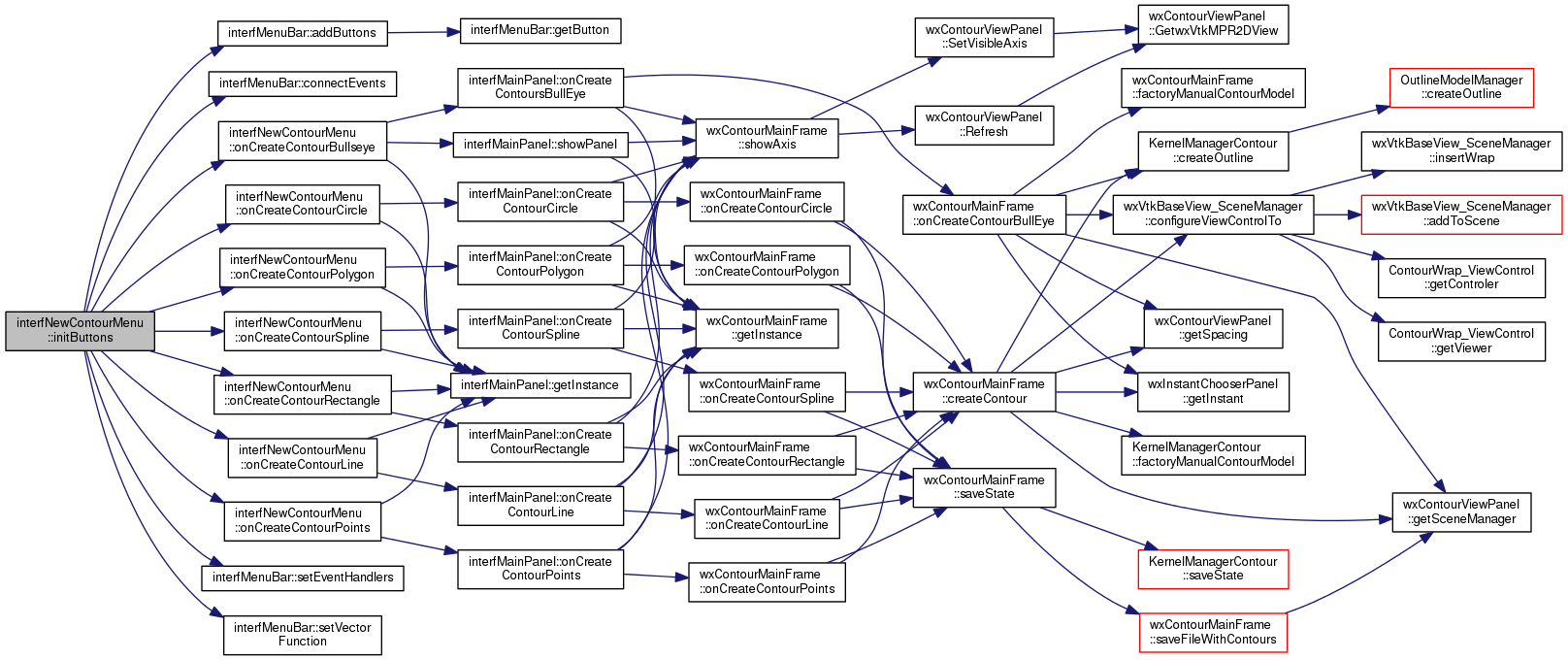

Here is the call graph for this function:

Here is the caller graph for this function:

void interfMenuBar::onActionButtonPressed ( wxCommandEvent & event )

inlineinherited

Responds to the events of the buttons, when the same panel is responsible for it. It gets the name of the button corresponding to the method that has to be executed, it uses attribute eventHandler to call the methods define by the application. see setEventHandler(wxEventHandler*)

Definition at line 180 of file interfMenuBar.h.

         {
                 if(true)//if(eventHandler!=NULL)
                 {
                         std::string theStr = std::string( ((wxButton *)event.GetEventObject())->GetName().ToAscii());
                         const char * toolCommand = theStr.c_str();
                         event.SetId( GetId() );
                         event.SetEventObject( this );
                         event.SetClientData( (void *) toolCommand);
                         //eventHandler->ProcessEvent( event );
                 }
         }

void interfNewContourMenu::onCreateContourBullseye ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 100 of file interfNewContourMenu.cxx.

References created, interfMainPanel::getInstance(), interfMainPanel::onCreateContoursBullEye(), panBull, and interfMainPanel::showPanel().

Referenced by initButtons().

                                                                        {


         if(!created){

                 panBull = new PanelBullEyeOptions(interfMainPanel::getInstance()->getInfoPanel(),
                                                                 wxSize(100,200));
                 created = true;
         }
         interfMainPanel::getInstance()->onCreateContoursBullEye(panBull);
         //eventHandler->createContourBullsEye(panBull);
         interfMainPanel::getInstance()->showPanel(panBull);

 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourCircle ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 121 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourCircle().

Referenced by initButtons().

                                                                        {
         interfMainPanel::getInstance()->onCreateContourCircle();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourLine ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 124 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourLine().

Referenced by initButtons().

                                                                      {
         interfMainPanel::getInstance()->onCreateContourLine();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourPoints ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 129 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourPoints().

Referenced by initButtons().

                                                                        {
         interfMainPanel::getInstance()->onCreateContourPoints();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourPolygon ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

RaC - Creates a new Polygon contour

Definition at line 135 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourPolygon().

Referenced by initButtons().

                                                                         {
         interfMainPanel::getInstance()->onCreateContourPolygon();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourRectangle ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 118 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourRectangle().

Referenced by initButtons().

                                                                           {
         interfMainPanel::getInstance()->onCreateContourRectangle();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

void interfNewContourMenu::onCreateContourSpline ( wxCommandEvent & event )

private

This method is in charge of capturing the event when the button is clicked

Definition at line 115 of file interfNewContourMenu.cxx.

References interfMainPanel::getInstance(), and interfMainPanel::onCreateContourSpline().

Referenced by initButtons().

                                                                        {
         interfMainPanel::getInstance()->onCreateContourSpline();
 }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void interfMenuBar::setButtonName	(	int	i,
		const char	c
	)

inlinevirtualinherited

Sets the name of the button, this is used to relate the name of the button to a specific command int i index in the array of buttons use fuction setVectorFuncion(<vect>) to set the vector first const char name of the button see wxContour_ActionCommandsID.h to view the commands

Definition at line 167 of file interfMenuBar.h.

References interfMenuBar::vectbutton.

Referenced by interfEditMenu::initButtons().

                                                        {
                 if(i < (int)(vectbutton.size())){
                         std::string ac = c+"";
                         vectbutton[i]->SetName(wxString(ac.c_str(),wxConvUTF8));
                 }
         }

Here is the caller graph for this function:

virtual void interfMenuBar::setEventHandlers ( std::vector< wxEvtHandler * > hand )

inlinevirtualinherited

Definition at line 193 of file interfMenuBar.h.

References interfMenuBar::vecthand.

Referenced by initButtons().

                                                                     {

                 for(int i = 0; i < (int)(hand.size());i++){
                         vecthand.push_back(hand[i]);
                 }
         }

Here is the caller graph for this function:

virtual void interfMenuBar::setVectorFunction ( std::vector< wxObjectEventFunction > vectf )

inlinevirtualinherited

Sets the vector funcion, this vector must contain a function for each button created they must be ordered in the same way as the vector that contains the image path and name of the button. See addButton(<vect>, <vect>)

Definition at line 133 of file interfMenuBar.h.

References interfMenuBar::vectfunct.

Referenced by interfDeleteMenu::initButtons(), interfEditMenu::initButtons(), interfIOMenu::initButtons(), interfImageToolsMenu::initButtons(), interfSegmentationMenu::initButtons(), interfToolsMenu::initButtons(), and initButtons().

                                                                               {
                 for(int i = 0; i < (int)(vectf.size());i++){
                         vectfunct.push_back(vectf[i]);
                 }
         }

Here is the caller graph for this function:

Member Data Documentation

bool interfNewContourMenu::created

private

Definition at line 51 of file interfNewContourMenu.h.

Referenced by interfNewContourMenu(), and onCreateContourBullseye().

std::string interfMenuBar::datadir

protectedinherited

Definition at line 212 of file interfMenuBar.h.

Referenced by interfDeleteMenu::initButtons(), interfEditMenu::initButtons(), interfIOMenu::initButtons(), interfImageToolsMenu::initButtons(), interfSegmentationMenu::initButtons(), interfToolsMenu::initButtons(), initButtons(), interfDeleteMenu::interfDeleteMenu(), interfEditMenu::interfEditMenu(), interfImageToolsMenu::interfImageToolsMenu(), interfIOMenu::interfIOMenu(), interfNewContourMenu(), interfSegmentationMenu::interfSegmentationMenu(), and interfToolsMenu::interfToolsMenu().

wxPanel* interfNewContourMenu::panBull

private

Definition at line 50 of file interfNewContourMenu.h.

Referenced by interfNewContourMenu(), and onCreateContourBullseye().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfNewContourMenu.h
/home/davila/Creatis/All/creatools_source/creaContours/lib/Interface_Icons_NDimensions/interfNewContourMenu.cxx

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
