GDCM_NAME_SPACE::DocEntrySet

GDCM_NAME_SPACE::DocEntrySet Class Reference

DocEntrySet is an abstract base class for ElementSet, SQItem which are both containers for DocEntries. More...

#include <gdcmDocEntrySet.h>

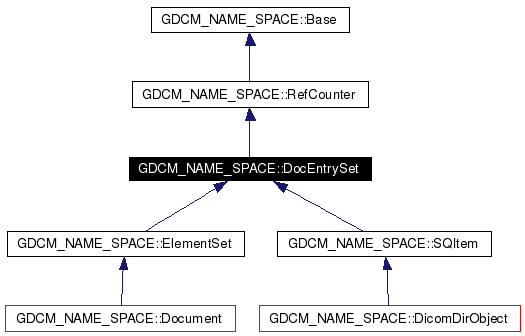

Inheritance diagram for GDCM_NAME_SPACE::DocEntrySet:

Inheritance graph
[legend]

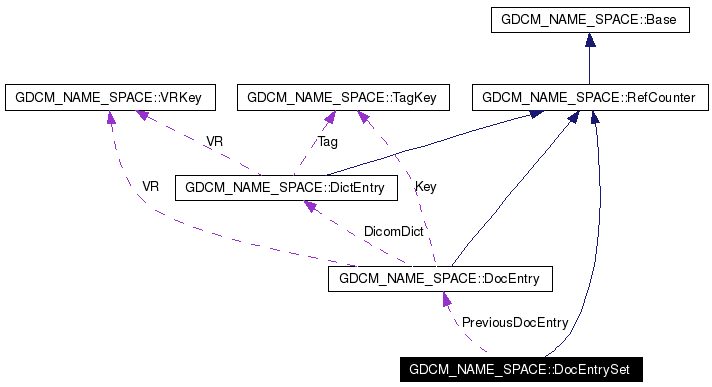

Collaboration diagram for GDCM_NAME_SPACE::DocEntrySet:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual void WriteContent (std::ofstream *fp, FileType filetype, bool insideMetaElements)=0
 write any type of entry to the entry set
virtual void ClearEntry ()=0
 Remove all Entry of the current set.
virtual bool AddEntry (DocEntry *entry)=0
 adds any type of entry to the current set
virtual bool RemoveEntry (DocEntry *entryToRemove)=0
 Removes any type of entry out of the entry set, and destroys it.
virtual DocEntry * GetFirstEntry ()=0
 Gets the first entry (of any type) of the current set.
virtual DocEntry * GetNextEntry ()=0
 Gets the next entry (of any type) of the current set.
virtual std::string GetEntryString (uint16_t group, uint16_t elem)
 Get the "std::string representable" value of the Dicom entry.
virtual void * GetEntryBinArea (uint16_t group, uint16_t elem)
 Gets (from Header) a 'non string' element value.
virtual int GetEntryLength (uint16_t group, uint16_t elem)
 Searches within the DocEntrySet for the value length of a given tag..
virtual DocEntry * GetDocEntry (uint16_t group, uint16_t elem)=0
 Gets any type of DocEntry, identified by its (group,elem).
DataEntry * GetDataEntry (uint16_t group, uint16_t elem)
 Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type DataEntry.
SeqEntry * GetSeqEntry (uint16_t group, uint16_t elem)
 Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type SeqEntry.
bool SetEntryString (std::string const &content, uint16_t group, uint16_t elem)
 Accesses an existing DocEntry (i.e. a Dicom Element) through its (group, element) and modifies its content with the given value.
bool SetEntryBinArea (uint8_t *content, int lgth, uint16_t group, uint16_t elem)
 Accesses an existing DocEntry (i.e. a Dicom Element) through its (group, element) and modifies its content with the given value.
bool SetEntryString (std::string const &content, DataEntry *entry)
 Accesses an existing DocEntry (i.e. a Dicom Element) and modifies its content with the given value.
bool SetEntryBinArea (uint8_t *content, int lgth, DataEntry *entry)
 Accesses an existing DataEntry (i.e. a Dicom Element) and modifies its content with the given value.
DataEntry * InsertEntryString (std::string const &value, uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Modifies the value of a given Doc Entry (Dicom Element) when it exists. Creates it with the given value when unexistant.
DataEntry * InsertEntryBinArea (uint8_t *binArea, int lgth, uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Modifies the value of a given Header Entry (Dicom Element) when it exists. Create it with the given value when unexistant. A copy of the binArea is made to be kept in the Document.
SeqEntry * InsertSeqEntry (uint16_t group, uint16_t elem)
 Creates a new gdcm::SeqEntry and adds it to the current DocEntrySet. (remove any existing entry with same group,elem).
virtual bool IsEmpty ()=0
 Tells us if the set contains no entry.
virtual bool CheckIfEntryExist (uint16_t group, uint16_t elem)
 Checks if a given Dicom Element exists within the DocEntrySet.
DataEntry * NewDataEntry (uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Build a new DataEntry from all the low level arguments.
SeqEntry * NewSeqEntry (uint16_t group, uint16_t elem)
 Build a new SeqEntry from all the low level arguments.
virtual void Copy (DocEntrySet *)
void Delete ()
 Delete the object.
void Register ()
 Register the object.
void Unregister ()
 Unregister the object.
const unsigned long & GetRefCount () const
 Get the reference counting.
virtual void Print (std::ostream &=std::cout, std::string const &="")
 Printer.
void SetPrintLevel (int level)
 Sets the print level for the Dicom Header Elements.
int GetPrintLevel ()
 Gets the print level for the Dicom Entries.

Protected Member Functions

 DocEntrySet ()
 Canonical Constructor.
virtual ~DocEntrySet ()
 Canonical Destructor.
DictEntry * GetDictEntry (uint16_t group, uint16_t elem)
 Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element. The public dictionary has precedence on the shadow one(s), if any.

Protected Attributes

DocEntry * PreviousDocEntry
 To be able to backtrack (Private Sequence, Implicit VR related pb).
int PrintLevel
 Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Private Member Functions

 gdcmTypeMacro (DocEntrySet)

Detailed Description

DocEntrySet is an abstract base class for ElementSet, SQItem which are both containers for DocEntries.

Since the syntax for adding a new element to a map<> or a list<> differ, DocEntrySet is designed as an adapter to unify the interfaces of DocEntrySet and ElementSet.

As an illustration of this design, please refer to the implementation of AddEntry (or any pure virtual method) in both derived classes. This adapter unification of interfaces enables the parsing of a DICOM header containing (optionaly heavily nested) sequences to be written recursively [see Document::ParseDES which calls Document::ParseSQ, which in turn calls Document::ParseDES ].

Note:
Developpers should strongly resist to the temptation of adding members to this class since this class is designed as an adapter in the form of an abstract base class.

Definition at line 61 of file gdcmDocEntrySet.h.

Constructor & Destructor Documentation

GDCM_NAME_SPACE::DocEntrySet::DocEntrySet (   )  [protected]


Canonical Constructor.

Definition at line 38 of file gdcmDocEntrySet.cxx.

References PreviousDocEntry.

00039 {
00040    PreviousDocEntry = 0;
00041 }

virtual GDCM_NAME_SPACE::DocEntrySet::~DocEntrySet (   )  [inline, protected, virtual]


Canonical Destructor.

Definition at line 121 of file gdcmDocEntrySet.h.

00121 {}

Member Function Documentation

virtual bool GDCM_NAME_SPACE::DocEntrySet::AddEntry (  DocEntry *  entry  )  [pure virtual]


adds any type of entry to the current set

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Referenced by InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), and GDCM_NAME_SPACE::DicomDir::MoveSQItem().

bool GDCM_NAME_SPACE::DocEntrySet::CheckIfEntryExist (  uint16_t  group,
uint16_t  elem
)  [virtual]


Checks if a given Dicom Element exists within the DocEntrySet.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
true is found

Definition at line 412 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

00413 {
00414    return GetDocEntry(group,elem)!=NULL;
00415 }

virtual void GDCM_NAME_SPACE::DocEntrySet::ClearEntry (   )  [pure virtual]


Remove all Entry of the current set.

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

virtual void GDCM_NAME_SPACE::DocEntrySet::Copy (  DocEntrySet *   )  [inline, virtual]


Reimplemented in GDCM_NAME_SPACE::DicomDir, GDCM_NAME_SPACE::DicomDirPatient, GDCM_NAME_SPACE::DicomDirSerie, GDCM_NAME_SPACE::DicomDirStudy, GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Definition at line 115 of file gdcmDocEntrySet.h.

Referenced by GDCM_NAME_SPACE::SQItem::Copy(), and GDCM_NAME_SPACE::ElementSet::Copy().

00115 {};

void GDCM_NAME_SPACE::RefCounter::Delete (   )  [inline, inherited]


Delete the object.

Remarks:
The object is deleted only if its reference counting is to zero

Definition at line 41 of file gdcmRefCounter.h.

Referenced by GDCM_NAME_SPACE::SerieHelper::AddFileName(), GDCM_NAME_SPACE::Document::Backtrack(), GDCM_NAME_SPACE::FileHelper::CheckMandatoryElements(), GDCM_NAME_SPACE::FileHelper::CheckMandatoryEntry(), GDCM_NAME_SPACE::FileHelper::CopyMandatoryEntry(), GDCM_NAME_SPACE::Dict::DoTheLoadingJob(), GDCM_NAME_SPACE::FillDefaultDataDict(), GDCM_NAME_SPACE::DicomDirObject::FillObject(), vtkGdcmReader::GetFileInformation(), InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), vtkGdcmReader::LoadFileInformation(), GDCM_NAME_SPACE::DicomDir::NewMeta(), GDCM_NAME_SPACE::DicomDirStudy::NewVisit(), GDCM_NAME_SPACE::Document::ReadNextDocEntry(), GDCM_NAME_SPACE::DicomDir::SetElement(), GDCM_NAME_SPACE::FileHelper::SetMandatoryEntry(), GDCM_NAME_SPACE::FileHelper::SetWriteFileTypeToExplicitVR(), GDCM_NAME_SPACE::FileHelper::SetWriteFileTypeToImplicitVR(), GDCM_NAME_SPACE::FileHelper::SetWriteFileTypeToJPEG(), GDCM_NAME_SPACE::FileHelper::SetWriteFileTypeToJPEG2000(), GDCM_NAME_SPACE::FileHelper::SetWriteToLibido(), GDCM_NAME_SPACE::DicomDir::~DicomDir(), GDCM_NAME_SPACE::DictSet::~DictSet(), and GDCM_NAME_SPACE::Global::~Global().

00041 { Unregister(); }

GDCM_NAME_SPACE::DocEntrySet::gdcmTypeMacro (  DocEntrySet   )  [private]


DataEntry * GDCM_NAME_SPACE::DocEntrySet::GetDataEntry (  uint16_t  group,
uint16_t  elem
)


Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type DataEntry.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
When present, the corresponding DataEntry.

Definition at line 103 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

Referenced by GDCM_NAME_SPACE::FileHelper::CheckMandatoryElements(), GDCM_NAME_SPACE::FileHelper::CheckMandatoryEntry(), GDCM_NAME_SPACE::Document::DoTheLoadingDocumentJob(), GDCM_NAME_SPACE::File::GetBitsAllocated(), GDCM_NAME_SPACE::File::GetBitsStored(), GetEntryBinArea(), GDCM_NAME_SPACE::File::GetHighBitPosition(), GDCM_NAME_SPACE::File::GetPlanarConfiguration(), GDCM_NAME_SPACE::File::GetRescaleIntercept(), GDCM_NAME_SPACE::File::GetSamplesPerPixel(), GDCM_NAME_SPACE::File::GetTSize(), GDCM_NAME_SPACE::File::GetXOrigin(), GDCM_NAME_SPACE::File::GetXSize(), GDCM_NAME_SPACE::File::GetXSpacing(), GDCM_NAME_SPACE::File::GetYOrigin(), GDCM_NAME_SPACE::File::GetYSize(), GDCM_NAME_SPACE::File::GetYSpacing(), GDCM_NAME_SPACE::File::GetZOrigin(), GDCM_NAME_SPACE::File::GetZSize(), GDCM_NAME_SPACE::File::GetZSpacing(), GDCM_NAME_SPACE::File::IsSignedPixelData(), GDCM_NAME_SPACE::ElementSet::Print(), SetEntryBinArea(), SetEntryString(), GDCM_NAME_SPACE::FileHelper::SetWriteToLibido(), GDCM_NAME_SPACE::FileHelper::SetWriteToNoLibido(), GDCM_NAME_SPACE::FileHelper::Write(), GDCM_NAME_SPACE::File::Write(), and GDCM_NAME_SPACE::DicomDirMeta::WriteContent().

00104 {
00105    DocEntry *currentEntry = GetDocEntry(group, elem);
00106    if ( !currentEntry )
00107       return NULL;
00108
00109    return dynamic_cast<DataEntry*>(currentEntry);
00110 }

DictEntry * GDCM_NAME_SPACE::DocEntrySet::GetDictEntry (  uint16_t  group,
uint16_t  elem
)  [protected]


Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element. The public dictionary has precedence on the shadow one(s), if any.

Parameters:
group Group number of the searched DictEntry
elem Element number of the searched DictEntry
Returns:
Corresponding DictEntry when it exists, NULL otherwise.
Remarks:
The returned DictEntry is registered when existing
Todo:
store the DefaultPubDict somwhere, in order not to access the HTable every time ! --> Done!

Definition at line 473 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, GDCM_NAME_SPACE::DictSet::GetDefaultPubDict(), GDCM_NAME_SPACE::Global::GetDicts(), GDCM_NAME_SPACE::Dict::GetEntry(), and GDCM_NAME_SPACE::RefCounter::Register().

Referenced by GDCM_NAME_SPACE::Document::ReadNextDocEntry().

00474 {
00475    DictEntry *found = 0;
00478    Dict *pubDict = Global::GetDicts()->GetDefaultPubDict();
00479    if (!pubDict)
00480    {
00481       gdcmWarningMacro( "We SHOULD have a default dictionary");
00482    }
00483    else
00484    {
00485       found = pubDict->GetEntry(group, elem);
00486       if( found )
00487          found->Register();
00488    }
00489    return found;
00490 }

virtual DocEntry* GDCM_NAME_SPACE::DocEntrySet::GetDocEntry (  uint16_t  group,
uint16_t  elem
)  [pure virtual]


Gets any type of DocEntry, identified by its (group,elem).

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Referenced by CheckIfEntryExist(), GetDataEntry(), GetEntryLength(), GetEntryString(), GetSeqEntry(), InsertEntryBinArea(), InsertEntryString(), and InsertSeqEntry().

void * GDCM_NAME_SPACE::DocEntrySet::GetEntryBinArea (  uint16_t  group,
uint16_t  elem
)  [virtual]


Gets (from Header) a 'non string' element value.

Parameters:
group group number of the Entry
elem element number of the Entry
Returns:
Pointer to the 'non string' area

Definition at line 73 of file gdcmDocEntrySet.cxx.

References GDCM_NAME_SPACE::DataEntry::GetBinArea(), and GetDataEntry().

00074 {
00075    DataEntry *entry = GetDataEntry(group, elem);
00076    if ( entry )
00077       return entry->GetBinArea();
00078    return 0;
00079 }

int GDCM_NAME_SPACE::DocEntrySet::GetEntryLength (  uint16_t  group,
uint16_t  elem
)  [virtual]


Searches within the DocEntrySet for the value length of a given tag..

Parameters:
group Group number of the searched tag.
elem Element number of the searched tag.
Returns:
Corresponding element length; -1 if not found

Definition at line 88 of file gdcmDocEntrySet.cxx.

References GetDocEntry(), and GDCM_NAME_SPACE::DocEntry::GetLength().

Referenced by GDCM_NAME_SPACE::DicomDir::SetElement(), and GDCM_NAME_SPACE::File::Write().

00089 {
00090    DocEntry *entry = GetDocEntry(group, elem);
00091    if ( entry )
00092       return entry->GetLength();
00093    return -1;
00094 }

std::string GDCM_NAME_SPACE::DocEntrySet::GetEntryString (  uint16_t  group,
uint16_t  elem
)  [virtual]


Get the "std::string representable" value of the Dicom entry.

Parameters:
group Group number of the searched tag.
elem Element number of the searched tag.
Returns:
Corresponding element value when it exists, and the string GDCM_UNFOUND otherwise.

Definition at line 51 of file gdcmDocEntrySet.cxx.

References GDCM_NAME_SPACE::GDCM_NOTLOADED, GDCM_NAME_SPACE::GDCM_UNFOUND, GDCM_NAME_SPACE::GDCM_UNREAD, GetDocEntry(), GDCM_NAME_SPACE::DataEntry::GetString(), GDCM_NAME_SPACE::DataEntry::IsNotLoaded(), GDCM_NAME_SPACE::DataEntry::IsUnfound(), and GDCM_NAME_SPACE::DataEntry::IsUnread().

Referenced by GDCM_NAME_SPACE::SerieHelper::AddFile(), GDCM_NAME_SPACE::File::AnonymizeFile(), GDCM_NAME_SPACE::FileHelper::CheckMandatoryElements(), GDCM_NAME_SPACE::SerieHelper::CreateUniqueSeriesIdentifier(), GDCM_NAME_SPACE::SerieHelper::CreateUserDefinedFileIdentifier(), GDCM_NAME_SPACE::Document::DoTheLoadingDocumentJob(), GDCM_NAME_SPACE::File::DoTheLoadingJob(), GDCM_NAME_SPACE::DirList::Explore(), GDCM_NAME_SPACE::File::GetImageNumber(), GDCM_NAME_SPACE::File::GetImageOrientationPatient(), GDCM_NAME_SPACE::File::GetImagePositionPatient(), GDCM_NAME_SPACE::File::GetLUTNbits(), GDCM_NAME_SPACE::File::GetModality(), GDCM_NAME_SPACE::File::GetNumberOfScalarComponents(), GDCM_NAME_SPACE::File::GetNumberOfScalarComponentsRaw(), GDCM_NAME_SPACE::File::GetPixelSize(), GDCM_NAME_SPACE::File::GetPixelType(), GDCM_NAME_SPACE::File::GetRescaleSlope(), GDCM_NAME_SPACE::File::GetRescaleSlopeIntercept(), GDCM_NAME_SPACE::File::GetSpacing(), GDCM_NAME_SPACE::Document::GetTransferSyntaxName(), GDCM_NAME_SPACE::File::GetXSpacing(), GDCM_NAME_SPACE::File::GetYSpacing(), GDCM_NAME_SPACE::File::IsMonochrome(), GDCM_NAME_SPACE::File::IsMonochrome1(), GDCM_NAME_SPACE::File::IsPaletteColor(), GDCM_NAME_SPACE::File::IsReadable(), GDCM_NAME_SPACE::File::IsYBRFull(), GDCM_NAME_SPACE::Document::operator<(), and GDCM_NAME_SPACE::DicomDir::SetElement().

00052 {
00053    DataEntry *entry = dynamic_cast<DataEntry *>(GetDocEntry(group,elem));
00054    if ( entry )
00055    {
00056       if( entry->IsNotLoaded() )
00057          return GDCM_NOTLOADED;
00058       if( entry->IsUnfound() )
00059          return GDCM_UNFOUND;
00060       if( entry->IsUnread() )
00061          return GDCM_UNREAD;
00062       return entry->GetString();
00063    }
00064    return GDCM_UNFOUND;
00065 }

virtual DocEntry* GDCM_NAME_SPACE::DocEntrySet::GetFirstEntry (   )  [pure virtual]


Gets the first entry (of any type) of the current set.

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Referenced by GDCM_NAME_SPACE::DicomDir::MoveSQItem().

virtual DocEntry* GDCM_NAME_SPACE::DocEntrySet::GetNextEntry (   )  [pure virtual]


Gets the next entry (of any type) of the current set.

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

int GDCM_NAME_SPACE::Base::GetPrintLevel (   )  [inline, inherited]


Gets the print level for the Dicom Entries.

Definition at line 50 of file gdcmBase.h.

00050 { return PrintLevel; }

const unsigned long& GDCM_NAME_SPACE::RefCounter::GetRefCount (   )  const [inline, inherited]


Get the reference counting.

Returns:
Reference count

Definition at line 59 of file gdcmRefCounter.h.

00060    {
00061       return RefCount;
00062    }

SeqEntry * GDCM_NAME_SPACE::DocEntrySet::GetSeqEntry (  uint16_t  group,
uint16_t  elem
)


Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type SeqEntry.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
When present, the corresponding SeqEntry.

Definition at line 119 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

Referenced by GDCM_NAME_SPACE::Document::DoTheLoadingDocumentJob(), GDCM_NAME_SPACE::File::GetRescaleSlopeIntercept(), and GDCM_NAME_SPACE::File::GetSpacing().

00120 {
00121    DocEntry *currentEntry = GetDocEntry(group, elem);
00122    if ( !currentEntry )
00123       return NULL;
00124
00125    return dynamic_cast<SeqEntry*>(currentEntry);
00126 }

DataEntry * GDCM_NAME_SPACE::DocEntrySet::InsertEntryBinArea (  uint8_t *  binArea,
int  lgth,
uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Modifies the value of a given Header Entry (Dicom Element) when it exists. Create it with the given value when unexistant. A copy of the binArea is made to be kept in the Document.

Parameters:
binArea (binary) value to be set
lgth length of the Bin Area we want to set
group Group number of the Entry
elem Element number of the Entry
vr V(alue) R(epresentation) of the Entry -if private Entry-
Returns:
pointer to the modified/created Header Entry (NULL when creation failed).

Definition at line 290 of file gdcmDocEntrySet.cxx.

References AddEntry(), GDCM_NAME_SPACE::RefCounter::Delete(), gdcmWarningMacro, GetDocEntry(), GDCM_NAME_SPACE::DocEntry::GetVR(), NewDataEntry(), RemoveEntry(), and SetEntryBinArea().

Referenced by GDCM_NAME_SPACE::FileHelper::InsertEntryBinArea().

00293 {
00294    DataEntry *dataEntry = 0;
00295    DocEntry *currentEntry = GetDocEntry( group, elem );
00296
00297    // Verify the currentEntry
00298    if (currentEntry)
00299    {
00300       dataEntry = dynamic_cast<DataEntry *>(currentEntry);
00301
00302       // Verify the VR
00303       if ( dataEntry )
00304          if ( dataEntry->GetVR()!=vr )
00305             dataEntry = NULL;
00306
00307       // if currentEntry doesn't correspond to the requested dataEntry
00308       if ( !dataEntry)
00309       {
00310          if ( !RemoveEntry(currentEntry) )
00311          {
00312             gdcmWarningMacro( "Removal of previous DocEntry failed.");
00313             return NULL;
00314          }
00315       }
00316    }
00317
00318    // Create a new dataEntry if necessary
00319    if ( !dataEntry)
00320    {
00321       dataEntry = NewDataEntry(group, elem, vr);
00322
00323       if ( !AddEntry(dataEntry) )
00324       {
00325          gdcmWarningMacro( "AddEntry failed although this is a creation.");
00326          dataEntry->Delete();
00327          return NULL;
00328       }
00329       dataEntry->Delete();
00330    }
00331
00332    // Set the dataEntry value
00333    uint8_t *tmpArea;
00334    if ( lgth>0 && binArea )
00335    {
00336       tmpArea = new uint8_t[lgth];
00337       memcpy(tmpArea,binArea,lgth);
00338    }
00339    else
00340    {
00341       tmpArea = 0;
00342    }
00343    if ( !SetEntryBinArea(tmpArea,lgth,dataEntry) )
00344    {
00345       if ( tmpArea )
00346       {
00347          delete[] tmpArea;
00348       }
00349    }
00350    return dataEntry;
00351 }

DataEntry * GDCM_NAME_SPACE::DocEntrySet::InsertEntryString (  std::string const &  value,
uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Modifies the value of a given Doc Entry (Dicom Element) when it exists. Creates it with the given value when unexistant.

Parameters:
value (string) Value to be set
group Group number of the Entry
elem Element number of the Entry
vr V(alue) R(epresentation) of the Entry -if private Entry-
Returns:
pointer to the modified/created Header Entry (NULL when creation failed).

Definition at line 216 of file gdcmDocEntrySet.cxx.

References AddEntry(), GDCM_NAME_SPACE::RefCounter::Delete(), GDCM_NAME_SPACE::GDCM_VRUNKNOWN, gdcmWarningMacro, GDCM_NAME_SPACE::DictSet::GetDefaultPubDict(), GDCM_NAME_SPACE::Global::GetDicts(), GetDocEntry(), GDCM_NAME_SPACE::Dict::GetEntry(), GDCM_NAME_SPACE::DocEntry::GetKey(), GDCM_NAME_SPACE::DictEntry::GetVR(), GDCM_NAME_SPACE::DocEntry::GetVR(), NewDataEntry(), GDCM_NAME_SPACE::RefCounter::Register(), RemoveEntry(), and SetEntryString().

Referenced by GDCM_NAME_SPACE::FileHelper::InsertEntryString(), GDCM_NAME_SPACE::FileHelper::Write(), and GDCM_NAME_SPACE::File::Write().

00219 {
00220    DataEntry *dataEntry = 0;
00221    DocEntry *currentEntry = GetDocEntry( group, elem );
00222    VRKey localVR = vr;
00223    if (currentEntry)
00224    {
00225       dataEntry = dynamic_cast<DataEntry *>(currentEntry);
00226
00227       // Verify the VR
00228       if ( dataEntry )
00229          if ( dataEntry->GetVR()!=vr )
00230             dataEntry = NULL;
00231
00232       // if currentEntry doesn't correspond to the requested dataEntry
00233       if ( !dataEntry)
00234       {
00235          if ( !RemoveEntry(currentEntry) )
00236          {
00237             gdcmWarningMacro( "Removal of previous DocEntry failed.");
00238             return NULL;
00239          }
00240       }
00241    }
00242
00243    else // the 'currentEntry' was not found
00244    {
00245       if ( vr == GDCM_VRUNKNOWN ) // user didn't specify a VR.
00246                                   //  Probabely he trusts the Dicom Dict !
00247       {
00248           DictEntry *e =
00249             Global::GetDicts()->GetDefaultPubDict()->GetEntry(group, elem);
00250           if ( e )
00251           {
00252              localVR = e->GetVR();
00253              e->Register(); // ?? JPRx
00254          }
00255       }
00256    }
00257
00258    // Create a new dataEntry if necessary
00259    if ( !dataEntry )
00260    {
00261       dataEntry = NewDataEntry( group, elem, localVR );
00262
00263       if ( !AddEntry(dataEntry) )
00264       {
00265          gdcmWarningMacro("AddEntry " << dataEntry->GetKey()
00266                  << " failed although this is a creation.");
00267          dataEntry->Delete();
00268          return NULL;
00269       }
00270       dataEntry->Delete(); // ?!? JPRx
00271    }
00272
00273    // Set the dataEntry value
00274    SetEntryString(value, dataEntry); // The std::string value
00275    return dataEntry;
00276 }

SeqEntry * GDCM_NAME_SPACE::DocEntrySet::InsertSeqEntry (  uint16_t  group,
uint16_t  elem
)


Creates a new gdcm::SeqEntry and adds it to the current DocEntrySet. (remove any existing entry with same group,elem).

Parameters:
group Group number of the Entry
elem Element number of the Entry
Returns:
pointer to the created SeqEntry (NULL when creation failed).

Definition at line 361 of file gdcmDocEntrySet.cxx.

References AddEntry(), GDCM_NAME_SPACE::RefCounter::Delete(), gdcmWarningMacro, GetDocEntry(), NewSeqEntry(), and RemoveEntry().

Referenced by GDCM_NAME_SPACE::FileHelper::InsertSeqEntry().

00362 {
00363    SeqEntry *seqEntry = 0;
00364    DocEntry *currentEntry = GetDocEntry( group, elem );
00365
00366    // Verify the currentEntry
00367    if ( currentEntry )
00368    {
00369       seqEntry = dynamic_cast<SeqEntry *>(currentEntry);
00370
00371       // Verify the VR
00372       if ( seqEntry )
00373          seqEntry = NULL;
00374
00375       // if currentEntry doesn't correspond to the requested seqEntry
00376       if ( !seqEntry )
00377       {
00378          if (!RemoveEntry(currentEntry))
00379          {
00380             gdcmWarningMacro( "Removal of previous DocEntry failed for ("
00381                <<std::hex << group << "|" << elem <<")" );
00382             return NULL;
00383          }
00384       }
00385    }
00386    // Create a new seqEntry if necessary
00387    if ( !seqEntry )
00388    {
00389       seqEntry = NewSeqEntry(group, elem);
00390
00391       if ( !AddEntry(seqEntry) )
00392       {
00393          gdcmWarningMacro( "AddEntry failed although this is a creation for ("
00394             <<std::hex << group << "|" << elem <<")" );
00395          seqEntry->Delete();
00396          return NULL;
00397       }
00398       seqEntry->Delete();
00399    }
00400    // Remark :
00401    // SequenceDelimitationItem will be added at the end of the SeqEntry,
00402    // at write time
00403    return seqEntry;
00404 }

virtual bool GDCM_NAME_SPACE::DocEntrySet::IsEmpty (   )  [pure virtual]


Tells us if the set contains no entry.

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

DataEntry * GDCM_NAME_SPACE::DocEntrySet::NewDataEntry (  uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Build a new DataEntry from all the low level arguments.

Parameters:
group Group number of the new Entry
elem Element number of the new Entry
vr V(alue) R(epresentation) of the new Entry
Remarks:
The user of this method must destroy the DataEntry when unused

Definition at line 425 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GDCM_NAME_SPACE::DataEntry::New().

Referenced by GDCM_NAME_SPACE::FileHelper::CopyDataEntry(), InsertEntryBinArea(), InsertEntryString(), and GDCM_NAME_SPACE::Document::ReadNextDocEntry().

00427 {
00428
00429    DataEntry *newEntry = DataEntry::New(group, elem, vr);
00430    if (!newEntry)
00431    {
00432       gdcmWarningMacro( "Failed to allocate DataEntry for ("
00433           <<std::hex << group << "|" << elem <<")" );
00434       return 0;
00435    }
00436    return newEntry;
00437 }

SeqEntry * GDCM_NAME_SPACE::DocEntrySet::NewSeqEntry (  uint16_t  group,
uint16_t  elem
)


Build a new SeqEntry from all the low level arguments.

Parameters:
group Group number of the new Entry
elem Element number of the new Entry
Remarks:
The user of this method must destroy the SeqEntry when unused

Definition at line 445 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GDCM_NAME_SPACE::SeqEntry::New().

Referenced by GDCM_NAME_SPACE::Document::Backtrack(), InsertSeqEntry(), and GDCM_NAME_SPACE::Document::ReadNextDocEntry().

00446 {
00447    //DictEntry *dictEntry = GetDictEntry(group, elem, "SQ");
00448
00449    //SeqEntry *newEntry = SeqEntry::New( dictEntry );
00450    SeqEntry *newEntry = SeqEntry::New( group, elem );
00451    //dictEntry->Unregister(); // GetDictEntry register it
00452    if (!newEntry)
00453    {
00454       gdcmWarningMacro( "Failed to allocate SeqEntry for ("
00455          <<std::hex << group << "|" << elem <<")" );
00456       return 0;
00457    }
00458    return newEntry;
00459 }

virtual void GDCM_NAME_SPACE::Base::Print (  std::ostream &  = std::cout,
std::string const &  = ""
)  [inline, virtual, inherited]


Printer.

Reimplemented in GDCM_NAME_SPACE::CommandManager, GDCM_NAME_SPACE::DataEntry, GDCM_NAME_SPACE::DicomDir, GDCM_NAME_SPACE::DicomDirElement, GDCM_NAME_SPACE::DicomDirImage, GDCM_NAME_SPACE::DicomDirMeta, GDCM_NAME_SPACE::DicomDirPatient, GDCM_NAME_SPACE::DicomDirPrivate, GDCM_NAME_SPACE::DicomDirSerie, GDCM_NAME_SPACE::DicomDirStudy, GDCM_NAME_SPACE::DicomDirVisit, GDCM_NAME_SPACE::DicomEntry, GDCM_NAME_SPACE::Dict, GDCM_NAME_SPACE::DictEntry, GDCM_NAME_SPACE::DictGroupName, GDCM_NAME_SPACE::DictSet, GDCM_NAME_SPACE::DirList, GDCM_NAME_SPACE::DocEntry, GDCM_NAME_SPACE::ElementSet, GDCM_NAME_SPACE::FileHelper, GDCM_NAME_SPACE::JPEGFragment, GDCM_NAME_SPACE::PixelReadConvert, GDCM_NAME_SPACE::RLEFrame, GDCM_NAME_SPACE::SeqEntry, GDCM_NAME_SPACE::SerieHelper, GDCM_NAME_SPACE::SQItem, GDCM_NAME_SPACE::TS, and GDCM_NAME_SPACE::VR.

Definition at line 42 of file gdcmBase.h.

00043                                                {};

void GDCM_NAME_SPACE::RefCounter::Register (   )  [inline, inherited]


Register the object.

Remarks:
It increments the reference counting

Definition at line 46 of file gdcmRefCounter.h.

Referenced by GDCM_NAME_SPACE::SQItem::AddEntry(), GDCM_NAME_SPACE::SeqEntry::AddSQItem(), GDCM_NAME_SPACE::SeqEntry::Copy(), GDCM_NAME_SPACE::DicomDir::Copy(), GDCM_NAME_SPACE::FileHelper::FileHelper(), GetDictEntry(), GDCM_NAME_SPACE::DocEntry::GetName(), GDCM_NAME_SPACE::DocEntry::GetVM(), InsertEntryString(), GDCM_NAME_SPACE::CommandManager::InSetCommand(), GDCM_NAME_SPACE::DocEntryArchive::Push(), and GDCM_NAME_SPACE::SeqEntry::SetDelimitationItem().

00046 { RefCount++; }

virtual bool GDCM_NAME_SPACE::DocEntrySet::RemoveEntry (  DocEntry *  entryToRemove  )  [pure virtual]


Removes any type of entry out of the entry set, and destroys it.

Implemented in GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Referenced by InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), and GDCM_NAME_SPACE::DicomDir::MoveSQItem().

bool GDCM_NAME_SPACE::DocEntrySet::SetEntryBinArea (  uint8_t *  content,
int  lgth,
DataEntry *  entry
)


Accesses an existing DataEntry (i.e. a Dicom Element) and modifies its content with the given value.

Parameters:
content new value (void* -> uint8_t*) to substitute with
entry Entry to be modified
lgth new value length

Definition at line 195 of file gdcmDocEntrySet.cxx.

References GDCM_NAME_SPACE::DataEntry::SetBinArea(), and GDCM_NAME_SPACE::DocEntry::SetLength().

00196 {
00197    if (entry)
00198    {
00199       entry->SetLength(lgth);
00200       entry->SetBinArea(content);
00201       return true;
00202    }
00203    return false;
00204 }

bool GDCM_NAME_SPACE::DocEntrySet::SetEntryBinArea (  uint8_t *  content,
int  lgth,
uint16_t  group,
uint16_t  elem
)


Accesses an existing DocEntry (i.e. a Dicom Element) through its (group, element) and modifies its content with the given value.

Parameters:
content new value (void* -> uint8_t*) to substitute with
lgth new value length
group group number of the Dicom Element to modify
elem element number of the Dicom Element to modify

Definition at line 158 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GetDataEntry().

Referenced by InsertEntryBinArea(), and GDCM_NAME_SPACE::FileHelper::SetEntryBinArea().

00160 {
00161    DataEntry *entry = GetDataEntry(group, elem);
00162    if (!entry )
00163    {
00164       gdcmWarningMacro( "No corresponding DataEntry " << std::hex << group <<
00165                         "," << elem << " element (try promotion first).");
00166       return false;
00167    }
00168
00169    return SetEntryBinArea(content,lgth,entry);
00170 }

bool GDCM_NAME_SPACE::DocEntrySet::SetEntryString (  std::string const &  content,
DataEntry *  entry
)


Accesses an existing DocEntry (i.e. a Dicom Element) and modifies its content with the given value.

Parameters:
content new value (string) to substitute with
entry Entry to be modified

Definition at line 178 of file gdcmDocEntrySet.cxx.

References GDCM_NAME_SPACE::DataEntry::SetString().

00179 {
00180    if (entry)
00181    {
00182       entry->SetString(content);
00183       return true;
00184    }
00185    return false;
00186 }

bool GDCM_NAME_SPACE::DocEntrySet::SetEntryString (  std::string const &  content,
uint16_t  group,
uint16_t  elem
)


Accesses an existing DocEntry (i.e. a Dicom Element) through its (group, element) and modifies its content with the given value.

Parameters:
content new value (string) to substitute with
group group number of the Dicom Element to modify
elem element number of the Dicom Element to modify

Definition at line 136 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GetDataEntry().

Referenced by GDCM_NAME_SPACE::File::AnonymizeFile(), InsertEntryString(), and GDCM_NAME_SPACE::FileHelper::SetEntryString().

00138 {
00139    DataEntry *entry = GetDataEntry(group, elem);
00140    if (!entry )
00141    {
00142       gdcmWarningMacro( "No corresponding DataEntry " << std::hex << group <<
00143                          "," << elem << " element (try promotion first).");
00144       return false;
00145    }
00146    return SetEntryString(content,entry);
00147 }

void GDCM_NAME_SPACE::Base::SetPrintLevel (  int  level  )  [inline, inherited]


Sets the print level for the Dicom Header Elements.

Note:
0 for Light Print; 1 for 'medium' Print, 2 for Heavy Print

Definition at line 47 of file gdcmBase.h.

Referenced by GDCM_NAME_SPACE::FileHelper::Print(), and GDCM_NAME_SPACE::DicomDir::Print().

00047 { PrintLevel = level; }

void GDCM_NAME_SPACE::RefCounter::Unregister (   )  [inline, inherited]


Unregister the object.

Remarks:
It decrements the reference counting

Definition at line 50 of file gdcmRefCounter.h.

Referenced by GDCM_NAME_SPACE::Document::ReadNextDocEntry(), GDCM_NAME_SPACE::SQItem::RemoveEntry(), GDCM_NAME_SPACE::ElementSet::RemoveEntry(), and GDCM_NAME_SPACE::FileHelper::~FileHelper().

00051    {
00052 //std::cout <<"================Unreg " << typeid(*this).name() << std::endl;
00053       RefCount--;
00054       if(RefCount<=0)
00055         delete this;
00056    }

virtual void GDCM_NAME_SPACE::DocEntrySet::WriteContent (  std::ofstream *  fp,
FileType  filetype,
bool  insideMetaElements
)  [pure virtual]


write any type of entry to the entry set

Implemented in GDCM_NAME_SPACE::DicomDirMeta, GDCM_NAME_SPACE::DicomDirPatient, GDCM_NAME_SPACE::DicomDirSerie, GDCM_NAME_SPACE::DicomDirStudy, GDCM_NAME_SPACE::ElementSet, and GDCM_NAME_SPACE::SQItem.

Member Data Documentation

DocEntry* GDCM_NAME_SPACE::DocEntrySet::PreviousDocEntry [protected]


To be able to backtrack (Private Sequence, Implicit VR related pb).

Definition at line 128 of file gdcmDocEntrySet.h.

Referenced by GDCM_NAME_SPACE::Document::Backtrack(), and DocEntrySet().

int GDCM_NAME_SPACE::Base::PrintLevel [protected, inherited]


Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Definition at line 55 of file gdcmBase.h.

Referenced by GDCM_NAME_SPACE::SeqEntry::Print(), GDCM_NAME_SPACE::FileHelper::Print(), GDCM_NAME_SPACE::ElementSet::Print(), GDCM_NAME_SPACE::DocEntry::Print(), GDCM_NAME_SPACE::DictEntry::Print(), GDCM_NAME_SPACE::DicomDirStudy::Print(), GDCM_NAME_SPACE::DicomDirSerie::Print(), GDCM_NAME_SPACE::DicomDirPatient::Print(), GDCM_NAME_SPACE::DicomDirMeta::Print(), GDCM_NAME_SPACE::DicomDir::Print(), and GDCM_NAME_SPACE::DataEntry::Print().

The documentation for this class was generated from the following files:
Generated on Fri Aug 24 12:57:02 2007 for gdcm by  doxygen 1.4.6
