BBTK Package wxvtk 1.0.0

Description : 2D/3D image/mesh viewers based on vtk and wx
Author(s) : infodev at creatis.insa-lyon.fr
Author(s) :
Version : 1.0.0
bbtk Version : "0.9.0"

Black Boxes :

Adaptors :


Top

Castbbwxvtk::wxVTKRenderWindowInteractor*TovtkRenderWindowInteractor*

Description : Static cast from bbwxvtk::wxVTKRenderWindowInteractor* (bbwxvtk::wxVTKRenderWindowInteractor*) to vtkRenderWindowInteractor* (vtkRenderWindowInteractor*)
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : atomic box  adaptor
To use it : include wxvtk

Inputs
 In
 <bbwxvtk::wxVTKRenderWindowInteractor*>
Input
 BoxExecute
 <bbtk::Void>
Any signal received by this input executes the box
 BoxProcessMode
 <std::string>
Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
 Out
 <vtkRenderWindowInteractor*>
Output
 BoxChange
 <bbtk::Void>
Signals modifications of the box


Top

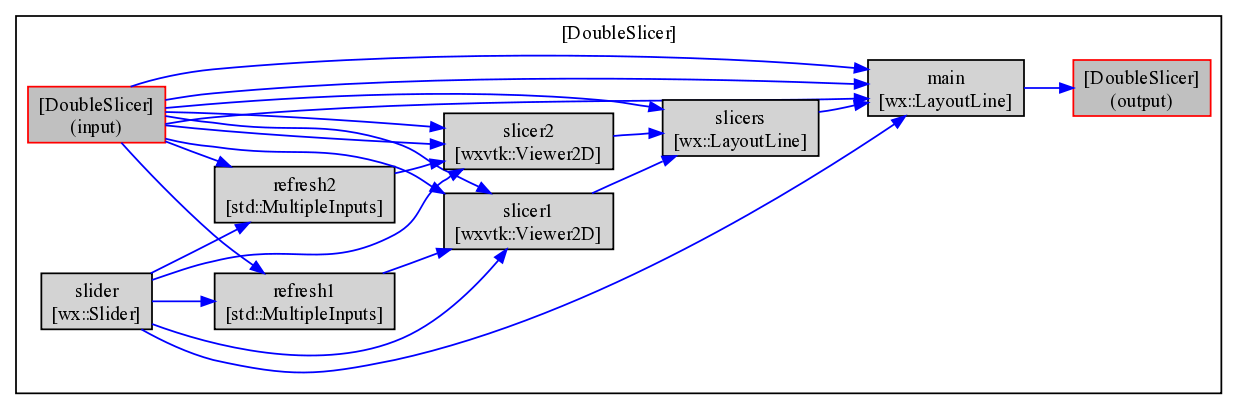

DoubleSlicer

Description : Simple viewer displaying the same slice of two images. The slice is controlled by a slider. See exampleDoubleSlicer.bbs.
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/boxes/bbDoubleSlicer.bbs  [source]
Uses : wx::LayoutLine std::MultipleInputs wxvtk::Viewer2D wx::Slider

Inputs
 BoxProcessModeSlicer1
 <std::string>
Process mode of the first slicer
 BoxProcessModeSlicer2
 <std::string>
Process mode of the second slicer
 In1
 <vtkImageData*>
Left (or top) image
 In2
 <vtkImageData*>
Right (or bottom) image
 Orientation
 <std::string>
Orientation of the images (0=Horizontal / 1=Vertical)
 RefreshSlicer1
 <bbtk::Void>
Refreshes the first slicer
 RefreshSlicer2
 <bbtk::Void>
Refreshes the second slicer
 WinHeight
 <int>
Width of the window
 WinTitle
 <std::string>
Title of the window
 WinWidth
 <int>
Width of the window
Outputs
 Widget
 <wxWindow*>
Widget


Top

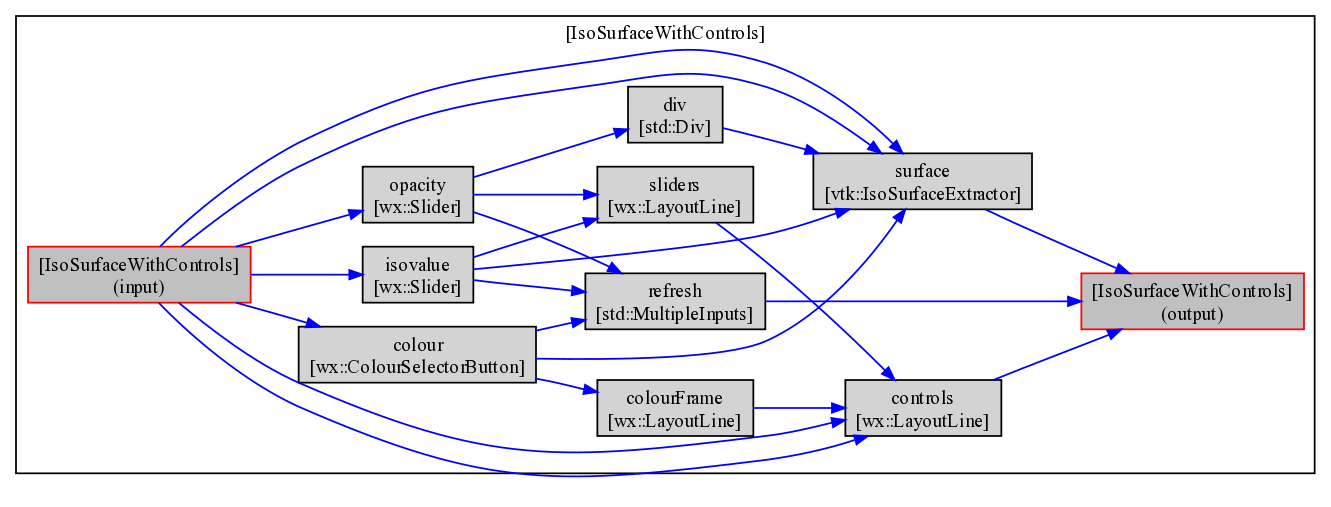

IsoSurfaceWithControls

Description : Image iso-surface extractor (vtk::IsoSurfaceExtractor) with associated control panel (isovalue, opacity and colour)
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  image  mesh  widget  viewer
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/boxes/bbIsoSurfaceWithControls.bbs  [source]
Uses : wx::ColourSelectorButton wx::LayoutLine std::Div wx::Slider std::MultipleInputs vtk::IsoSurfaceExtractor

Inputs
 BoxExecute
 <bbtk::Void>
Box execution
 Colour
 <std::string>
Initial colour
 In
 <vtkImageData*>
Input image
 Isovalue
 <int>
Initial isovalue
 Opacity
 <int>
Initial opacity
 Title
 <std::string>
Title of the control panel
 Vertical
 <std::string>
Set to 1 to have controls arranged vertically
Outputs
 BoxChange
 <bbtk::Void>
BoxChange
 Out
 <vtkProp3D*>
Output surface
 Widget
 <wxWindow*>
Widget


Top

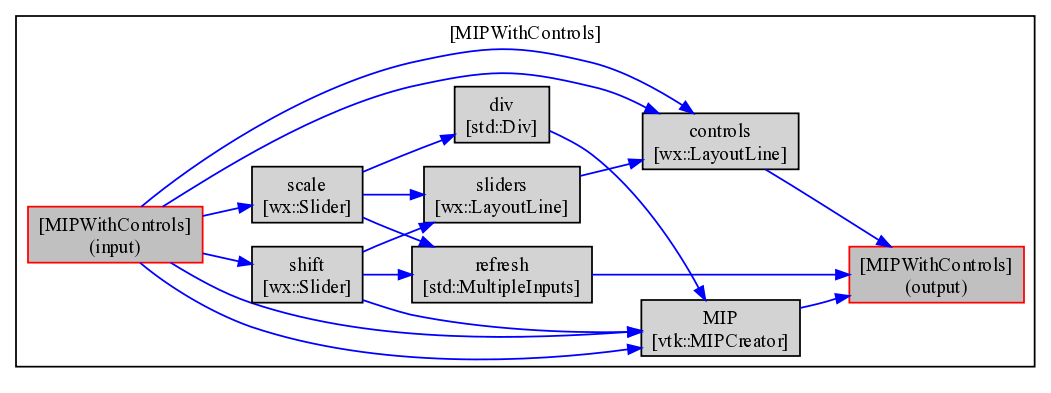

MIPWithControls

Description : Maximum Intensity Projection (MIP) creator (vtk::MIPCreator) with associated control panel (shift and scale)
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  image  mesh  widget  viewer
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/boxes/bbMIPWithControls.bbs  [source]
Uses : vtk::MIPCreator wx::LayoutLine std::Div std::MultipleInputs wx::Slider

Inputs
 BoxExecute
 <bbtk::Void>
Box execution
 In
 <vtkImageData*>
Input image
 Scale
 <int>
Initial scale
 Shift
 <int>
Initial shift
 Title
 <std::string>
Title of the control panel
 Vertical
 <std::string>
Set to 1 to have controls arranged vertically
Outputs
 BoxChange
 <bbtk::Void>
BoxChange
 Out
 <vtkProp3D*>
Output MIP
 Widget
 <wxWindow*>
Widget


Top

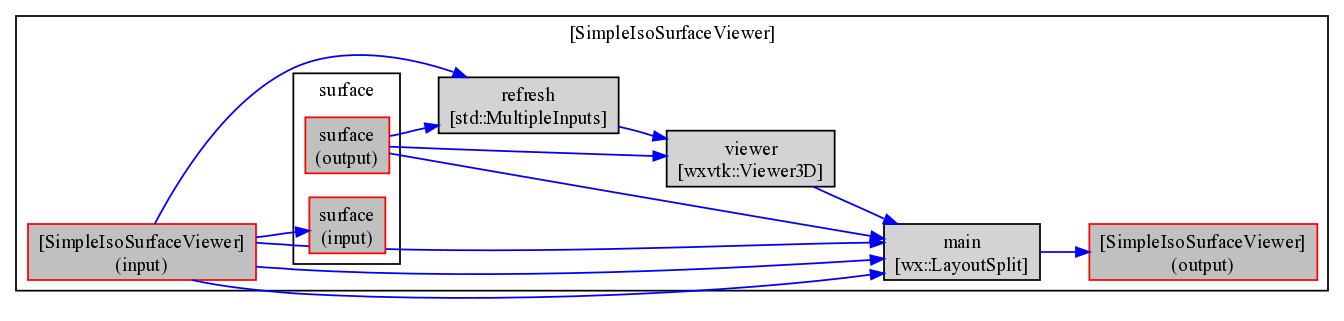

SimpleIsoSurfaceViewer

Description : Simple viewer of an iso-surface of an image
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  viewer
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/boxes/bbSimpleIsoSurfaceViewer.bbs  [source]
Uses : wx::LayoutSplit std::MultipleInputs wxvtk::IsoSurfaceWithControls wxvtk::Viewer3D

Inputs
 BoxExecute
 <bbtk::Void>
Execute the box
 In
 <vtkImageData*>
Input image
 WinHeight
 <int>
Height of the window
 WinTitle
 <std::string>
Title of the window
 WinWidth
 <int>
Width of the window
Outputs
 Widget
 <wxWindow*>
Widget


Top

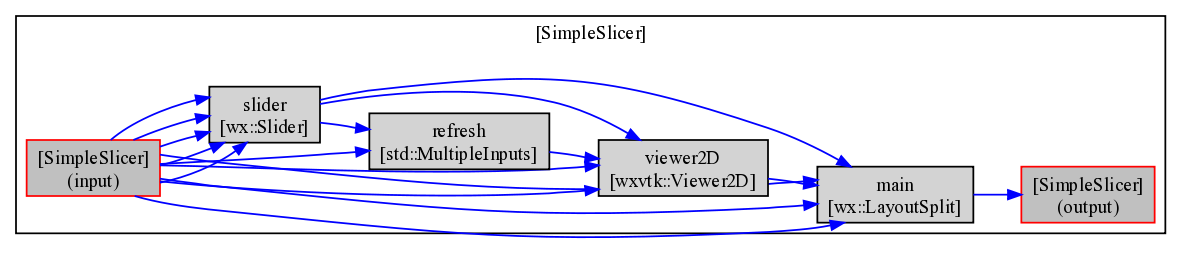

SimpleSlicer

Description : Simple 2D viewer of a slice of a 3D image. The slice is controlled by a slider. See exampleSimpleSlicer.bbs. Screenshot :
Author(s) : info-dev@creatis.insa-lyon.fr
Category(s) : complex box  viewer
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/boxes/bbSimpleSlicer.bbs  [source]
Uses : wx::LayoutSplit std::MultipleInputs wx::Slider wxvtk::Viewer2D

Inputs
 BoxExecute
 <bbtk::Void>
Execute the box
 In
 <vtkImageData*>
Input image
 Orientation
 <int>
Slicing orientation : 0:yz / 1:xz / 2:xy
 Slice
 <int>
Initial slice
 SliderOrientation
 <std::string>
Slider Orientation (H/V)
 SliderReactiveOnTrack
 <int>
Reactive On track (default : 0)
 SliderSize
 <int>
Slider Size
 SliderTitle
 <std::string>
Slider Title
 WinHeight
 <int>
Height of the window
 WinTitle
 <std::string>
Title of the window
 WinWidth
 <int>
Width of the window
Outputs
 Widget
 <wxWindow*>
Widget


Top

Viewer2D

Description : 2D Viewer widget (vtk)
Author(s) : eduardo.davila@creatis.insa-lyon.fr
Category(s) : atomic box  widget  viewer
To use it : include wxvtk

Inputs
 In
 <vtkImageData*>
Input Image
 Orientation
 <int>
Slicing orientation : 0:yz / 1:xz / 2:xy
 Slice
 <int>
Initial Slice number
 WinClose
 <bbtk::Void>
Any signal received closes the window (*)
 WinDialog
 <bool>
Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*)
 WinHeight
 <int>
Height of the window (*)
 WinHide
 <bbtk::Void>
Any signal received hides the window (*)
 WinTitle
 <std::string>
Title of the window (*)
 WinWidth
 <int>
Width of the window (* : only used if the widget is not connected to a Layout box)
 BoxExecute
 <bbtk::Void>
Any signal received by this input executes the box
 BoxProcessMode
 <std::string>
Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
 Out
 <int>
Current Slice number
 Renderer
 <vtkRenderer*>
vtk Renderer
 Widget
 <wxWindow*>
Output widget
 BoxChange
 <bbtk::Void>
Signals modifications of the box


Top

Viewer3D

Description : 3D Viewer widget (vtk)
Author(s) : eduardo.davila@creatis.insa-lyon.fr
Category(s) : atomic box  widget  viewer
To use it : include wxvtk

Inputs
 In1
 <vtkProp3D*>
Input actor
 In2
 <vtkProp3D*>
Input actor
 In3
 <vtkProp3D*>
Input actor
 In4
 <vtkProp3D*>
Input actor
 In5
 <vtkProp3D*>
Input actor
 Obs1
 <vtkInteractorObserver*>
Input observer
 Obs2
 <vtkInteractorObserver*>
Input observer
 Obs3
 <vtkInteractorObserver*>
Input observer
 Obs4
 <vtkInteractorObserver*>
Input observer
 Obs5
 <vtkInteractorObserver*>
Input observer
 Stereo
 <bool>
Stereo with Red-Blue filter. False/True (default False)
 WinClose
 <bbtk::Void>
Any signal received closes the window (*)
 WinDialog
 <bool>
Set to 'true' to create a dialog window, i.e. which blocks the pipeline until it is closed (modal) (*)
 WinHeight
 <int>
Height of the window (*)
 WinHide
 <bbtk::Void>
Any signal received hides the window (*)
 WinTitle
 <std::string>
Title of the window (*)
 WinWidth
 <int>
Width of the window (* : only used if the widget is not connected to a Layout box)
 BoxExecute
 <bbtk::Void>
Any signal received by this input executes the box
 BoxProcessMode
 <std::string>
Sets the processing mode of the box (Pipeline | Always | Reactive)
Outputs
 Interactor
 <bbwxvtk::wxVTKRenderWindowInteractor*>
Interactor with which vtk widgets can interact
 Renderer
 <vtkRenderer*>
Renderer to which actors can be added.
 Widget
 <wxWindow*>
Output widget
 BoxChange
 <bbtk::Void>
Signals modifications of the box


Top

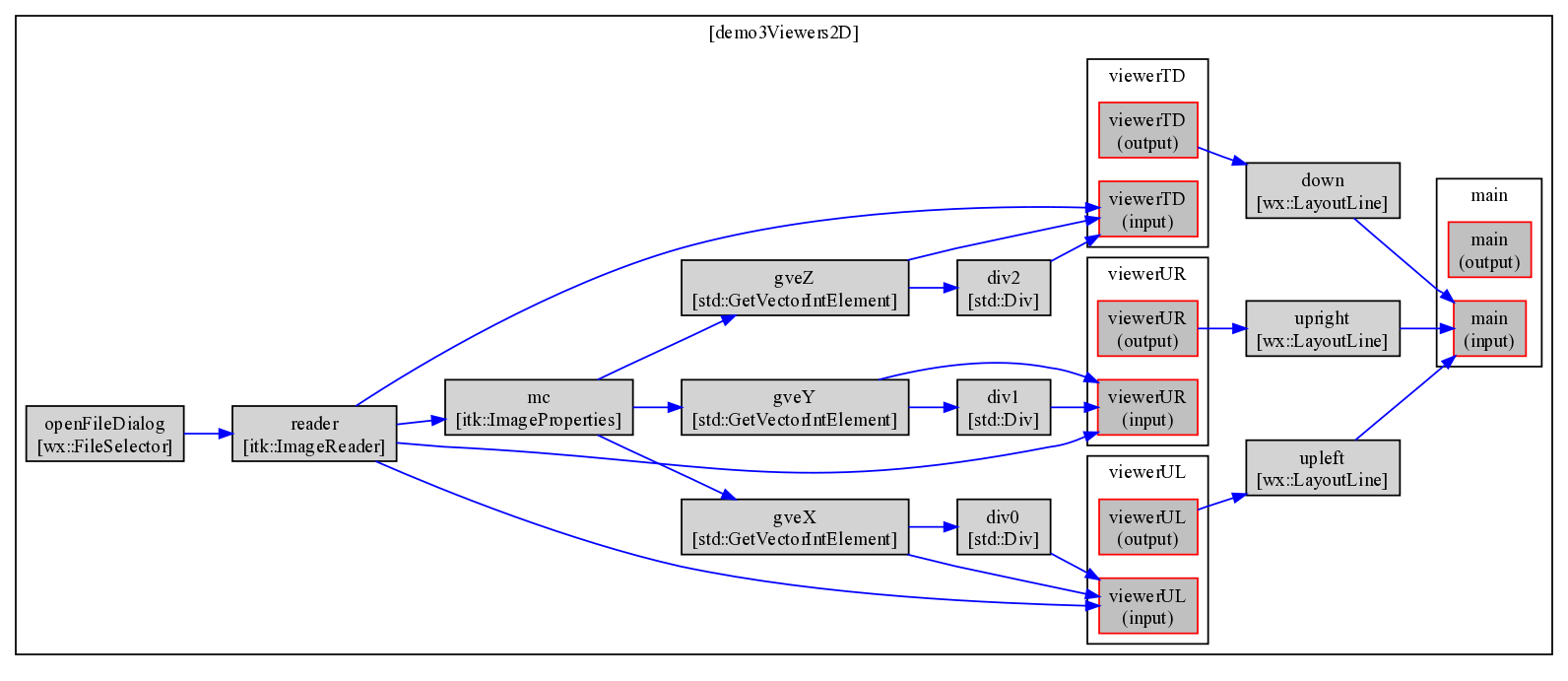

demo3Viewers2D

Description : Little Demo of the box Viewer2D.
Author(s) : info-dev@creatis.insa-lyon.fr
Category(s) : complex box  demo
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/demo3Viewers2D.bbs  [source]
Uses : std::Div wx::LayoutLine std::GetVectorIntElement wx::LayoutTDown itk::ImageProperties wx::FileSelector itk::ImageReader wxvtk::SimpleSlicer

Inputs
Outputs


Top

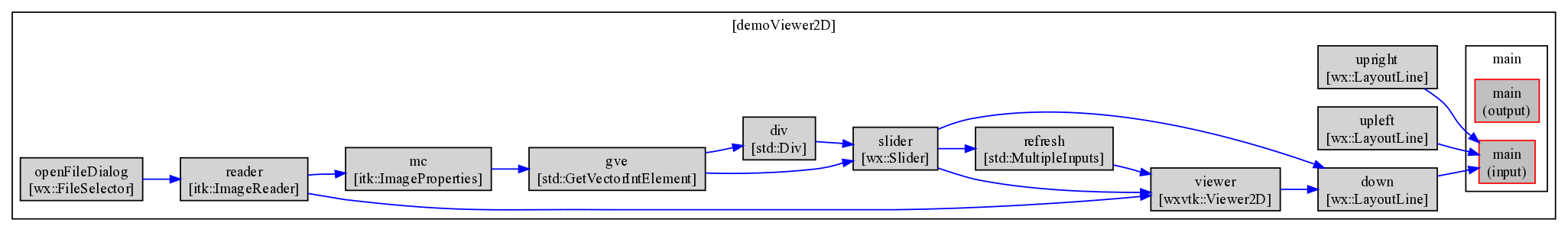

demoViewer2D

Description : Little Demo of the box Viewer2D.
Author(s) : info-dev@creatis.insa-lyon.fr
Category(s) : complex box  demo
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/demoViewer2D.bbs  [source]
Uses : std::Div wx::LayoutLine std::GetVectorIntElement wx::LayoutTDown itk::ImageProperties wx::FileSelector itk::ImageReader std::MultipleInputs wx::Slider wxvtk::Viewer2D

Inputs
Outputs


Top

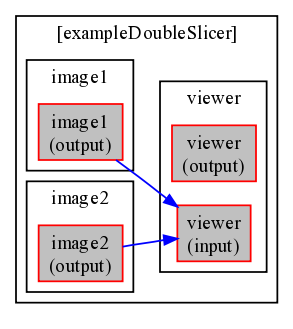

exampleDoubleSlicer

Description : Demo of the box DoubleSlicer.
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleDoubleSlicer.bbs  [source]
Uses : vtk::LoadHola wxvtk::DoubleSlicer

Inputs
Outputs


Top

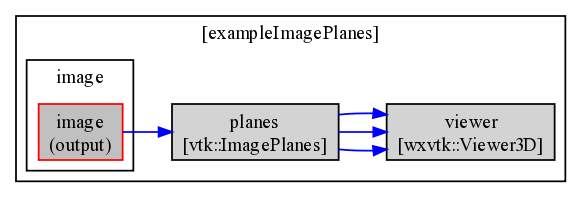

exampleImagePlanes

Description : Example of the box vtk::ImagePlanes.
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleImagePlanes.bbs  [source]
Uses : vtk::LoadHola vtk::ImagePlanes wxvtk::Viewer3D

Inputs
Outputs


Top

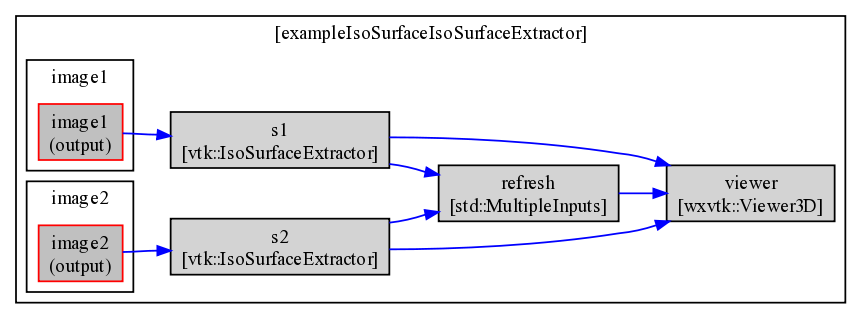

exampleIsoSurfaceIsoSurfaceExtractor

Description : Example of IsoSurfaceExtractor.
Author(s) : jpr at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceIsoSurfaceExtractor.bbs  [source]
Uses : vtk::LoadHola std::MultipleInputs vtk::IsoSurfaceExtractor wxvtk::Viewer3D

Inputs
Outputs


Top

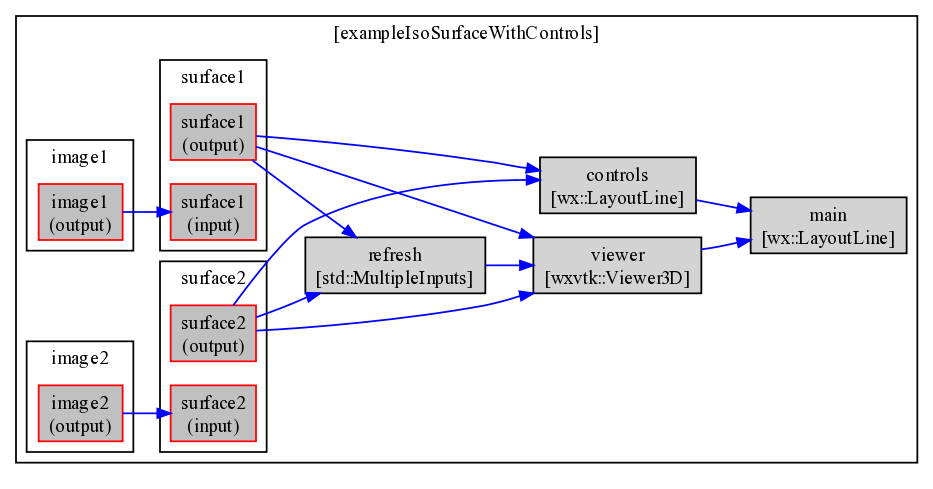

exampleIsoSurfaceWithControls

Description : Example of IsoSurfaceWithControls.
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWithControls.bbs  [source]
Uses : wx::LayoutLine vtk::LoadHola std::MultipleInputs wxvtk::IsoSurfaceWithControls wxvtk::Viewer3D

Inputs
Outputs


Top

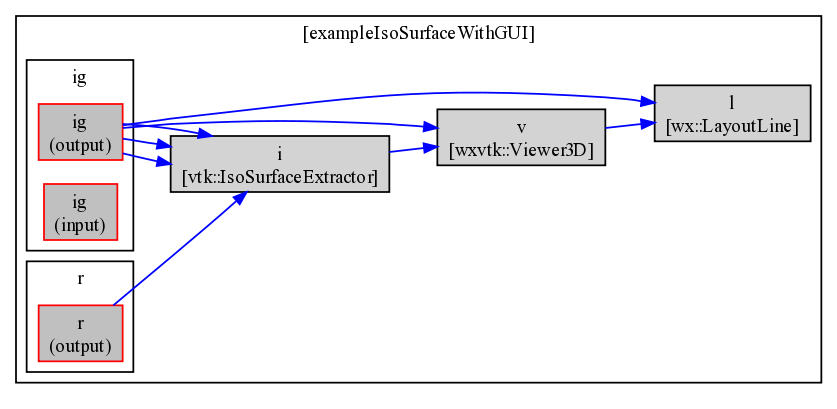

exampleIsoSurfaceWithGUI

Description : Example of automatic gui creation for IsoSurfaceExtractor with the command 'newgui'.
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWithGUI.bbs  [source]
Uses : vtk::IsoSurfaceExtractor wxvtk::igType wx::LayoutLine vtk::LoadHola wxvtk::Viewer3D

Inputs
Outputs


Top

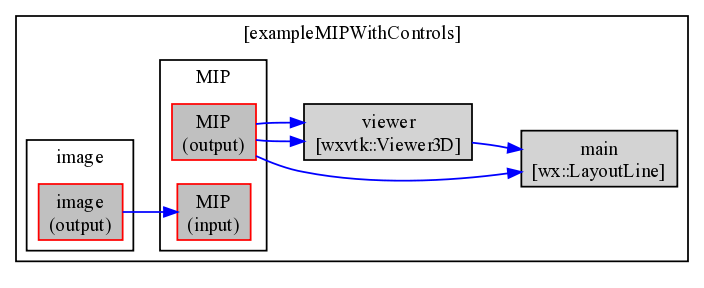

exampleMIPWithControls

Description : Example of MIPWithControls.
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleMIPWithControls.bbs  [source]
Uses : wxvtk::MIPWithControls vtk::LoadHola wx::LayoutLine wxvtk::Viewer3D

Inputs
Outputs


Top

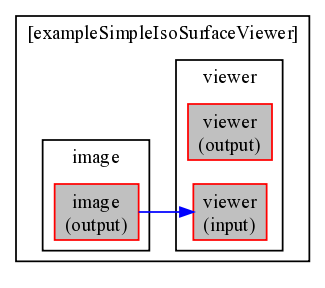

exampleSimpleIsoSurfaceViewer

Description : Example of the box SimpleIsoSurfaceViewer.
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleSimpleIsoSurfaceViewer.bbs  [source]
Uses : vtk::LoadHola wxvtk::SimpleIsoSurfaceViewer

Inputs
Outputs


Top

exampleSimpleSlicer

Description : Example of the box SimpleSlicer.
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleSimpleSlicer.bbs  [source]
Uses : vtk::LoadHola wxvtk::SimpleSlicer

Inputs
Outputs


Top

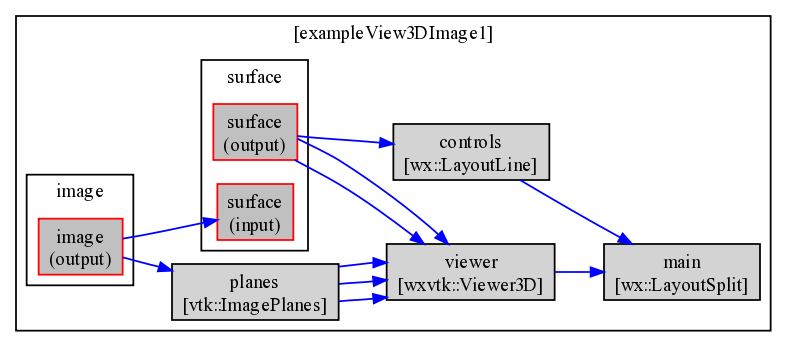

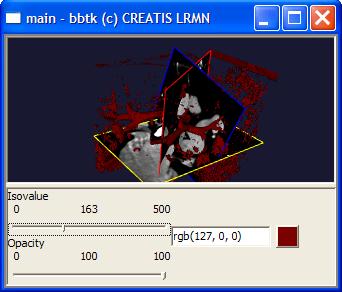

exampleView3DImage1

Description : Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWithControls. Screenshot :
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleView3DImage1.bbs  [source]
Uses : wx::LayoutLine vtk::LoadHola wx::LayoutSplit vtk::ImagePlanes wxvtk::IsoSurfaceWithControls wxvtk::Viewer3D

Inputs
Outputs


Top

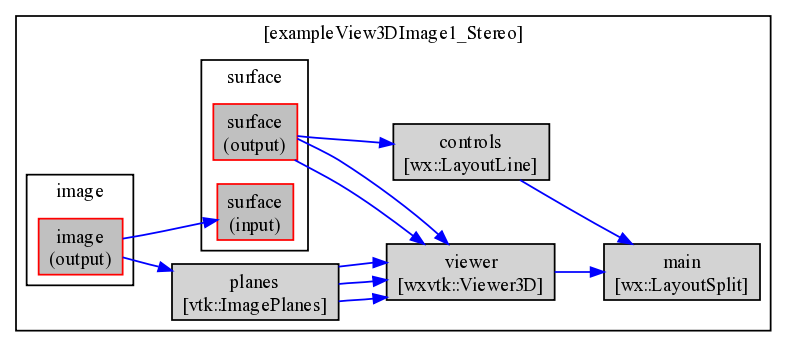

exampleView3DImage1_Stereo

Description : Example of complex 3D view of an image using vtk::ImagePlanes and wxvtk::IsoSurfaceWithControls. Screenshot :
Author(s) : laurent.guigues at creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleView3DImage1_Stereo.bbs  [source]
Uses : wx::LayoutLine vtk::LoadHola wx::LayoutSplit vtk::ImagePlanes wxvtk::IsoSurfaceWithControls wxvtk::Viewer3D

Inputs
Outputs


Top

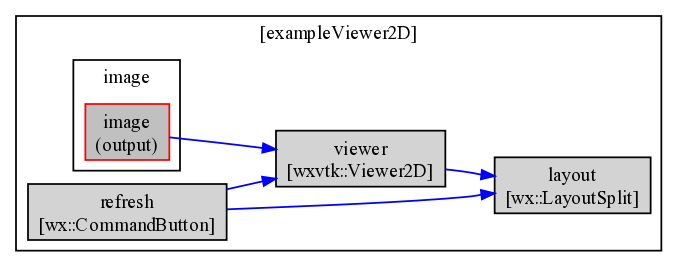

exampleViewer2D

Description : Example of the box Viewer2D.
Author(s) : laurent.guigues@creatis.insa-lyon.fr
Category(s) : complex box  example
To use it : include /home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleViewer2D.bbs  [source]
Uses : vtk::LoadHola wx::LayoutSplit wx::CommandButton wxvtk::Viewer2D

Inputs
Outputs


Top

igType

Description :
Author(s) :
Category(s) : complex box
To use it : include buffer_/home/jpr/Creatis/bbtk/binLIN/bin/../share/bbtk/bbs/wxvtk/appli/exampleIsoSurfaceWithGUI.bbs_19  [source]
Uses : std::StringToVectorDouble wx::GUIcolour std::StringToDouble wx::GUIdouble std::MultipleInputs wx::LayoutLine

Inputs
 WinDialog
 <bool>
Dialog
 WinHeight
 <int>
Height
 WinHide
 <bbtk::Void>
Hide
 WinTitle
 <std::string>
Title
 WinWidth
 <int>
Width
Outputs
 BoxChange
 <bbtk::Void>
BoxChange
 Colour
 <std::vector<double, std::allocator<double> >>
Colour
 Isovalue
 <double>
Isovalue
 Opacity
 <double>
Opacity
 Widget
 <wxWindow*>
Widget


Automatically generated by bbtk on 21/9/2008 - 8:41 GMT
