| Description | : | Image Readers and Writers |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Author(s) | : | |
| Version | : | 1.0.0 |
| bbtk Version | : | "0.9.0" |
Black Boxes :
| Gimmick | Gimmick! (Gimme my medical images quick!) is a medical image reader widget. It handles DICOM,jpg,tif,png,bmp and mhd. Images read are stored in sqlite3 databases and thus retrieved very quick next time. Screenshot : |
| demoGimmick | Demo of the Gimmick image reader |
| Description | : | Gimmick! (Gimme my medical images quick!) is a medical image reader widget. It handles DICOM,jpg,tif,png,bmp and mhd. Images read are stored in sqlite3 databases and thus retrieved very quick next time. Screenshot : |
| Author(s) | : | laurent.guigues@creatis.insa-lyon.fr |
| Category(s) | : | atomic box image reader dicom |
| To use it | : | include creaImageIO |
| Inputs | ||
ImageDimension | <int> | The maximal dimensionality of the image to be selected, e.g. 2 for a 2D image, 3 for a 3D image,... |
Title | <std::string> | Title of the dialog |
BoxExecute | <bbtk::Void> | Any signal received by this input executes the box |
BoxProcessMode | <std::string> | Sets the processing mode of the box (Pipeline | Always | Reactive) |
| Outputs | ||
Out | <vtkImageData*> | The selected image |
BoxChange | <bbtk::Void> | Signals modifications of the box |

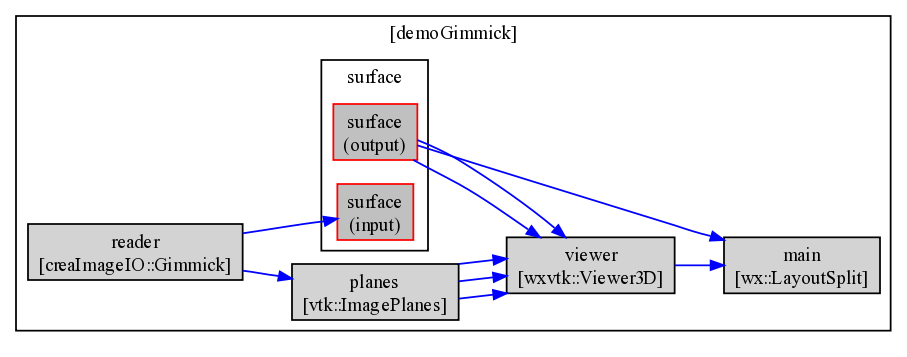

| Description | : | Demo of the Gimmick image reader |
| Author(s) | : | laurent.guigues at creatis.insa-lyon.fr |
| Category(s) | : | complex box demo |
| To use it | : | include /home/jpr/Creatis/creaImageIO/binLIN/share/bbtk/bbs/creaImageIO/appli/demoGimmick.bbs [source] |
| Uses | : | wx::LayoutSplit vtk::ImagePlanes creaImageIO::Gimmick wxvtk::IsoSurfaceWithControls wxvtk::Viewer3D |
| Inputs | ||
| Outputs |
