[Vv] Strange problem with VV and RTDose from Eclipse

[Thomas Baudier]

Hi Theo,

It's a strange problem. It looks like your dicom image is understood
like a float image instead of a int (or char or something else). but I
do not know how you can deal with that problem.
I think another bug is the value of the voxel. If your image is in Gy,
it's strange to have 3.6e14. Maybe the tags in the dicom file are not
well understand.
Is it possible for you to use a python tool called gatetools
(https://github.com/OpenGATE/GateTools) to convert your image from dicom
to mhd with:
gt_image_convert -o yourImage.mhd yourDicom.dcm

Maybe the mhd will look like better.

Thank you
Thomas

On 10/03/2021 20:37, Mutanga, Theodore wrote:
>
> Hi,
>

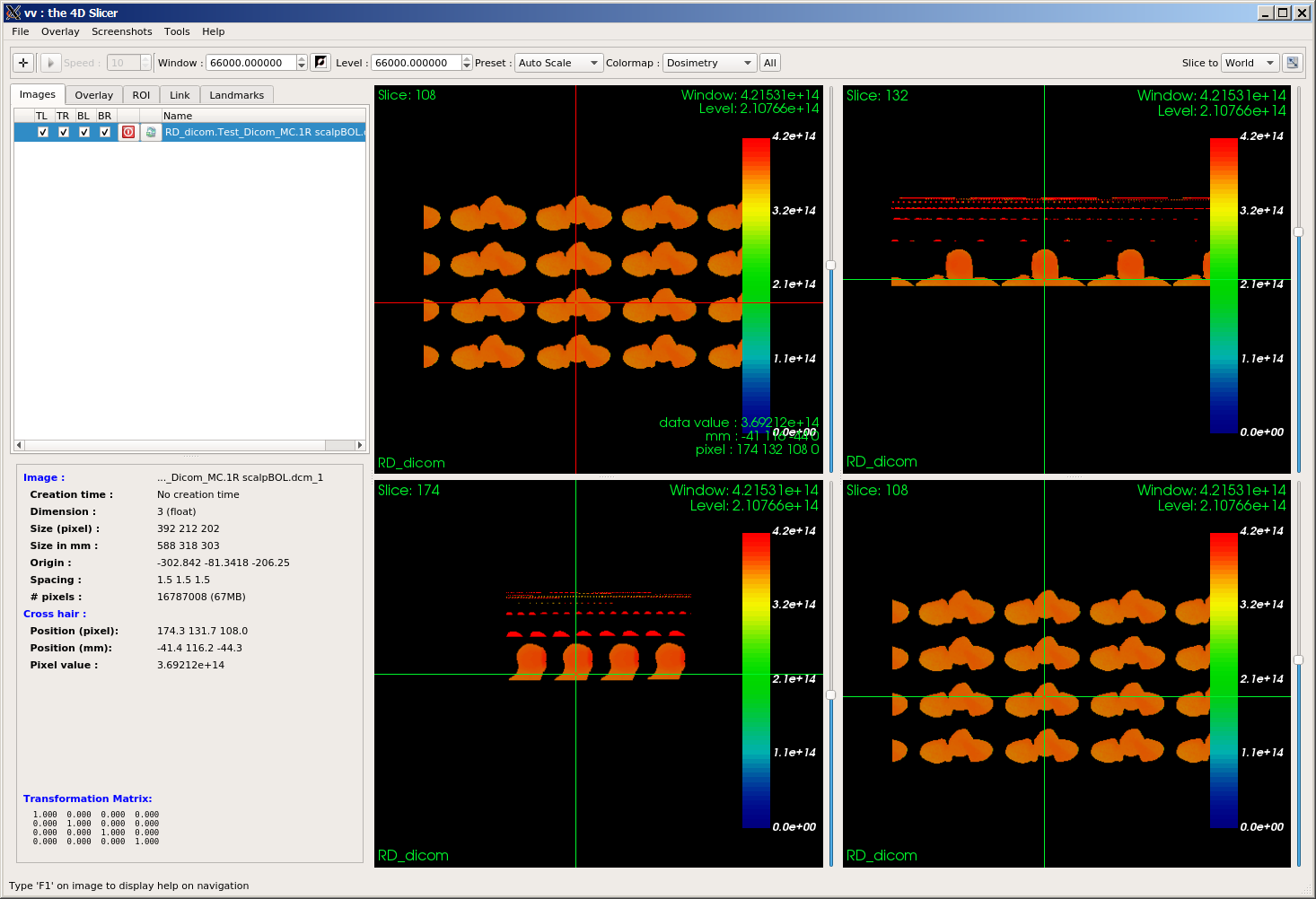

> I have vv version vv_v1.4.0 on linux and I can’t view the RT dose
> properly.  Is this a known issue ?
>
> Are there tools to extract slices (dose plane) from the distribution ?
>
> Thanks
>
> Theo
>
> *Theodore F. Mutanga, PhD, MCCPM*
>
> /Medical Physicist/
>
> Department of Medical Physics
>
> Mississauga Halton/Central West Regional Cancer Program
>
> Trillium Health Partners - Credit Valley Hospital site
>
> 2200 Eglinton Avenue West, Mississauga, ON  L5M 2N1
>
> Room 1F 148
>
> phone     905-813-1100 ext. 6973
>
> *Theodore.Mutanga at thp.ca <mailto:Theodore.Mutanga at thp.ca>
>
> : www.trilliumhealthpartners.ca
> <https://na01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fwww.trilliumhealthpartners.ca%2F&data=01%7C01%7CDaren.Sawkey%40varian.com%7Ce295adab2004435ca57208d467c97dba%7Cc49d9c494b114ccdb13772f88c68a252%7C1&sdata=2Sgt6A02RtFybjRgs9KP2zxBD6E137WiqiYGnbtPsAo%3D&reserved=0>
>
> THP signatureMHCW signature
>
>
> ------------------------------------------------------------------------
>
> CONFIDENTIALITY NOTICE: /This information is intended only for the use
> of the individual named in this email. If you are not the intended
> recipient, you are hereby notified that any disclosure, copying,
> distribution or action taken in reliance on the contents of these
> documents is strictly prohibited. If you have received this email in
> error, please notify the sender immediately. Before printing this
> document, please consider the environment.
>
> /
>
>
> _______________________________________________
> vv mailing list
> vv at creatis.insa-lyon.fr
> https://www.creatis.insa-lyon.fr/mailman/listinfo/vv
