[Vv] How to use VV?

[Joël Schaerer]

Hi Mark,

If you want to use the overlay, you should load only one sequence, and
use the overlay function (Overlay menu/ Add overlay...) to load the
second one. Now there is a catch: the overlay function can't load Dicom
directly, so you should open the sequence first, save it as *.mha (for
example, it can be any format ITK can read), and use that for the overlay.

It's approximately the same deal for deformation fields, just load a
3-component mhd file (or any other format ITK can read).

Hope this helps!

joel

On 02/26/2012 02:39 PM, Rabotnikov, Mark wrote:
>
> Hello,
>
> 1.I'm trying to use the VV: I've loaded 2 Dicom series and try to view
> them using image fusion (either with complementary colors or

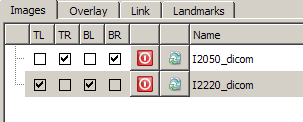

> transparency). Now I see 2 series in this way:
>
> I assume that in order to get fusion I need to select both series for
> some viewport (TL, TR, etc.) Is this correct?
>
> If yes, when I try to select the second series, the first one (its
> checkbox) becomes unchecked. What is wrong here?
>
> 2.Where can I see how to work with deformation fields (how to load
> them, in what format, etc.) ?
>
> Thanks you very much,
>
> Mark
>
>
> ------------------------------------------------------------------------
> The information contained in this message may be confidential and
> legally protected under applicable law. The message is intended solely
> for the addressee(s). If you are not the intended recipient, you are
> hereby notified that any use, forwarding, dissemination, or
> reproduction of this message is strictly prohibited and may be
> unlawful. If you are not the intended recipient, please contact the
> sender by return e-mail and destroy all copies of the original message.
>
>
> _______________________________________________
> vv mailing list
> vv at creatis.insa-lyon.fr
> http://www.creatis.insa-lyon.fr/mailman/listinfo/vv
