[Rtk-users] Implementing a Motion-Compensated SART (MCSART) Reconstruction

Thu Apr 17 22:34:04 CEST 2025

As an update, I swapped to the voxel-based back projection (from CudaRaycast) and normalized in just one step by dividing the forward projection by a forward projection of ones. The image quality did improve a little, but the main artifact of concern is still present. To describe the artifact better, it's a bright cylinder near the center of the patient. I'm now wondering if this may be a geometry error of some kind rather than normalization... No such artifact exists when I use the rtksart application, which uses the same geometry file I use in my MCSART MATLAB implementation. But there are other areas where geometry artifacts might originate, like improperly updating file headers etc...

Since my coding is very clunky, my code involves a lot of saving out variables, sending them to RTK applications, then loading the results back into MATLAB for deformation. Not exactly streamlined, I know. But perhaps some header information isn't being sent to the RTK applications that should be at some point, or the header information is off slightly somewhere. I'll attach an image of the artifact in question to this email, though I'm not sure it will appear on the message board.

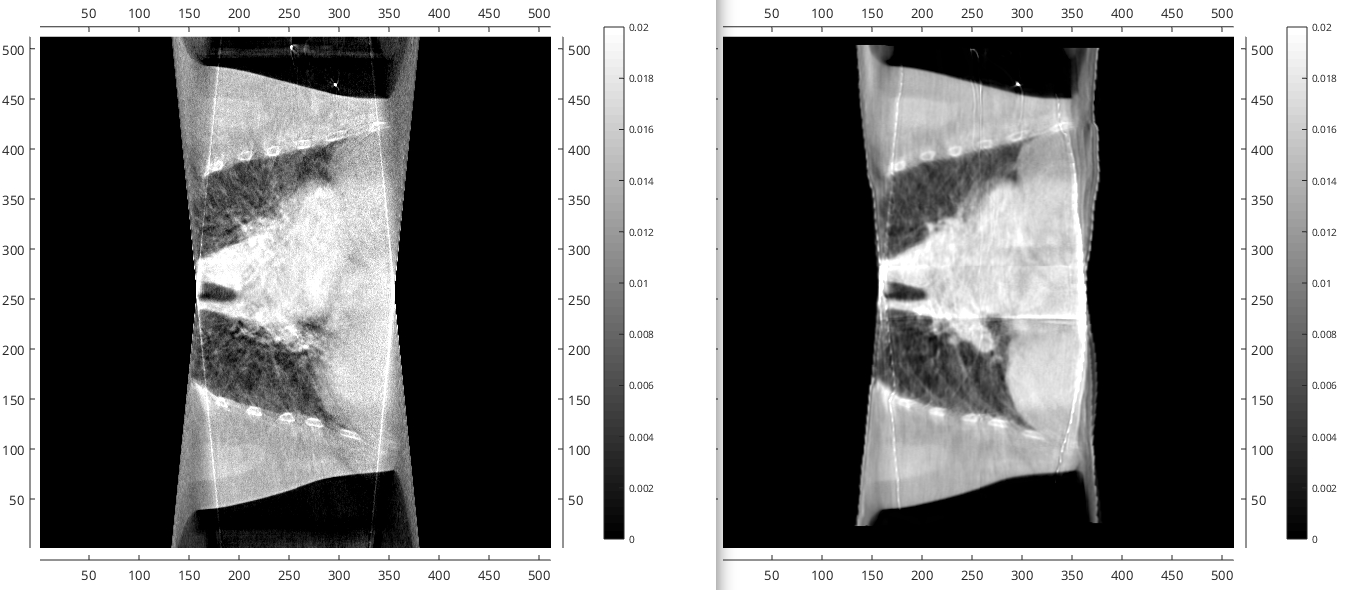

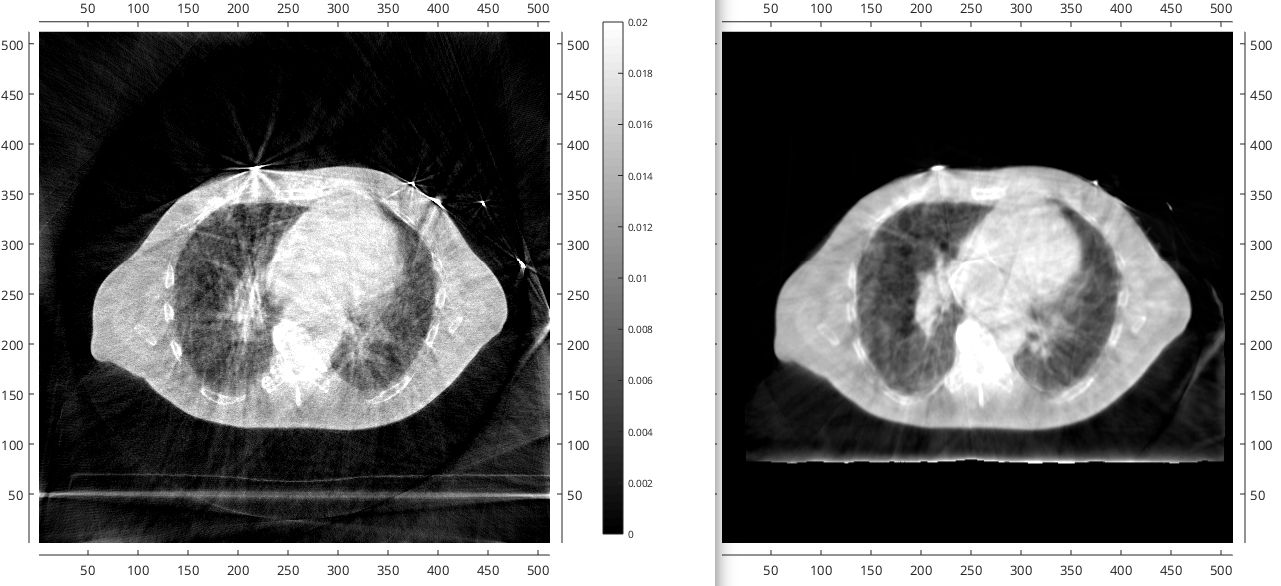

In the images, left is the rtksart output and right is my MCSART result (after one iteration). Also notice that the SART image appears sharper than MCSART - I can't be sure if that's a function of noise or what, but that difference may also speak to the issue for all I know... That diaphragm sure gets sharper though, so motion compensation is at least doing what it should be doing.
[cid:02744979-c088-4d07-9d35-b82eda152616]

[cid:9140b673-60d9-4283-9760-e149a32c3a2e]

________________________________
From: Andosca, Ryan <RAndosca at mednet.ucla.edu>
Sent: Thursday, April 17, 2025 8:55 AM
To: Simon Rit <simon.rit at creatis.insa-lyon.fr>
Cc: rtk-users at openrtk.org <rtk-users at openrtk.org>
Subject: Re: [Rtk-users] Implementing a Motion-Compensated SART (MCSART) Reconstruction

Hi Simon,

Thank you so much for your reply! If I understand correctly, I just need to divide the forward projection step by a forward projection of ones (using your Joseph forward projector, which I do), and if I use voxel-wise back projection I needn't apply a secondary normalization to the back projection step? Is there a downside, maybe computationally, to this implementation? And if I do use Joseph back projection, do I normalize by dividing by a Joseph back projection of ones through the current projection's geometry? Apologies for the flurry of questions, I'm quite new to this and doing my best to learn as I go!

If you are able to implement a command line application that utilizes the warp projectors, that would be simply amazing for me! My Frankenstein implementation is a bit of a mess, after all.

I greatly appreciate all of your help!

Best,
Ryan
________________________________
From: Simon Rit <simon.rit at creatis.insa-lyon.fr>
Sent: Thursday, April 17, 2025 7:48 AM
To: Andosca, Ryan <RAndosca at mednet.ucla.edu>
Cc: rtk-users at openrtk.org <rtk-users at openrtk.org>
Subject: Re: [Rtk-users] Implementing a Motion-Compensated SART (MCSART) Reconstruction

Caution: External sender from outside our organization.
Proceed with caution with regard to links and attachments.
Report Suspicious<https://us-phishalarm-ewt.proofpoint.com/EWT/v1/F9wkZZsI-LA!NQZKB92JqBjHLcZIRWJ0aZ3KEw4s7AbRCLACL3c0LXgq9ucGal0mGm_Nc6Tppel1CJJe9obSKsZwpIAmMViSGzrzmowa9MR7iDOyuhrkh8XdZNx1RQuFT0lZslJ50k3E$>

Hi Ryan,
If you check our code, the normalization step is quite simplistic to avoid a backprojection: we simply calculate and divide by the length of the intersection between each ray and the "image box" (parallelepiped corresponding to the space occupied by the volume) using the rtk::RayBoxIntersectionImageFilter<https://urldefense.com/v3/__https://www.openrtk.org/Doxygen/classrtk_1_1SARTConeBeamReconstructionFilter.html__;!!F9wkZZsI-LA!GszYXB332VHa24rMYhbTodaEcyBkB3au3CfqoEhD766UVgPR9YWIjlUO-SvPdKa53H0Kor1LC_0Jw95zlWeI69YbY2D0kEAHUA$>. This is exactly what you should get if you forward project a volume of 1 with our Joseph forward projectors. See the diagram from the implementation of SART:
https://www.openrtk.org/Doxygen/classrtk_1_1SARTConeBeamReconstructionFilter.html<https://urldefense.com/v3/__https://www.openrtk.org/Doxygen/classrtk_1_1SARTConeBeamReconstructionFilter.html__;!!F9wkZZsI-LA!GszYXB332VHa24rMYhbTodaEcyBkB3au3CfqoEhD766UVgPR9YWIjlUO-SvPdKa53H0Kor1LC_0Jw95zlWeI69YbY2D0kEAHUA$>
Maybe you can try to do the same here?
For what you want to do, it would be better to use a forward and backprojector combining the projection and a vector field... We have it available for the backprojection<https://urldefense.com/v3/__https://www.openrtk.org/Doxygen/classrtk_1_1FDKWarpBackProjectionImageFilter.html__;!!F9wkZZsI-LA!GszYXB332VHa24rMYhbTodaEcyBkB3au3CfqoEhD766UVgPR9YWIjlUO-SvPdKa53H0Kor1LC_0Jw95zlWeI69YbY2DuZTwQnQ$> and for the forward<https://urldefense.com/v3/__https://www.openrtk.org/Doxygen/classrtk_1_1ForwardWarpImageFilter.html__;!!F9wkZZsI-LA!GszYXB332VHa24rMYhbTodaEcyBkB3au3CfqoEhD766UVgPR9YWIjlUO-SvPdKa53H0Kor1LC_0Jw95zlWeI69YbY2Dhk08GsA$>, maybe we should try to implement it in the SART command line application for you... I have opened an issue to track this:
https://github.com/RTKConsortium/RTK/issues/721<https://urldefense.com/v3/__https://github.com/RTKConsortium/RTK/issues/721__;!!F9wkZZsI-LA!GszYXB332VHa24rMYhbTodaEcyBkB3au3CfqoEhD766UVgPR9YWIjlUO-SvPdKa53H0Kor1LC_0Jw95zlWeI69YbY2AlXwVyeg$>
Cheers,
Simon

On Mon, Apr 14, 2025 at 6:25 PM Andosca, Ryan <RAndosca at mednet.ucla.edu<mailto:RAndosca at mednet.ucla.edu>> wrote:
Hi,

So, my experience with coding, especially in C, is extremely limited. I mostly work in MATLAB, and as such I've been primarily using the built-in console applications to perform reconstruction on CBCT datasets. The rtksart application works great and provides a beautiful reconstruction. My goal is to effectively do the same reconstruction, but tack on motion compensation to each iteration.

After delving into the algorithm implementation in rtksart as much as I am able, I wrote a MATLAB workflow that boils down to:

  *
Start with image of zeros
  *
Randomize gantry angle order
  *
Iterate over gantry angles:
     *
Load current projection forward and backward motion compensation DVFs
     *
Deform current image iteration to current gantry angle breathing state
     *
Forward project deformed image
     *
Subtract deformed projections from raw CBCT image data
     *
Back project the subtraction image
     *
NORMALIZE BACK PROJECTION (this is where I think my issue is)
     *
Deform normalized back projection back to the original image space
     *
Update current image: img = img + lambda * (normalized_back_projection / number_of_gantry_angles)
        *
Note: This step, as it also contains normalization, may also be a source of my issue...
     *
Set negatives to 0
     *
Repeat

I get an image that is much as I expect - a much sharper diaphragm and generally higher definition in soft tissue structures. So I must be generally on the right track. The issue is that the normalization is clearly off in some way. I have a bright circle artifact in the middle of the image and some striping throughout. Try as I might to understand it, I couldn't discern how normalization was done in the rtksart application. So, this is the method I used:

  *
Create an image of 1s of the size of the final (SART reconstructed) image.
  *
Forward project through this image of 1s
  *
Back project through the resulting forward projection
  *
In the normalization step in the MCSART process detailed above, I simply divide by this resulting back projection.

Knowing all of that, any idea what my issue might be leading to my artifacts? Ultimately, I know it would be more ideal if I just altered the rtksart application itself to include motion compensation, and then I'd just be using the built-in normalization that clearly works, but I find my abilities lacking when I attempt to do this... So instead I am just seeking to understand how that application implements normalization, so that I can use a similar normalization in my algorithm!

I greatly appreciate any help provided!

Best,
R. Andosca
GSR
UCLA Health
