Overview

inTag, CMRSegTools and CMRDiffTools are a set of plug-ings for the OsiriX (Horos) DICOM viewer. These tools have been designed to exploit OsiriX intuitive navigation and interactive visualisation functionalities for the analysis of cardiac MR images. Each plug-ing implements a well-defined workflow and novel interaction techniques in order to simplify and streamline analysis tasks.

inTag has been developed in order to compute and interact with myocardial strain analysis from tagged MR sequences. The user is guided by the program into five steps: specify input data settings (i.e. tag orientation, tag spacing), select a region of interest (ROI), compute motion fields (based on the SinMod method [ARTS-10]), compute the endocardium and epicardium contours (based on the dynamic deformable elastic template [SCHA-10]), compute and display analysis strain graphs (i.e. principal strains, circumferential and radial deformations, among others).In the next inTag release, the user may interactively adjust myocardium contours for better results and also may overlap reference graphs (i.e. normal strain values), in order to compare and analyse its current study against statistical information. The statistical references are being made based on contributions of the inTag users community.

inTag
inTag GUI - Fusion image and strains plots.

CMRSegTools is designed to ease cardiac and region segmentation of delayed-enhancement images for infarct sizing but also of parametric maps (T1, T2). As a first step, the user is assisted by the program to define the myocardium and compute the endocardium and epicardium contours in 2D or 3D (based on B-spline explicit active surfaces [BARB-12a]). Then, interactive segmentation methods are available: standard mean ± xSD, 2D- or 3D- full-width at half-maximum (FWHM) or more advanced such as Gaussian Mixture Model (GMM), and Hsu method.

CMRSegTools
CMRSegTools - Graphical User Interface.

CMRDiffTools is the most recent plug-in implemented to assist users in the extraction of information from cardiac diffusion data: mean diffusivity, diffusion anisotropy indices, fiber tracking, etc.

CMRDiffTools

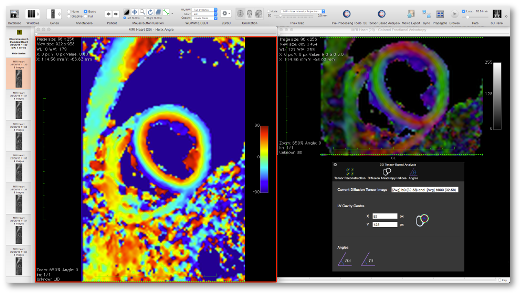

CMRDiffTools GUI - Helix angle and coloured FA images.

References

[SCHA-10] J. Schaerer, C. Casta, J. Pousin, and P. Clarysse, "A dynamic elastic model for segmentation and tracking of the heart in MR image sequences", Medical Image Analysis, vol. 14, no. 6, pp. 738-749, 2010.

[ARTS-10] T. Arts, F. W. Prinzen, T. Delhaas, J. R. Milles, A. C. Rossi, and P. Clarysse, "Mapping Displacement and Deformation of the Heart With Local Sine-Wave Modeling", IEEE Transactions on Medical Imaging, vol. 29, no. 5, pp. 1114-1123, 2010.

[BARB-12a] Barbosa, D., Dietenbeck, T., Schaerer, J., D'hooge, J., Friboulet, D., Bernard, O., "B-Spline Explicit Active Surfaces: An Efficient Framework for Real-Time 3-D Region-Based Segmentation", IEEE Transactions on Image Processing, vol.21, no.1, pp.241,251, Jan. 2012.

R&D Team at CREATIS

Pierre CROISILLE Chairman Department of Radiology at CHU Saint-Etienne - Université Jean-Monnet. Deputy Director at CREATIS.
Magalie VIALLON MR physicist at Hopital Universitaire de Genève, University of Geneva and CHU Saint-Etienne.
Patrick CLARYSSE Research Scientist - Centre national de la recherche scientifique (CNRS). Leader of the team 1 at CREATIS.
William A. ROMERO R. Research Engineer.
